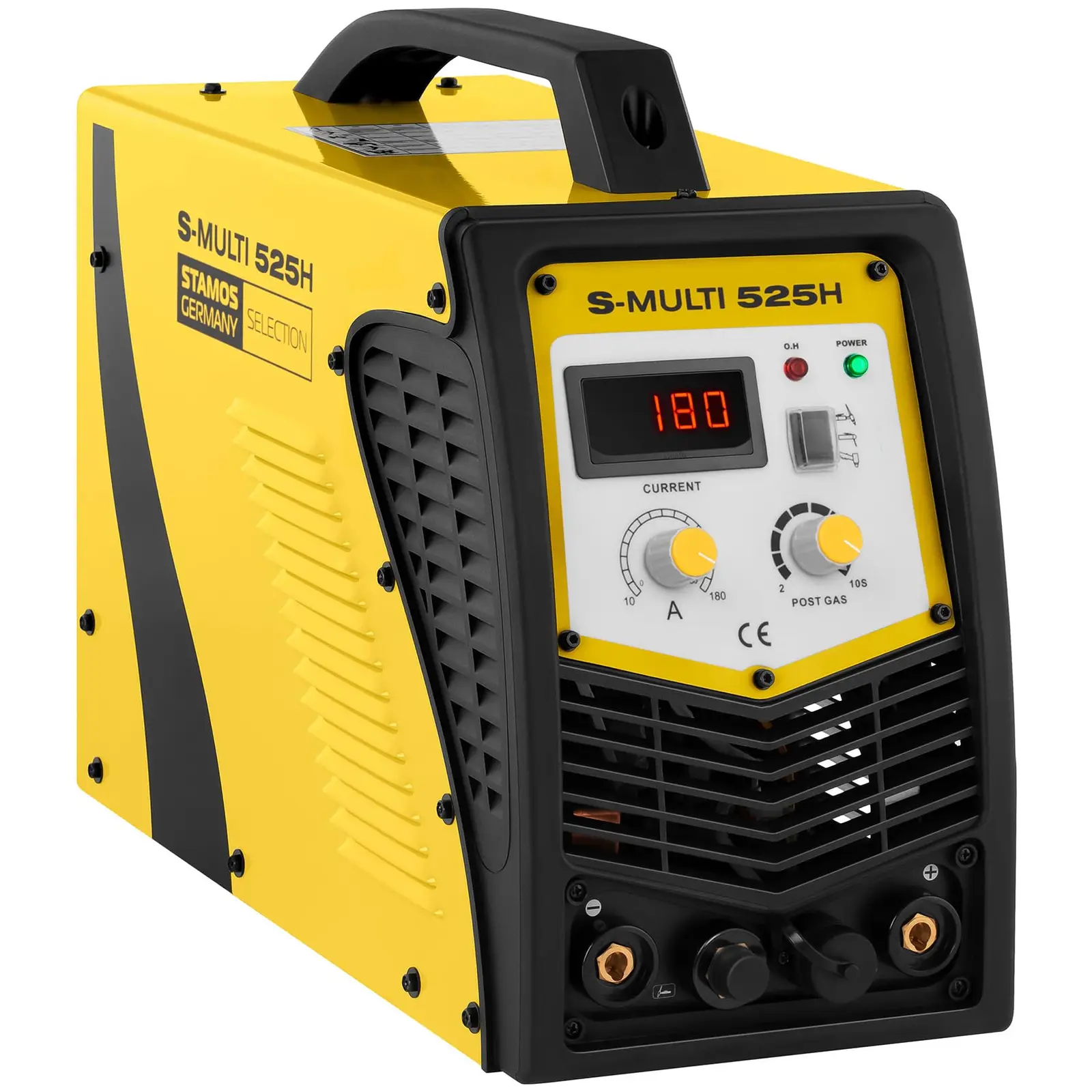

Multifunction device S-MULTI 525H
Description
Multifunction deviceS-MULTI 525H
Multifunction device Stamos Selection S-MULTI 525H is a high performance device for professional use, both in production and trade.
Welding multifunctional S-MULTI 525H allows TIG DC and MMA welding and plasma arc cutting. In non-contact mode was used TIG arc ignition (HF), thereby reducing the risk of contamination weld tungsten electrode, whereas in MMA used auxiliary Hot Start Anti Stick and ARC-Force. They offer easy start welding and stable continued. Plasma arc for quick and precise cutting.
Adjust welding current is carried out smoothly with the knob with a clear scale. Technology used inverter based on MOSFET allows for high output power welders, with its low weight and dimensions.
Comfort during operation provides the use of gas solenoid valve, which removes the requirement for holders of valve. It allows you to keep programmable gas flow after welding. Use of functionality POST TIME defines time gas supply after power electric arc. This option is used to cool weld and protect it from oxidation.
Stamos Device Selection S-MULTI 525H was made on the basis of stringent European standards and passed examination for compliance with CE. Production is carried out in compliance of RoHS Directive. This ensures safety of use and low emissions.
Device sent together with necessary accessories, which facilitates work while using machine. Includes welders Stamos Selection S-MULTI 525H is:

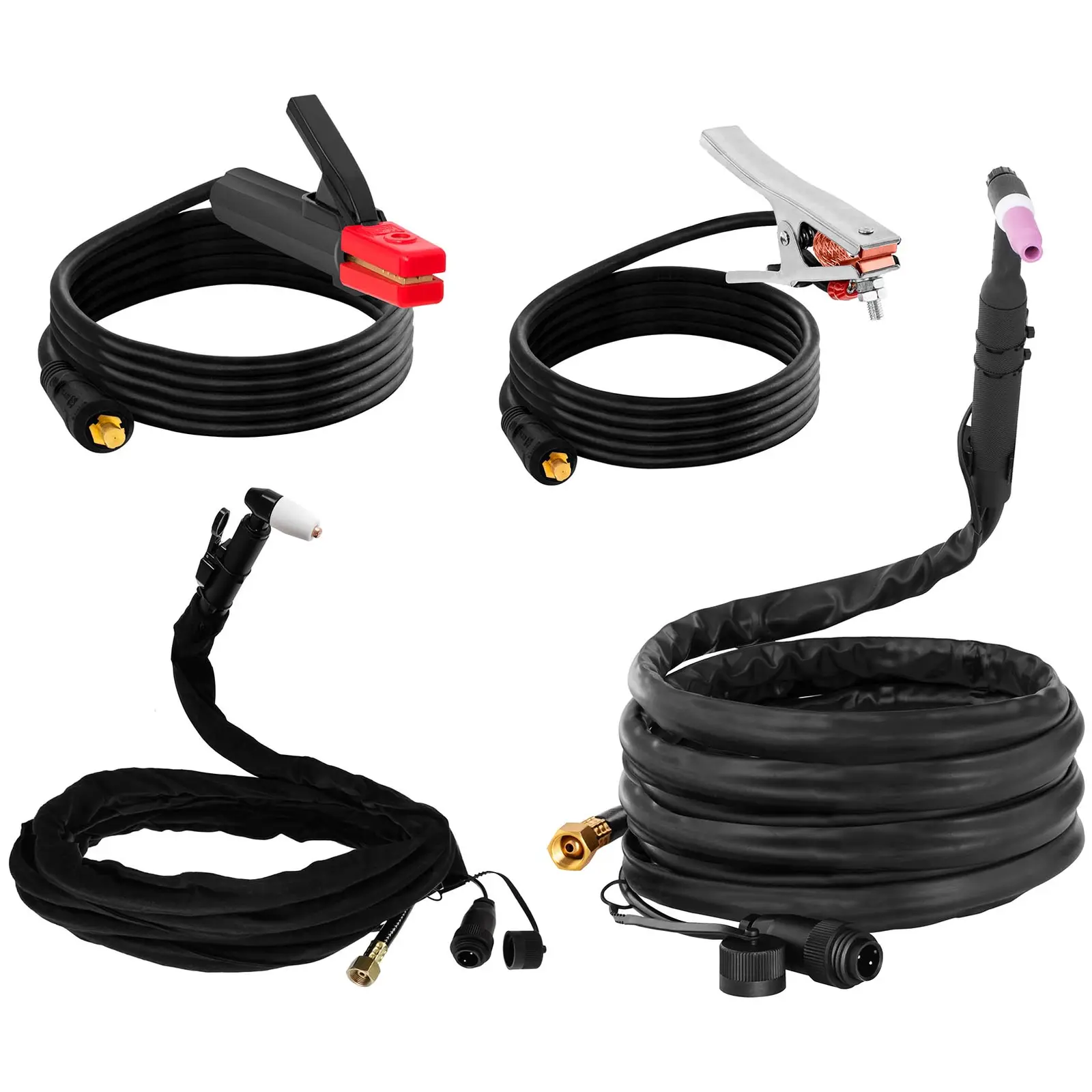

TIG torch 4.8 m
MMA welding torch 4 m
Handle for plasma cutting 4.1 m
Cable to a common terminal 4 m

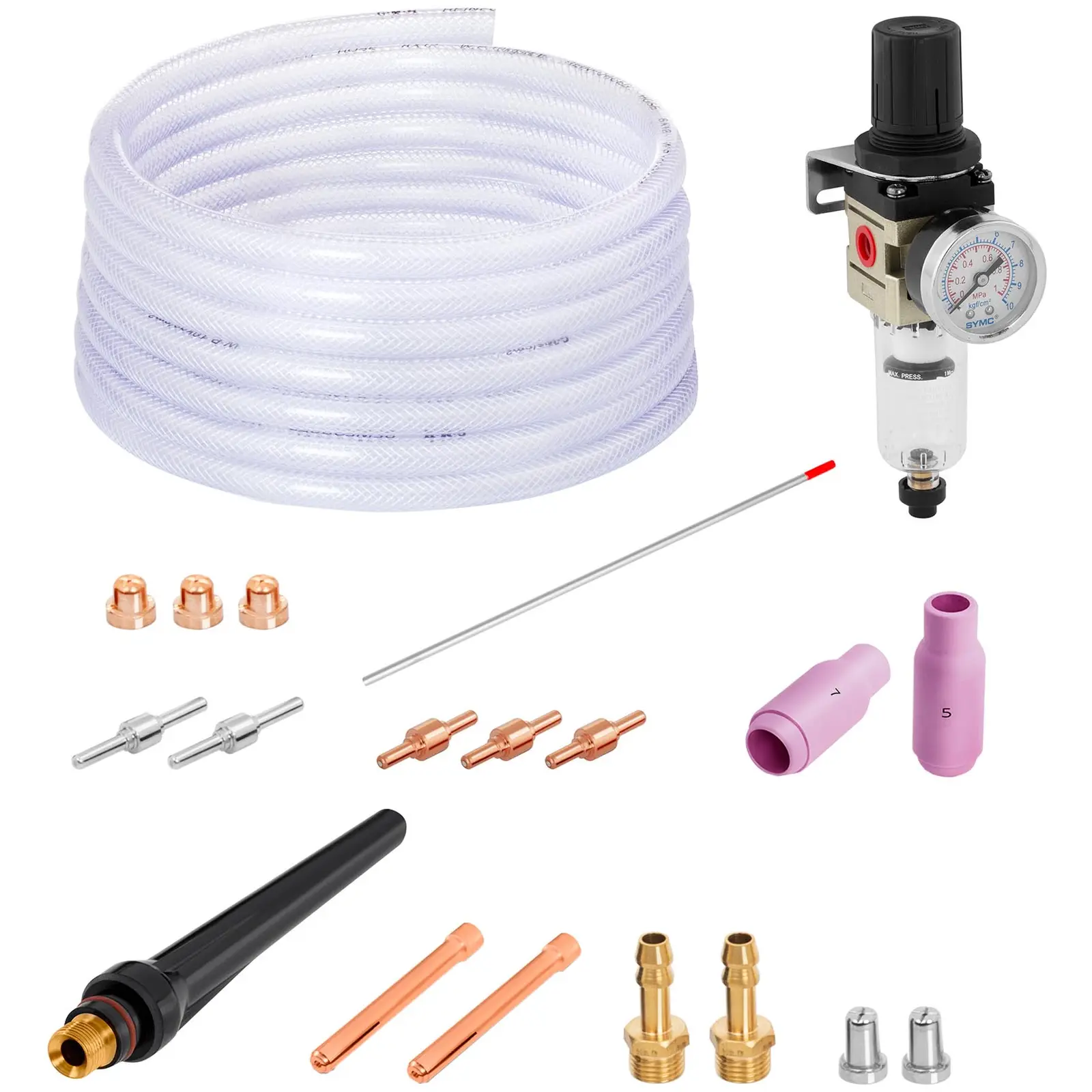

Consumable parts (porcelain nozzles, collets, long cork)
|
Model |
S-Multi 525H |
||
|
Condition |
New |
||
|
Network frequency (Hz) |
50/60 |
||
|
|
WIG |
MMA |
CUT |
|
Ignition |
HF |
Contact |
HF |
|
Open circuit voltage (V) |
67 |
69 |
250 |
|
Input voltage (A) |
25 |
30 |
32 |
|
Welding current (A) |
10-180 |
10-180 |
10-50 |
|
Compressor connection (bar) |
- |
- |
4,5 |
|
Gas flow (l/min) |
2-5 |
- |
80-200 |
|
Electrode diameter max. |
1-3,2mm |
1-4mm |
1,2mm |
|
Cutting performance at max. 50A |
- |
- |
1-16mm |
|
Input voltage |
230V, 1-Phase |
||
|
Power factor (COSf) |
0,93 |
||
|
Performance (%) |
85 |
||
|
Protection class |
IP23 |
||
|
Dimension (LxBxH) |
50 x 37 x 22 cm |
||
|
Weight |
18 kg |
||
|
Shipping dimension (LxBxH) |
60 x 44 x 45 cm |
||
|
Shipping weight |
22 kg |
||
 |
MOSFETs - provides the highest performance in a compact size and weight of device. |
  |
CERTIFICATES - device was made according to stringent European standards and passed examination for compliance with CE and RoHS. This ensures long life and high quality equipment. |
 |
Non-contact HF arc ignition - defines contactless electric arc ignition in TIG mode using high frequency. This creates a clean starting point of the weld |
 |
ANTI-STICK = This feature prevents electrode burn-out through automatic reduction of the current. |
 |
HOT-START = The hot-start function will increase the tension at the start automatically so that even problematic electrodes ignite. After ignition the device automatically switches back to the preset voltage. |
 |
ARC FORCE - Function stabilizing arc when changing its length. |
 |
DOWN SLOPE - slope down - time in which output current drops from welding current, until the end of work. |
 |
VENTILATORS - very powerful fans provide optimal heat dissipation during welding work. |
 |
EARTH - back of each welder is a screw marked with the earth. Before starting device must be grounded welder using a cable whose cross can not be smaller than 6 mm. |
 |

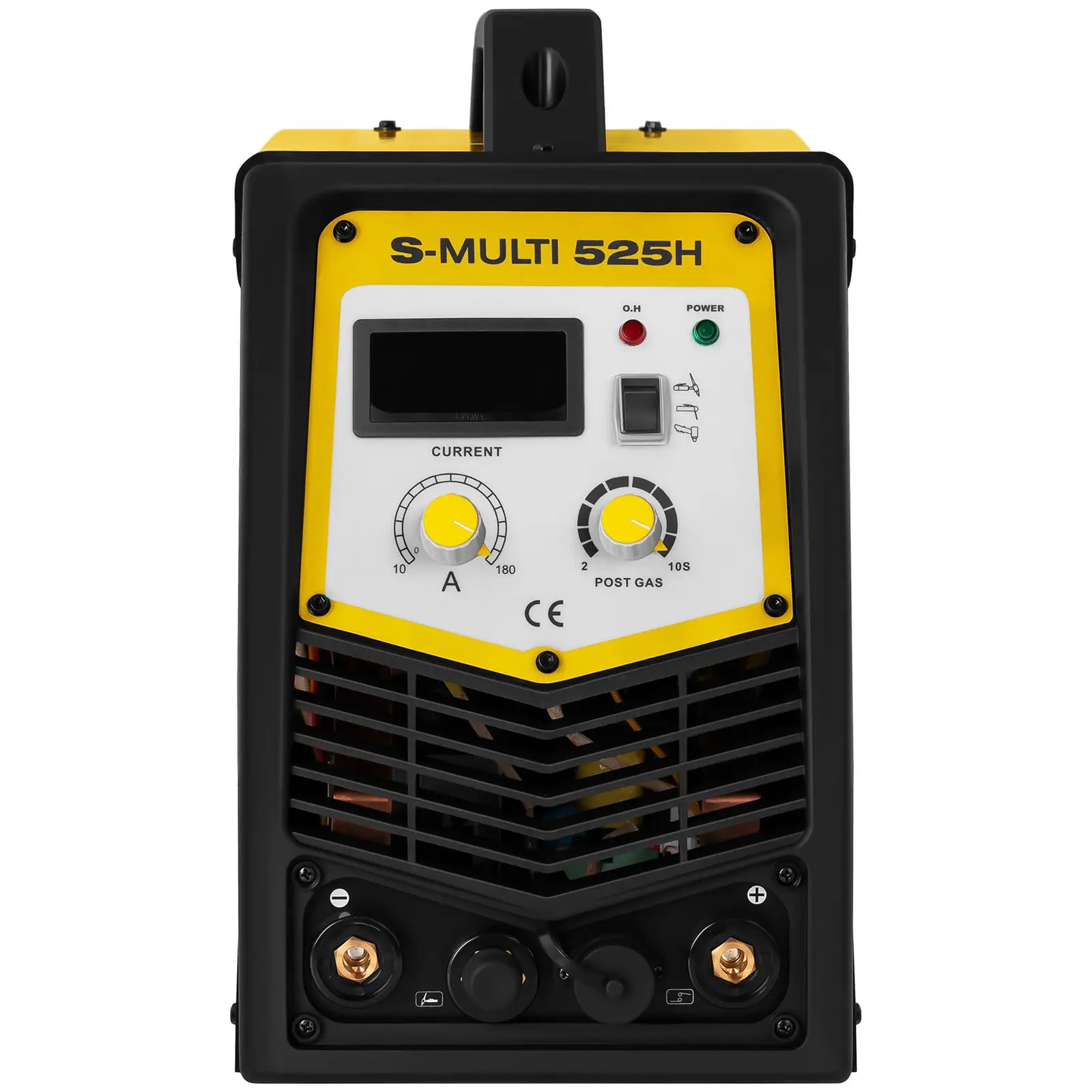

ON / OFF SWITCH |
 |
WIG / TIG - TIG welding arc is formed between the tungsten electrode and the base material. To protect tungsten electrode and weld is used inert gases (usually argon). TIG welding can be used for all weldable metals. Choosing current type, polarization, and a protective gas depending on type of welded metal. |
 |
Plasma arc cutting |
 |

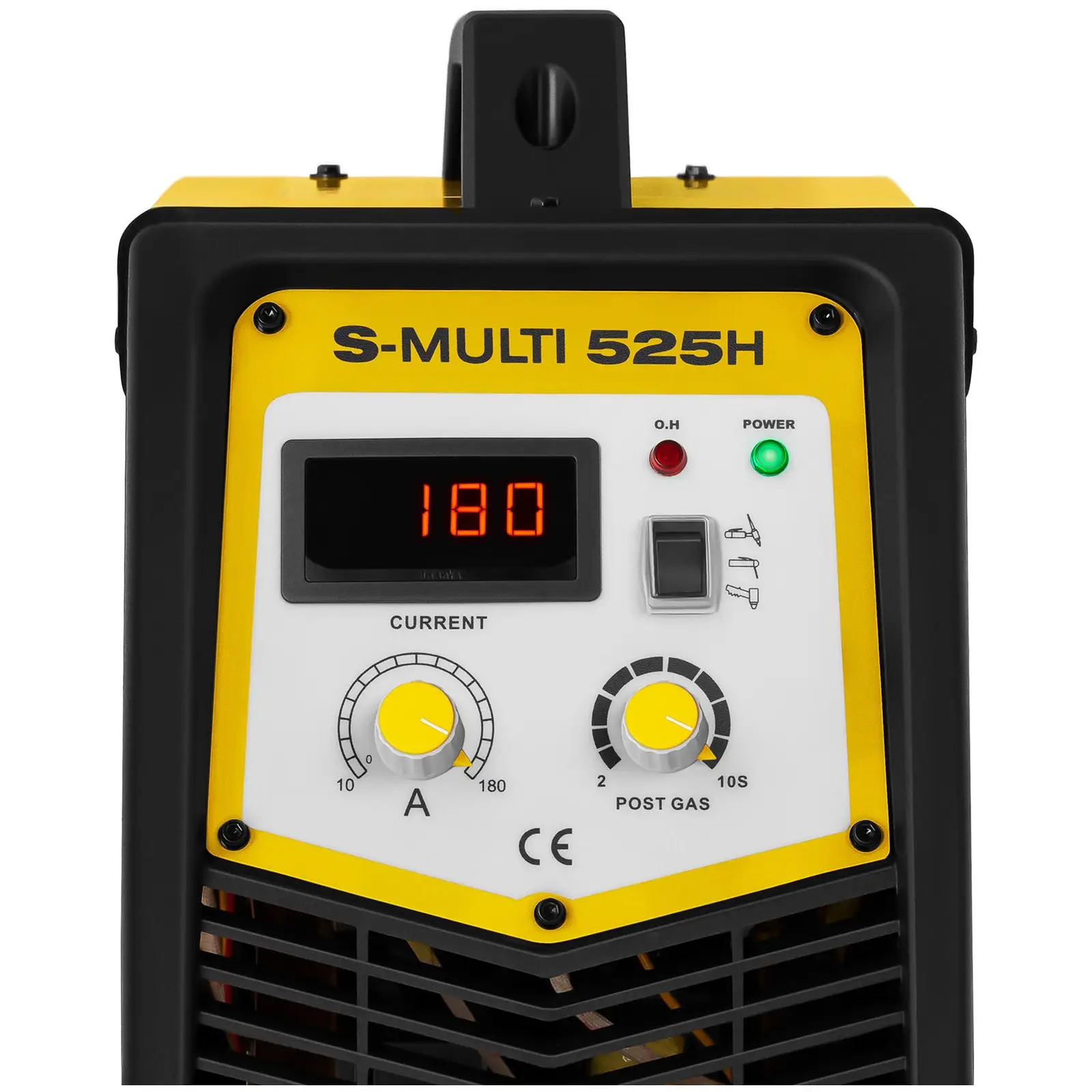

CURRENT - regulacja prądu spawania/cięcie. |
 |
CONNECTOR WIRE MMA |
 |
CONNECTOR LEAD WEIGHT |
 |
OVERLOAD / FAILURE - light comes on in the event of two situations: |
 |
GAS CONNECTION - connect machine to gas, and its flow is controlled by a solenoid valve activated by pressing on the handle. During plasma arc cutting equipment should be connected to compressed air. |
 |
VOLTAGE SUPPLY Device is powered from a single phase. |
 |
POST TIME - time gas supply after power electric arc. Function is used for cooling weld and protecting it from oxidation. |
