Mig welder S-MIG 350C Stamos Selection.

MIG-MAG company Stamos Selection, is designed for professional use and combines many ways welding. And offers the durable construction and high reliability operation. Welding current MIG welder MIG-MAG S 350C, a mode MIG MAG adjusted in range of 50 to 350 Amperes.

With the MMA, welder has an adjustable welding current in range of 50 to 330 Amperes. An S-MIG 350C you can quickly and effectively adapt to all conditions. It operates with an output voltage of order 380 V (this unit is supplied without a plug of power!) And combines two welding technology in one device.

This will save time and money necessary to change devices while at the same time flexible and efficient in operation. MIG MAG company Stamos Selection impresses with its intuitive and extremely easy to operate.

Other features welders Stamos Selection:

• Professional welder -MIG-MAG suitable for use as:

  • Inverter MMA 330A
  • Inverter MIG/MAG 350A
• Powerful Ventilators for cooling overheating protection
• Technology bipolar transistor (IGBT)
• Durable powder-coated metal housing
• Mechanically given welding wire
• Protection against overheating

Stamos Selection, uses technology bipolar transistors. Bipolar transistor with an insulated electrode input (Insulated Gate Bipolar Transistor, abbreviated as IGBT)semiconductor structural element is used with increasing success in high-performance electronics, because it combines advantages of bipolar transistor FET.Professional MIG MAG S-MIG 350C company Stamos Selection, has a powder-coated steel casing and welded adjustable welding current from 50 to 350 amps mode MIG MAG almost all suitable for welding materials.

 (device is supplied without a plug for current strength!)

Feature 1: Inverter DC MIG / MAG 350A = function MIG / MAG welding current of 350 Amps.

Advantages of procedure MIG / MAG:

• It is currently the most commonly used feature of welding in industry and trade
• Automated welding under a shielding gas.
• Mechanically given welding wire is used as an additional material. When welding melts in your own arc welding.
• Multitude of applications.

Function 2: Inverter DC MMA - 330A = function MMA welding current up to 300 amps.

• One of the main advantages manual welding power (MMA) is that you do not need an additional protective gas.
• Welding electrode can be relatively easy to learn. It is therefore suitable even for novice welders.

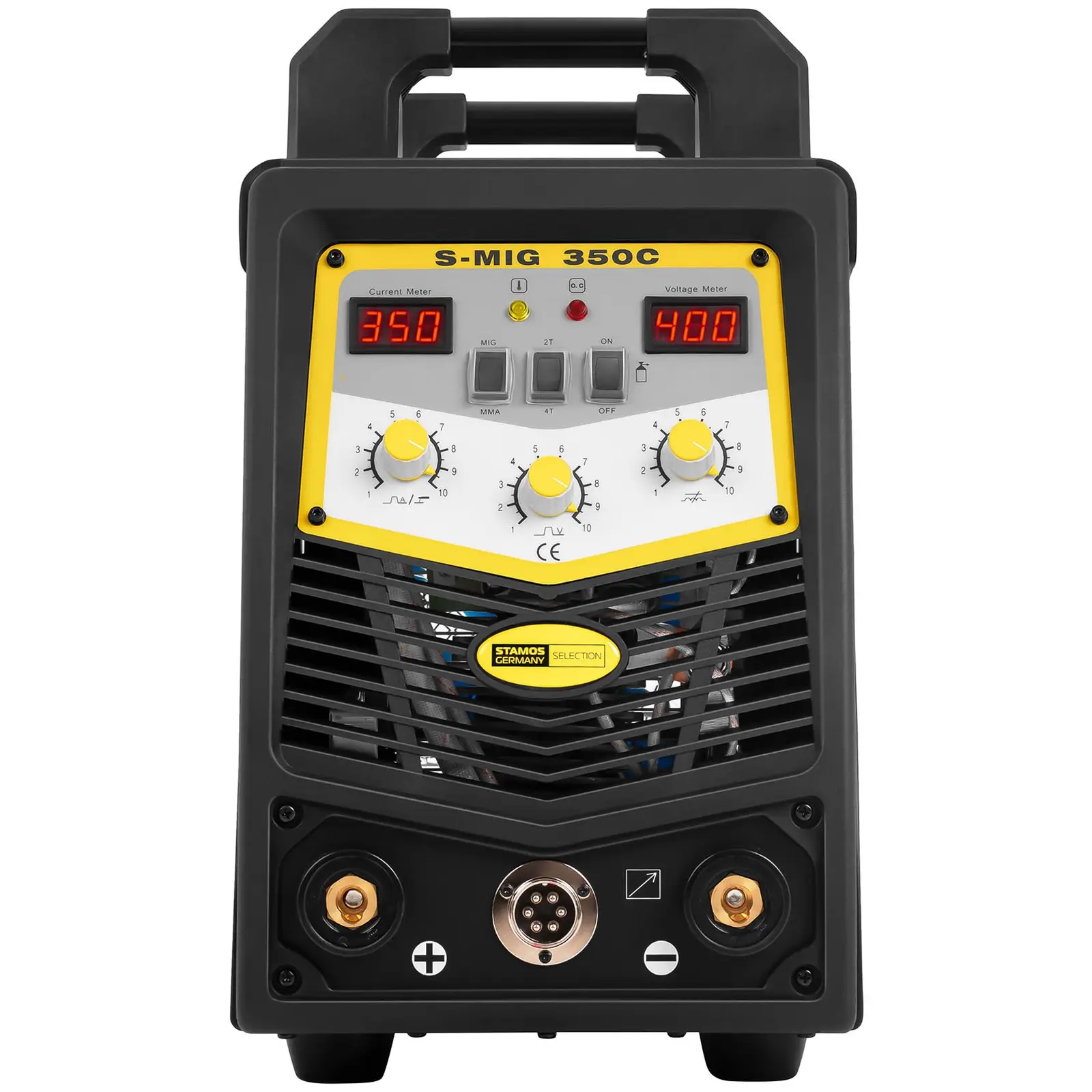

1	Inductance adjustment knob	Setting inductance (effect on the stability of welding, excavation depth and quantity splash)
2	Rotary welding voltage	Setting welding voltage and wire feed speed
3	Current control knob	Setting welding current (including MMA)
4	amperemeter	Indication of welding current
5	Thumb rocker switch functions	Changing mode of MIG and MMA
6	thumb rocker switch 2T / 4T	Change between locking function and its lack of
7	Gas thumb rocker switch	Opening and connection solenoid valve
8	yellow LED	Overheating indicator - no welding current
9	red LED	Defects
10	voltmeter	Welding voltage indicator

1	positive pole	motor cable or of wire feeding MMA
2	controller connection	Connection of wire feeding controller
3	negative pole	Mass cable connection

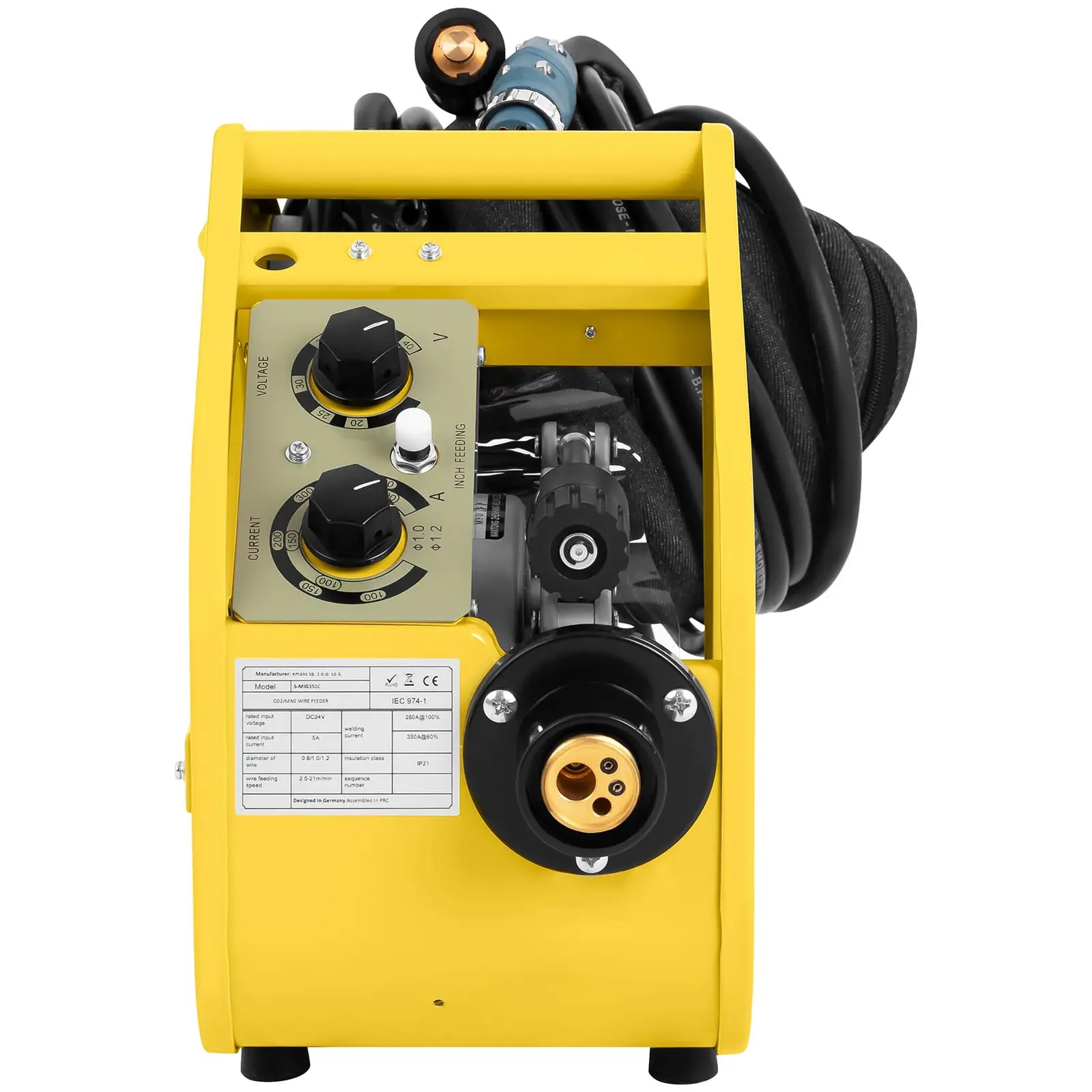

1	connection cable burner	Cable connection burner MIG / MAG
2	Current control knob	Setting welding current
3	Switch of wire feeding	Manual winding wire feed
4	Current control knob	Setting welding voltage and wire feed speed

	IGBTs - Bipolar transistor with an insulated electrode input (Eng: Insulated Gate Bipolar Transistor, abbreviated as IGBT) is a semiconductor structural element used with increasing success in high-performance electronics, because it combines advantages of a bipolar transistor (eg. Good conductivity, high voltage barrier , durability welding) with the advantages of FET transistor (power consuming almost no control). Advantage is also a certain resistance to the short circuit, since the IGBT is limited load current. IGBTs are another step in development of MOSFET technology.
	CURRENT - Device operates on a 3-phase supply (400V +/- 10%).
	GAS PROTECTION - MIG / MAG, you need a shielding gas or active gas.
	VENTILATORS HIGH POWER - High-quality Ventilators provide efficient cooling of unit of heat generated in it during operation.
	ON / OFF switch - high-quality switches low-consumption on and off of machine.
	MIG / MAG - welding protective gas or active.
	MMA - combines most advanced inverter technology for a small after -surface. This makes it possible to weld electrodes to a diameter of 4.2 mm high quality. Thanks to its low weightdevices are ideally suited for assembly applications as well as for heavy work on construction sites. Automatically adjusts ignition energy (both HF and LiftArc) provide excellent welding characteristics.
	INCH WIRE - ENTERING WIRE - after pressing this buttonmachine begins to make wire. This is done until button is released. It is used to make wire and wire speed control input.
	LED INDICATORS - 2 indicators show current value and welding voltage.
	LED overload / fault - Light is lights up in the following two situations: a) if machine is down and can not be operated, and b) if machine exceeds standard time workload, turns on the protective mode the engine stops and stops to cool down the overheating and again take control of the temperature. For this reason, machine stops. During this event the red emergency lamp on the front of the chassis. You do not have time to pull the power cord. In order to cool down machineventilator can continue to operate. When machine reaches normal operating temperature, red light goes off and machine can be restarted.
	2T / 4T - Select function "4T / 2T" divides procedure MIG mode "2T" (without self-locking) and mode '4T' (with automatic locking) "2T" = means starting welding procedure after pressing the torch switch and turn off welding procedure after switch is released. "4T" = means producing output current arc ignition after first press of the torch switch, and current setting on default value of release welding torch switch. After completion welding Press once again to switch burner, welding current will become weaker until optimum power arc. Machine cease supplying the output current after second burner switch is released.
	CONTROL spatter - CONTROL CREATING TRAILS - creating trails you can be controlled by turning  knob.
	Connection ground terminal - ground terminal is connected here, other end attach to workpiece.
	EARTH - back of each welderis screw and determination to make ground. Before starting welding, it is necessary to call a shell welder using a cable cut which may not be less than 6 mm of ground to exclude potential possibility of an electrical fault.
	Connection gas / air
