Stamos Germany S-MIG 250
Description

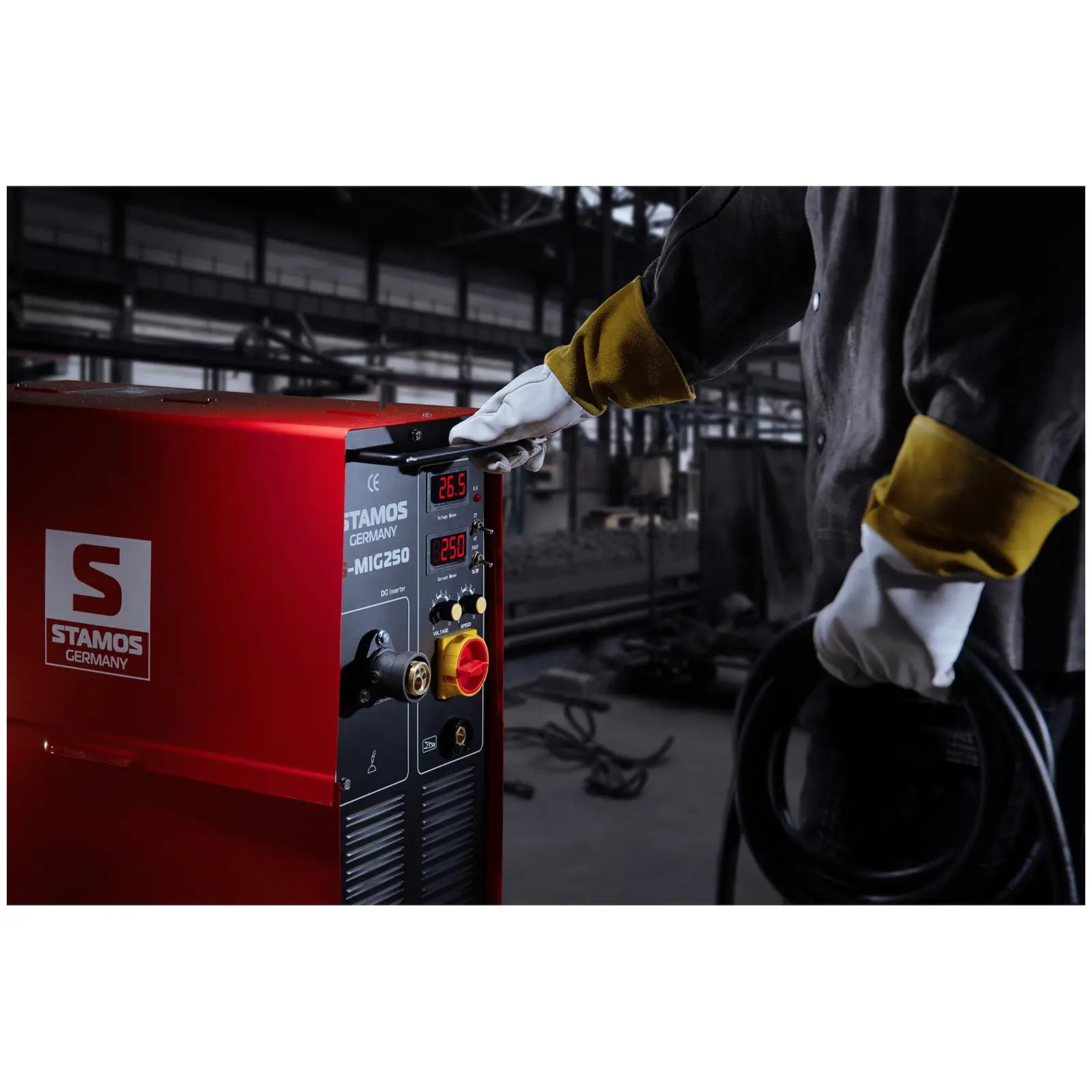

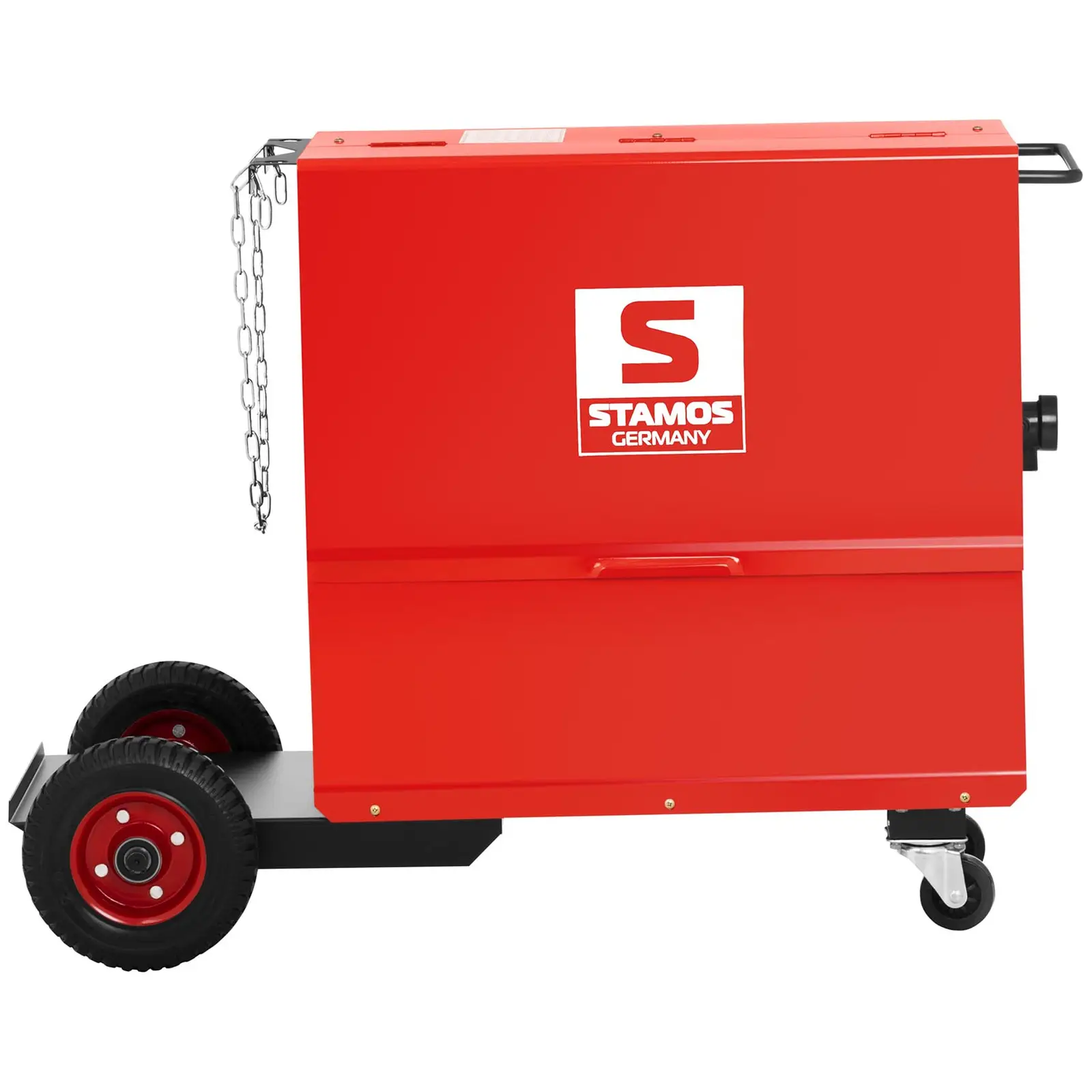

Mig welder Stamos Germany S-MIG 250
Stamos Germany Welding S-MIG 250 is a device by Stamos Welding Group with Basic product line that combines superior performance and affordable for every user price.
Inverter welder particularly well suited for professional jobs in manufacturing, services lock smith-welding plants, commercial and automotive workshops. It allows you to perform simple steel structures, machining gates and fences.
Mig allows MIG and MAG. When you connect non-alloy structural steel, low-alloy and high-MAG mode is used. In contrast to MIG ideally suited for welding stainless steel, copper, magnesium and other non-ferrous metals. After turning rollers and the guide Teflon is also possible welding elements made of aluminum.
MIG welder S-250 allows welding wire with a diameter of 0.8 mm, 1.0 mm and 1.2 mm. Device is equipped with 4-wheel feeder, so that wire is administered with greater precision and constant speed. Additionally, inverter welder has a smooth adjustment of welding voltage and wire feed speed. They provide convenience and comfort during material processing.
Euro using slot can connect welders Stamos Germany with ergonomic handle welding, which increases comfort during use. Welding parameters, current and voltage are displayed on large, clear display, allowing reading of values is possible in all conditions.
Welding is sold with all necessary parts for fast and efficient machining of metal parts. In our shop you can purchase their consumables offered machine. Using genuine parts STAMOS welding devices provide long-term operation. Included with welder Stamos Germany S-MIG 250 receive:
- Power cord
- Torch MIG / MAG gas-cooled 4m
- Cable to a common terminal 3.5 m
- Set of rollers for wire 0.8 mm, 1 mm, 1.2 mm
- Replacement shells
- current ends
Model | S-MIG 250 |
Catalog no. | 2021 |
Article | New |
Nominal input voltage | 400 V, 3-Pharse |
frequency Network | 50 / 60 Hz |
Rated input current | 8,4 A |
Maximum input current
|
12 A |
Rated Output Power | 5,4 kVA |
Maximum Output Power | 7,8 kVA |
Load voltage MMA | 45 V |
welding current | 50 - 250 A |
Rated duty cycle | 60 % |
Welding current duty cycle of 100% | 194 A |
Welding current duty cycle of 80% | 250 A |
Solenoid gas | Yes |
Diameter of wire MIG / MAG | 0,8 - 1,2 mm |
Type wire | full |
Max diameter wire spool | 300 mm |
Switch mode change 2 and 4 TAKT | Yes |
MIG / MAG handle | 4 m |
Ground cable
|
3,5 m |
Power cord | 1,2 m |
cooling housing |
ventilator
|
Method of cooling holder
|
air |
power factor | 0,93 |
Efficiency (in nominal terms) | ≥0,85 |
isolation class | F |
level of protection | IP21 |
construction according to | EN 60974-1; EN 60974-10 |
Compliance with EG
|
CE |
Dimensions (LxWxH) | 29 x 86 x 67,5 cm |
Weight | 45,8 kg |
Shipping dimensions (LxWxH) | 46 x 95 x 74 cm |
shipping weight | 57,5 kg |
