Stamos welder MIG Selection S-250C

Availability: out of stock
Price: €803.52 803.52
Net price: €653.27
quantity szt.

product unavailable

add to wish list

Description

Stamos welder MIG Selection S-250C is a high quality device, which rival the parameters of the world leading manufacturers of welding equipment. Against the background of competing devices, MIG welder S-250C stands a small price compared to its capabilities. Long and trouble-free use of welding provides design meets the stringent German standards.

In welder uses advanced IGBT technology, which provides high power and efficiency, while maintaining the light weight of the device. Multifunctional welding provides the ability to support two methods of welding: MIG and MAG, which allow you to weld steel, stainless steel and non-ferrous metals min. aluminum. What will distinguish MIG welder S-250C is able to switch MMA welding method.

Possibility of selecting between 2T and 4T allows you to customize machine to work.

Comfort and convenience during operation provides a 5-meter cable connecting the feeder with a source. This makes it possible of working with large structures without the need to transfer the power source. Large and easy to read display provides a trouble-free performance, even in darkened rooms. In case of exceeding standard cycle warning light comes on and starts overheating protection mode.

MIG Welder S-250C company Stamos Germany has compatibility with European standards CE and RoHS, and constant control of German technicians ensures a high quality device. We are sure of good quality of our equipment.

Model

S-MIG 250C

Condition

NEW

Input voltage

380 V, 3-Phases

Functions

MIG

MMA

Input current

12.8 A

12.2 A

Performance capacity

8.4 kVA

8 kVA

Rated output current

50 - 250 A

20 - 220 A

Output voltage

16.5 - 26.5 V

20.8 - 28.8 V

Loading duration

60 %

Performance factor

0.93

Efficiency

85 %

Wire feed unit

Separately

Wire feed speed

2.5 - 16 m/Min

Overrun time

1 s

Diameter of the welding rod tray

270 mm

Welding rod diameter

0.8 / 1.0 mm

Protection class

IP23

Insulation class

F

Dimension (LxWxH)

52 x 37 x 22 cm

Weight

17,5 kg

Shipping dimension (LxWxH)

65 x 37,5 x 45 cm

Shipping weight

19,6 kg



IGBT - transistor Insulated Gate Bipolar is a component of half a guide, which is being increasingly used in electrical technology because it combines the advantages of two types of transistors. Easy control field effect transistors high breakdown voltage and switching speed of bipolar transistors. An advantage of the short-circuit resistance, since IGBT is limited then the current flow. IGBTs are more recent continuation of MOSFET technology.

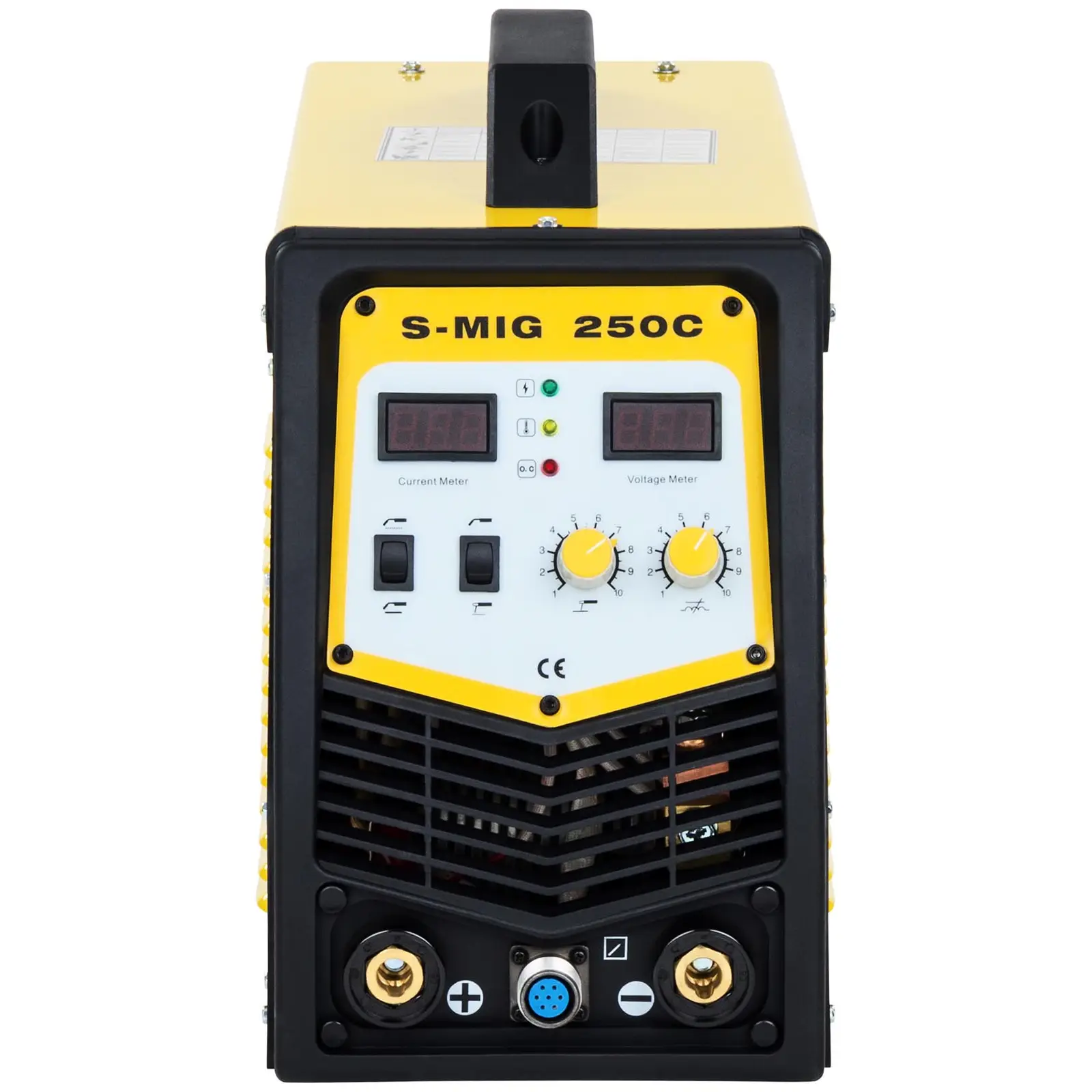

1.  Control choke - knob to adjust the output coil inductance. Changing inductance reduces chipping.
2.

REGULATION WELDING CURRENT - knob is adjusted welding current MMA mode.

3.

SELECT OPERATION MIG / MMA

4.

CHOICE BETWEENWELDING POINTS, ANDCONTINUOUS

5.

LED DISPLAY POWER METER - Displays welding current and parameter codes.

6.

LIGHT POWER

7.

OVERLOAD - LED lights in case, if welder exceeded standard cycle and has been running mode to protect it from overheating. In this mode, machine should be left with the power on. If the light goes out, it means that the device cooling down to temperature operation and can be re-used

8.

TROUBLE - LED indicates the failure of the machine. Work will be interrupted until fault has been rectified.

9.

LED DISPLAY input voltage - displays voltage welding.



  1. Positive pole - power supply wire feeder cable or MMA.
  2. CONTROL CONNECTION - connection wire feeder control.
  3. Negative pole - cable connection of mass.



1.

WIRE FEED SWITCH - without connecting wire feed welding current.

2.

SWITCH 2T / 4T - switching between welding without support (2T), and latched welding (4T).

3.

WIRE FEED KNOB - sets wire feed speed.
4.

TENSIONKNOB- settingwelding voltage.

5.

HANDLE CONNECTION - connection MIG / MAG EURO.
