Description
Stamos Germany Welding SMMA - 180PI

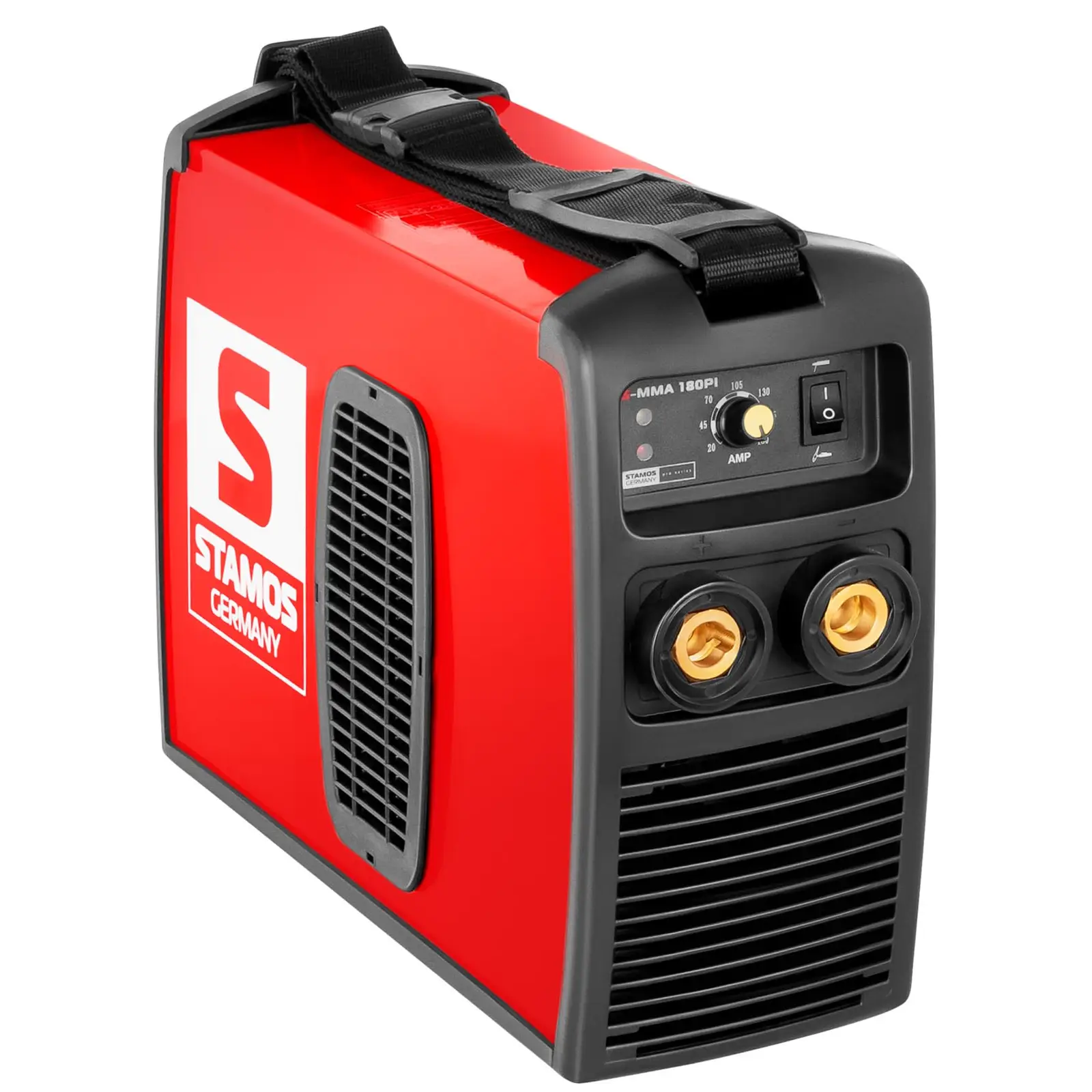

Stamos Germany Welding S-MMA 180PI is a high quality welding rectifier. It combines precise welding properties and a price that is affordable for every welder.
IGBT inverter technology made it possible to reduce energy consumption, so that the machine is characterized by high output parameters while maintaining a small size. IGBT is a new generation MOSFET.
MMA welder will check nearly all operating conditions, which is why this method is considered to be universal. Lets you work with steel structures in the shipbuilding industry in the welding industry and manufacturing. Very often it is used in the installation area at the construction site, but also finds its application in small repair shops.
MMA welding mode is assisted by 3 auxiliary functions: Hot Start Anti Stick and ARC-Force. Their most important task is to facilitate a welding process, and during operation thereof to stabilize. These options and an intuitive control panel facilitate work, welder S-MMA 180PI is also often used by novice welders.
Machine can also be operated in TIG.DC. Just equip it with the handle of gas valve. During welding, tungsten electrode arc ignition takes place by friction. In addition, adjustment of the welding current is fluid, thereby increasing comfort and convenience.

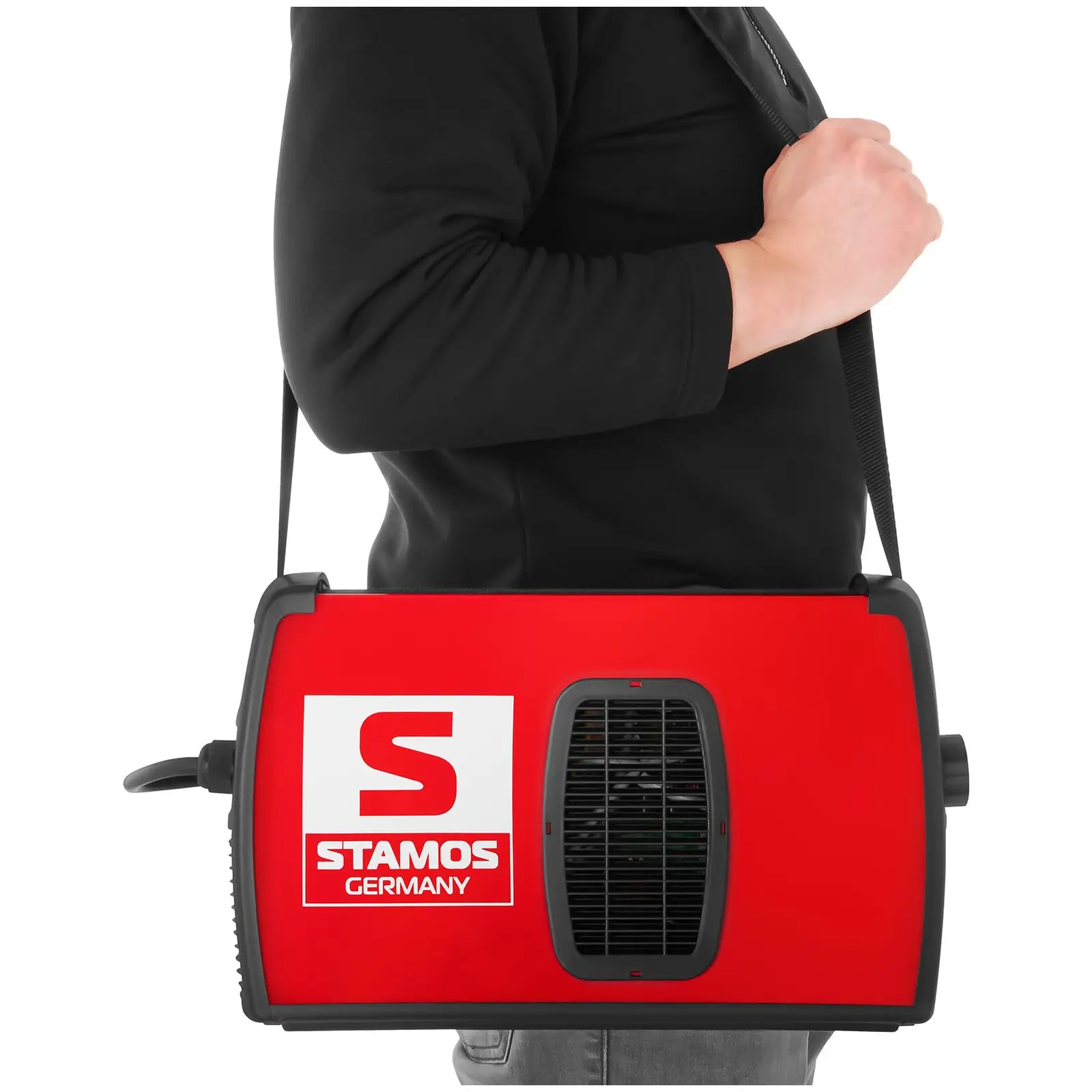

Device is characterized by small dimensions and weight. Compact and durable nature strip, convenient transportation of the machine. Welder ideally suited to working at heights.
Machine was made according with German quality standards, so that is characterized by high strength and durability. We are sure of the highest quality of our equipment, so at the welder Stamos Germany S-MMA 180PI give long-term guarantees.
Stamos Germany Welding S-MMA 180PI is sold with the necessary wiring for the treatment of MMA. In addition, the set includes welding mask and brush. Full scope of delivery includes:
- Welder inverter with a power cord
- MMA Torch 3.6 m
- Cable a common terminal 3,6 m
- Welding Mask
- Brush / Hammer
|
Article |
SMMA-180PI |
|
Condition |
New |
|
AC frequency (Hz) |
50/60 |
|
Input voltage (V) |
230 V ; 1-Phase |
|
Power usage |
7 kVA |
|
Open circuit voltage (V) |
56 |
|
Adjustable welding current (A) |
20-180 |
|
Duty cycle (%) |
80% |
|
For electrode |
1.6 – 4.0 mm |
|
Measurements (LxWxH) |
39 x 25 x 12 cm |
|
Weight |
5,6 kg |
|
Shipping Measurements (LxWxH) |
52 x 32 x 23 cm |
|
Shipping Weight |
10,7 kg |
|
Protection class |
IP21 |
|
Insulation class |
B |
 |
IGBT - transistor Insulated Gate Bipolar is a component of half a guide, which is being increasingly used in electrical technology because it combines the advantages of two types of transistors. Easy control field effect transistors high breakdown voltage and switching speed of bipolar transistors. An advantage of the short-circuit resistance, since IGBT is limited then the current flow. IGBTs are more recent continuation of MOSFET technology. |
  |
CERTIFICATES - S-MMA welder 200PI was made according to stringent European standards and passed the examination for compliance with CE and RoHS. This ensures long life and high quality equipment. |
 |
ANTI STICK - This function prevents heating of the electrode in the case of sticking it to the material, because the current is automatically reduced. |
 |
HOT START - This function makes it easier to initiate electric arc, by temporarily increasing the welding current at the moment of ignition of electric arc. After ignition welding current returns to the set value. |
 |
ARC-FORCE - function stabilizing the electric arc when changing its length. |
 |
VENTILATORS - high-performance ventilators provide optimal heat dissipation during welding work. |
 |
EARTH - on the back of each welder is marked with grounding screw. Before starting the machine must be grounded using a cable whose cross must not be less than 6 mm. |
 |

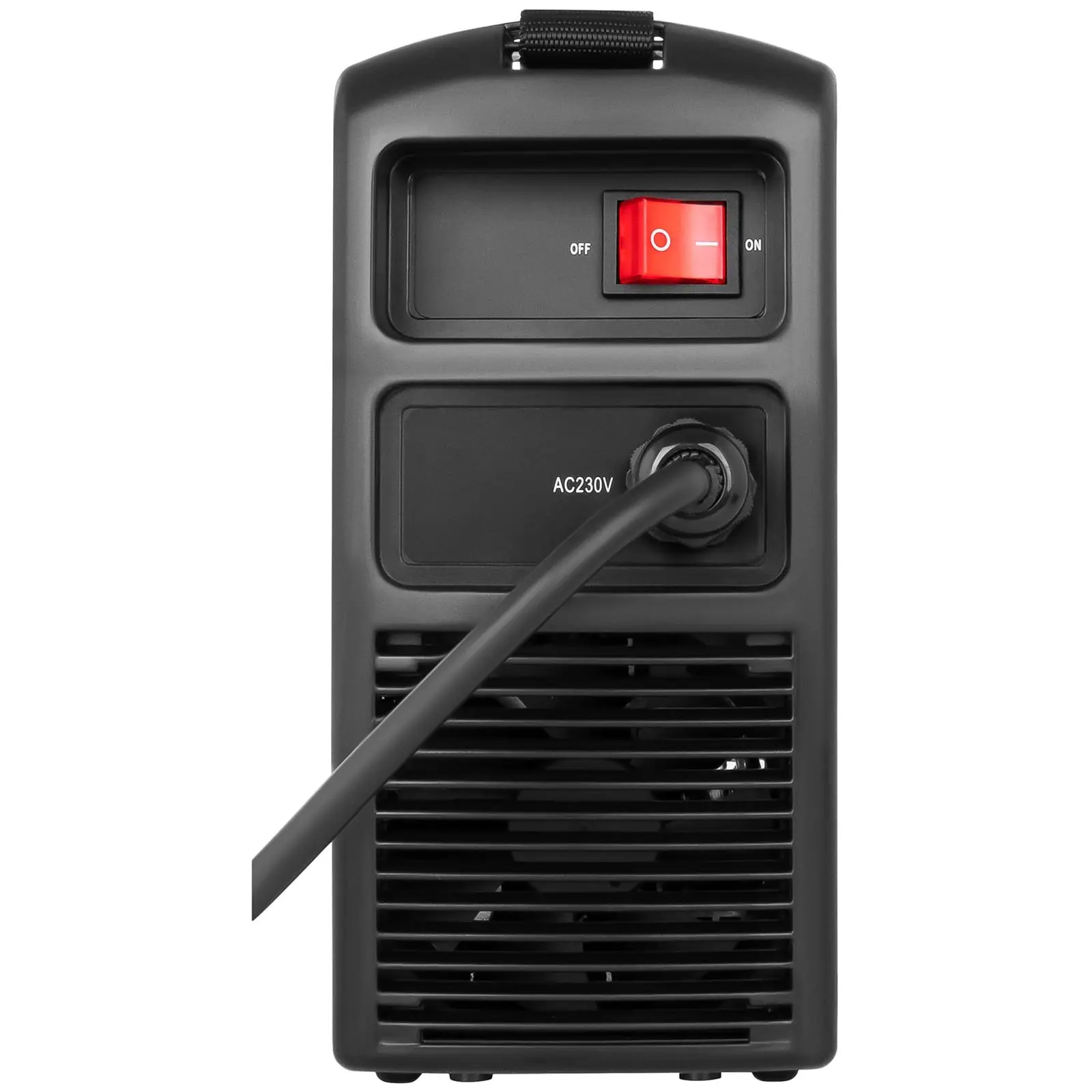

ON / OFF SWITCH |
 |
WIG / TIG welding - while the TIG / WIG electric arc formed between the tungsten electrode and the work piece. To protect the tungsten electrode and the weld used inert gases (usually argon). The treatment of TIG can be used for all weldable metals. Selection of current type, polarization, and a protective gas depending on the type of welded metal. |
 |

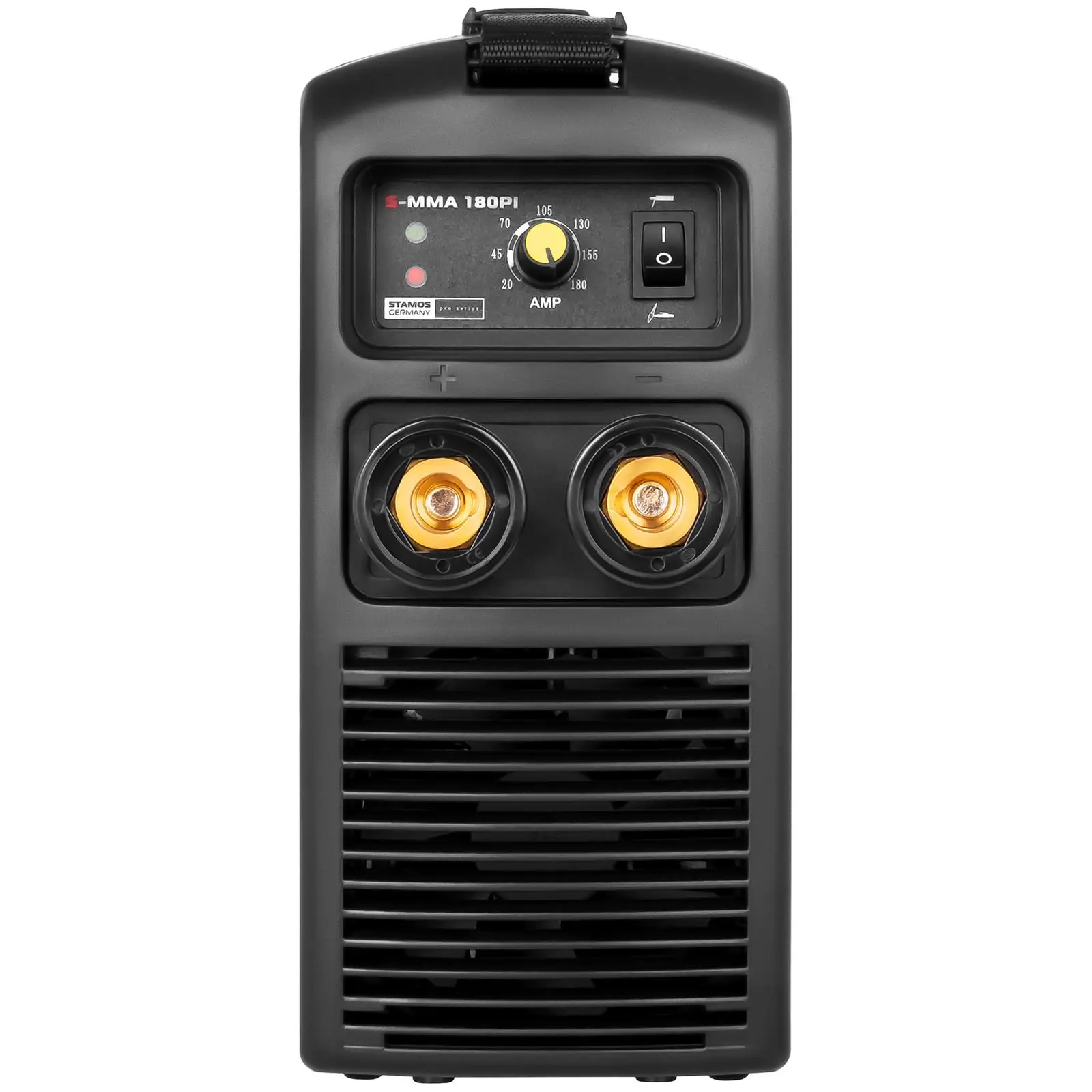

CURRENT-maincurrent adjustment |
 |
CONNECTOR WIRE MMA |
 |
OVERLOAD / FAILURE - light comes on in event of two situations: |
 |
GAS CONNECTION - connect gas to device, and its flow-controlled electrovalve must start button on the handle. |
 |
VOLTAGE SUPPLY - welder is supplied from one phase (230 V +/- 10%). |
 |
CONNECTORLEADWEIGHT |
