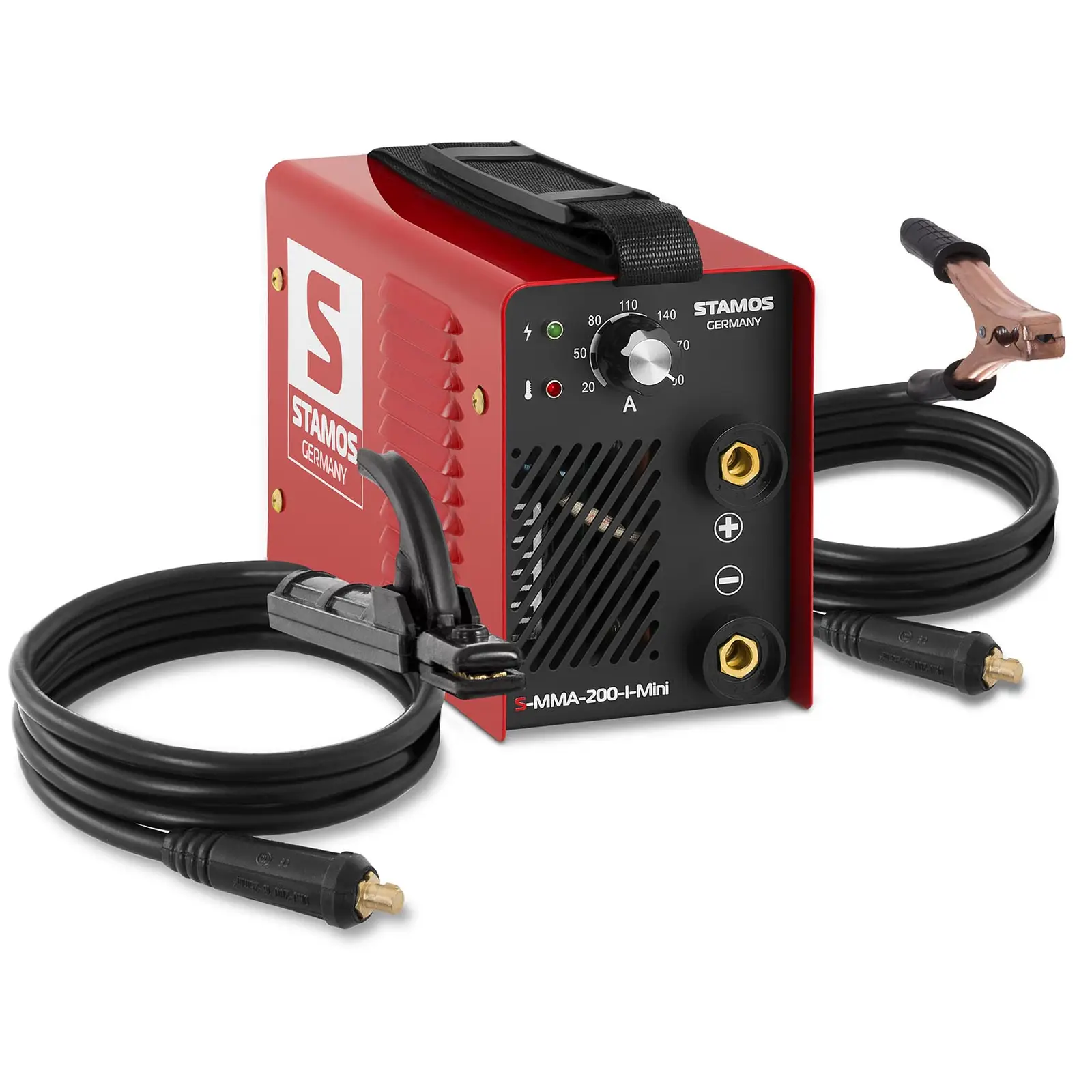

Stamos Germany Welding S-MMA-200-I-MINI

Stamos Germany Welding S-MMA-200-I-MINI

Stamos Germany Welding S-MMA-200-I-MINI is a professional tool which, despite its small size, ideally suited for welding in various activities. Machine uses innovative technology bipolar transistor (IGBT). Device Stamos Germany allows welding in MMA mode, which is coated electrode, while working does not need additional shielding gas.          This solution allows for welding outdoors, without having to use a tent. This is particularly useful for maintenance services in large industrial plants.

This method allows for the treatment of virtually all weldable materials. Very well suited to connecting elements, for example, alloy steel and alloy steel, cast iron, copper or nickel.

MMA method is supported by three functions responsible for simple start welding and subsequent stable continued. So you work with S-MMA-200-I-MINI is characterized by ease of use, even for beginners welders.

Anti stick - prevents heating of electrode, because power supply is immediately cut off;
Hot start - automatically increases voltage at start;
ARC-force - stabilizes electric arc when it changes its length.

Device operates from input voltage of 230V, so it can be plugged into an ordinary electrical outlet in every house hold. In contrast, welding current is adjustable from 20 to 200 A, with a convenient knob allows to adjust parameters of  equipment to working conditions.

To ensure safety welder is equipped with thermal protection and efficient ventilator, which is responsible for cooling machine and to protect it from over heating.

Housing is made of light weight coated sheet, through which the welder has a significant resistance to various types of mechanical damage. Despite its small size and weight of device it is extremely durable.

Wide belt allows suspension hardware on the shoulder, which affects its comfortable use also in the field. Compact nature and the bar also allow you to work at heights, because welder has a free hand. This provides flexible and mobile operation.

Stamos Germany brand machines are characterized by their robust design and the use of innovative technological solutions.

              specification

	IGBT - transistor Insulated Gate Bipolar is a component of half a guide, which is being increasingly used in electrical technology because it combines the advantages of two types of transistors. Easy control field effect transistors high breakdown voltage and switching speed of bipolar transistors. An advantage of the short-circuit resistance, since IGBT is limited then the current flow. IGBTs are more recent continuation of MOSFET technology.
	VOLTAGE SUPPLY - welder is equipped with a power supply of 230 V.
	HOT START - This function makes it easier to initiate electric arc, by temporarily increasing the welding current at the moment of ignition of electric arc. After ignition welding current returns to the set value.
	ANTI STICK - This function prevents heating of the electrode in the case of sticking it to the material, because  current is automatically reduced.
	ARC-FORCE - function stabilizing the electric arc when changing its length.
1.	ON / OFF SWITCH
2.	CONNECTOR CABLE BY WEIGHT
3.	CONNECTOR CABLE MMA
4.	CURRENT- maincurrent regulation.
5.	LIGHT POWER - lights up when you turn on welder
6.	OVERLOAD / FAILURE - light comes on in event of two situations: a) if machine has failed and can not be operated. b) if welder has exceeded standard cycle and has been running mode protection against overheating.             In this mode, machine should be left with power on. If red light goes off, it means that device cool down to temperature of operation and is suitable for re-use.
