Welder Stamos Germany S-MMA-160-I
Stamos Germany Welding S-MMA-160-I is a professional product, designed for welding in MMA mode, virtually all weldable materials. Well suited for use in areas such as eg. Construction, trade, manufacturing and many others. It is distinguished by robust construction and compact, streamlined shape. An additional piece of equipment is a practical belt to put on the equipment on the arm.
Device is made based on the technology of IGBT transistors, which is a modernized version of MOSFET. Through this solution machine has high output performance, while maintaining small dimensions. Check in flexible and mobile use, even in production plants. It is powered input voltage of 230 V.
Presented equipment features with adjustable welding current in the range of 20 to 160 A. This is accomplished by using a handy knob. Material removal process does not require shielding gas. Product can be operated both in the halls and on the court. Described solution to appreciate the maintenance service in large manufacturing plants.
Stamos Germany S-MMA-160-I is equipped with a robust casing. Welder has an appropriate level of security, through use of a thermal overload protection. Additionally, it has powerful fans for optimal cooling device.

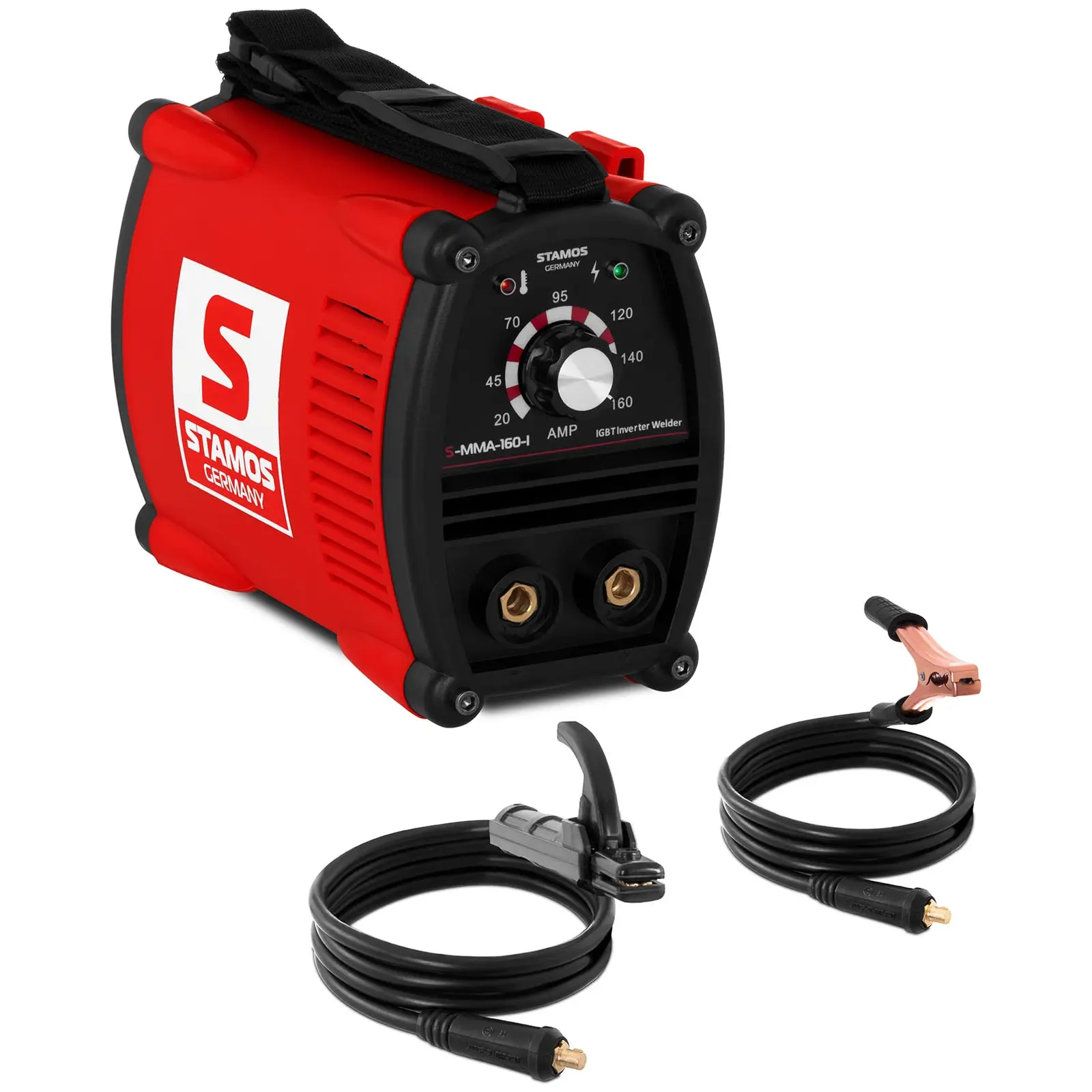

Included in delivery:
- Inverter welder with power cable length of 1.5 m
- MMA holder with cable with a length of 1.6 m
- Ground cable with clamp a length of 1.5 m
- welding mask
- hammer / brush
| Model | S-MMA-160-I |
| catalog No. | 2133 |
| article | Nowy |
| input voltage | 230 V, 1-Pharse |
| frequency network | 50 / 60 Hz |
|
Rated input current
|
21 A |
| Maximum input current | 23,3 A |
| Rated output power | 4,5 kVA |
| Maximum output power | 5 kVA |
| Power idle | 56 V |
| Welding current MMA | 20 - 160 A |
| Rated duty cycle | 80 % |
| Welding current duty cycle of 100% | 143 A |
| Welding current duty cycle of 80% | 160 A |
|
Electrode diameter MMA
|
1 - 4 mm |
| ARC-Force | No |
| Hot Start | No |
| Anti Stick | No |
|
cooling housing
|
ventilator
|
| Method of cooling holder | air |
| Thickness of weldable | 0,5 - 6 mm |
| Cable length MMA | 1,6 m |
| Cable length mass | 1,5 m |
| Length of power cord | 1,5 m |
| Efficiency (in nominal conditions) | ≥0,85 |
|
insulation class
|
F |
| Quality mark | CE |
| level of security | IP21 |
| Dimensions (LxWxH) | 26,5 x 13,5 x 18,5 cm |
| Weight | 2,8 kg |
|
Shipping dimensions (LxWxH)
|
32,8 x 25 x 23 cm |
| Shipping weight | 5 kg |
 |
IGBT - transistor Insulated Gate Bipolar is a component of half a guide, which is being increasingly used in electrical technology because it combines the advantages of two types of transistors. Easy control field effect transistors high breakdown voltage and switching speed of bipolar transistors. An advantage of the short-circuit resistance, since IGBT is limited then the current flow. IGBTs are more recent continuation of MOSFET technology. |
1.  |

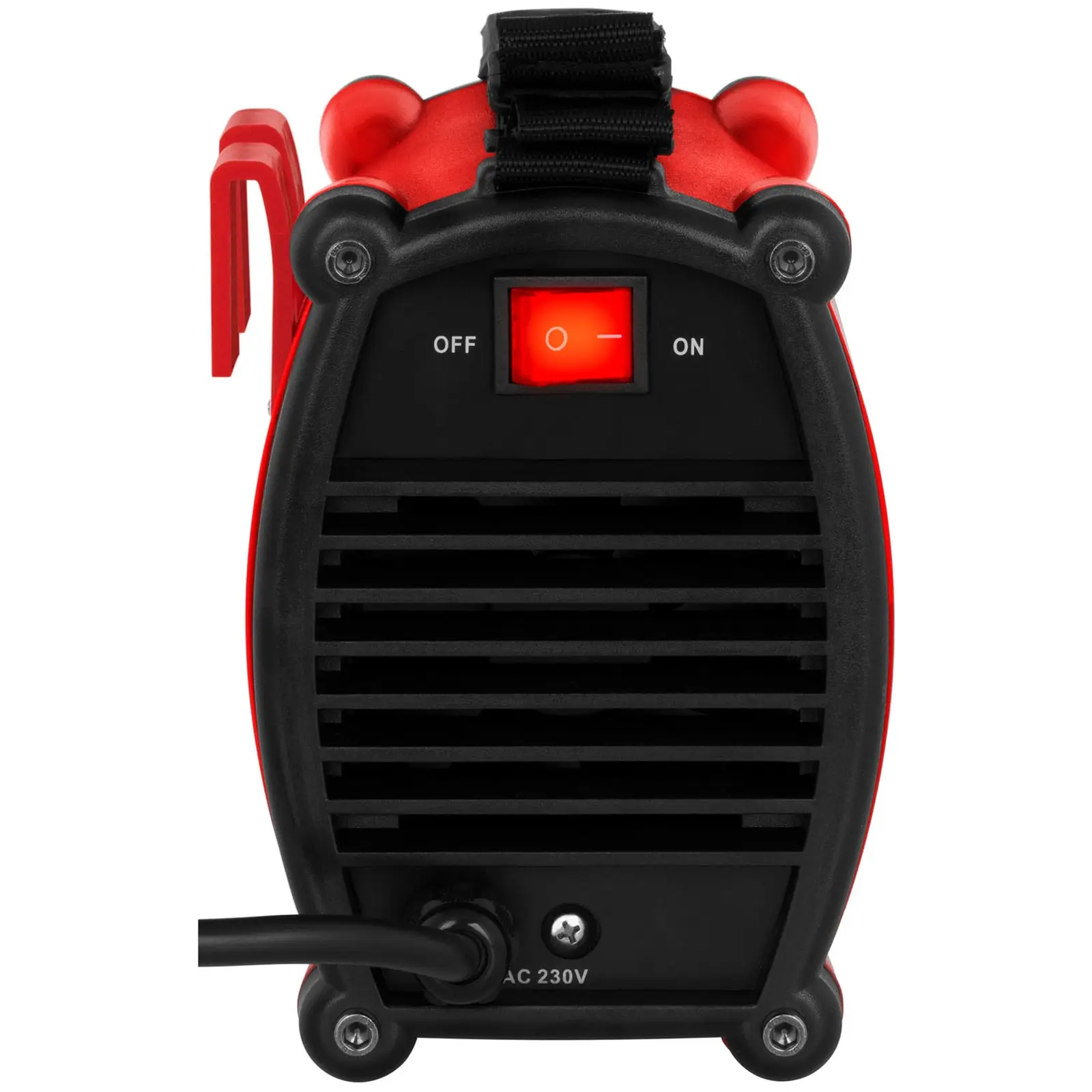

VOLTAGE SUPPLY - welder is the supply voltage of 230 V. |
2.  |
ON / OFF SWITCH |
3.  |
CONNECTOR CABLE BY WEIGHT |
4.  |
CONNECTOR WIRE MMA |
5.  |
CURRENT-main current regulation. |
6.  |
LIGHT POWER - LED lights up when the unit is turned on. |
7.  |
OVERLOAD / FAILURE - light comes on in event of two situations: |
