welder MMA Stamos Germany S-MMA 200PI

Availability: avarage amount
Dispatched within: 24 hours
Delivery: The price does not include any possible payment costs check the delivery methods
Price: €251.29 251.29
Net price: €204.30
quantity szt.

product unavailable

add to wish list
Rating: 4.54318
Vendor: Stamos
Product code: MP10020018

Description

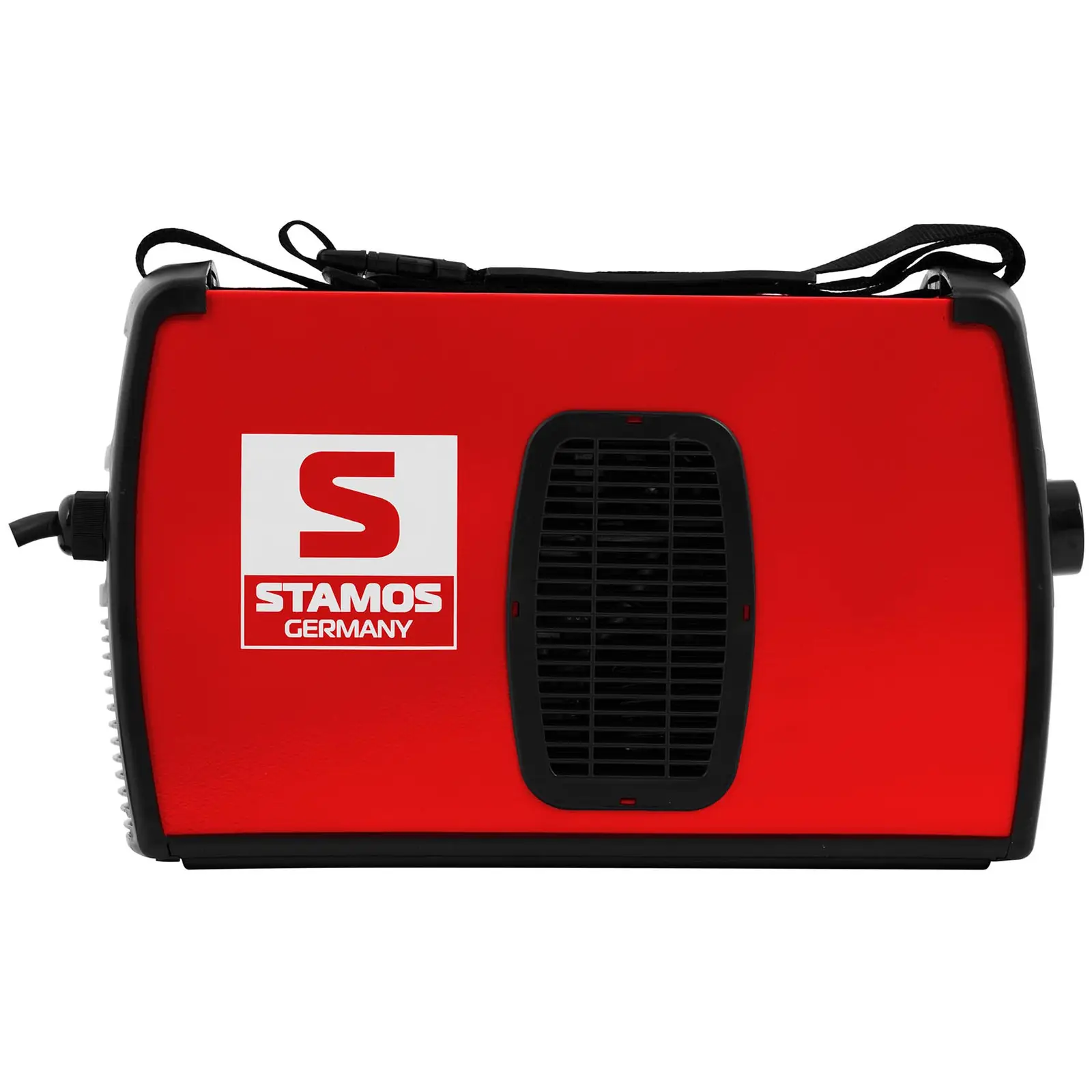

MMA welder Stamos Germany SMMA 200PI

MMA welder Stamos Germany S-MMA 200PI is a modern equipment that enables the processing of all materials to weld in MMA mode. Machine will find its use for example in the work handicraft, repair, manufacturing and many others.

Operation of the present rectifier welding technology is based on IGBT transistors, which is a modernized version of the MOSFET. They make the product has a high output power, without affecting its compact shape and a small weight. Optionally, the machine also works well when working in TIG LIFT mode. To do this, equip it with TIG torch with gas valve.

Article by Stamos Germany provides smooth control of power in the range of 20 to 200 A in a practical knob. Manufacturing parts does not require shielding gas, so that the welder does not work in the tent. Device is well suited for use in halls and air. The presented solutions using maintenance service in large manufacturing plants.

Machine is characterized by a high level of security. Ventilator effectively protects it from overheating. A special indicator lights up in case of overheating or eventual failure ..

Stamos Germany Welding S-MMA 200PI belongs to the Basic product line that combines high quality welding properties and very affordable prices to practically every user.

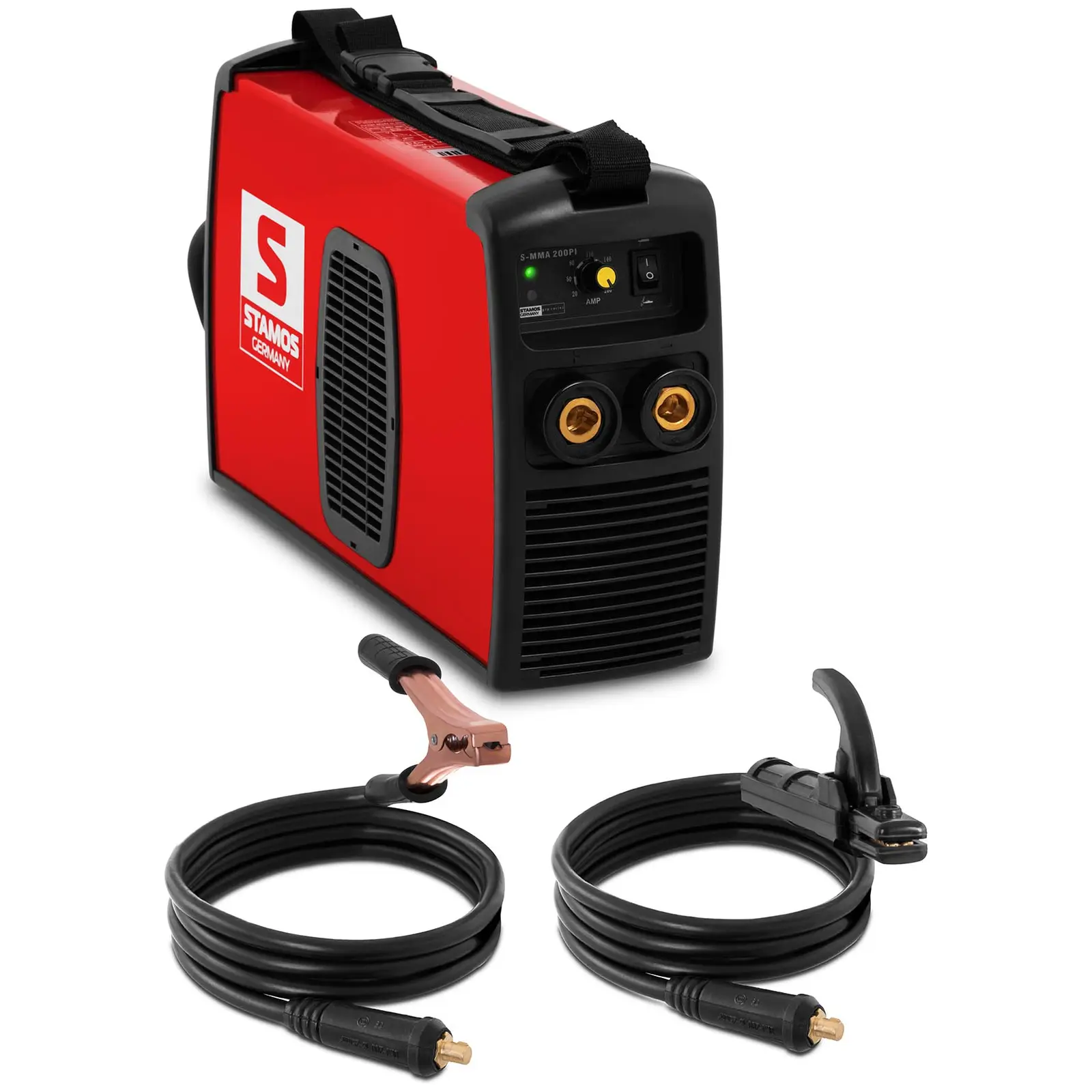

MMA welder Stamos Germany S-MMA 200PI is supplied with the necessary wiring, as well as accessories. Set includes:

Inverter welder with power cable
MMA welding gun 3.6 m
Cable to the common terminal 3,6 m
welding mask
Brush / hammer

Model

SMMA-200PI

Condition

New

Input voltage

230V, 1-Phase



AC Frequency (Hz)

50/60



Duty cycle

80%

Ampere at 100% duty cycle

160



Welding strength

0,5 - 4.0 mm



Open circuit voltage (V)

62



Adjustable welding current (A)

20-200



For electrode

1.6 - 4.0 mm



Weight

6,3 kg



Protection class

IP21



Insulation class

B



Dimension (LxWxH)

39 x 25 x 12 cm



Weight

6 kg



Delivery dimension (LxWxH)

52 x 32 x 23 cm



Delivery weight

11,5 kg





IGBT - transistor Insulated Gate Bipolar is a component of half a guide, which is being increasingly used in electrical technology because it combines the advantages of two types of transistors. Easy control field effect transistors high breakdown voltage and switching speed of bipolar transistors. An advantage of the short-circuit resistance, since IGBT is limited then the current flow. IGBTs are more recent continuation of MOSFET technology.



CERTIFICATES - S-MMA welder 200PI was made according to stringent European standards and passed the examination for compliance with CE and RoHS. This ensures long life and high quality equipment.

ANTI STICK - This function prevents heating of the electrode in the case of sticking it to the material, because the current is automatically reduced.

HOT START - This function makes it easier to initiate electric arc, by temporarily increasing the welding current at the moment of ignition of electric arc. After ignition welding current returns to the set value.

ARC-FORCE - function stabilizing the electric arc when changing its length

VENTILATORS - high-performance ventilators provide optimal heat dissipation during welding work.

EARTH - on the back of each welder is marked with grounding screw. Before starting the machine must be grounded using a cable whose cross must not be less than 6 mm.

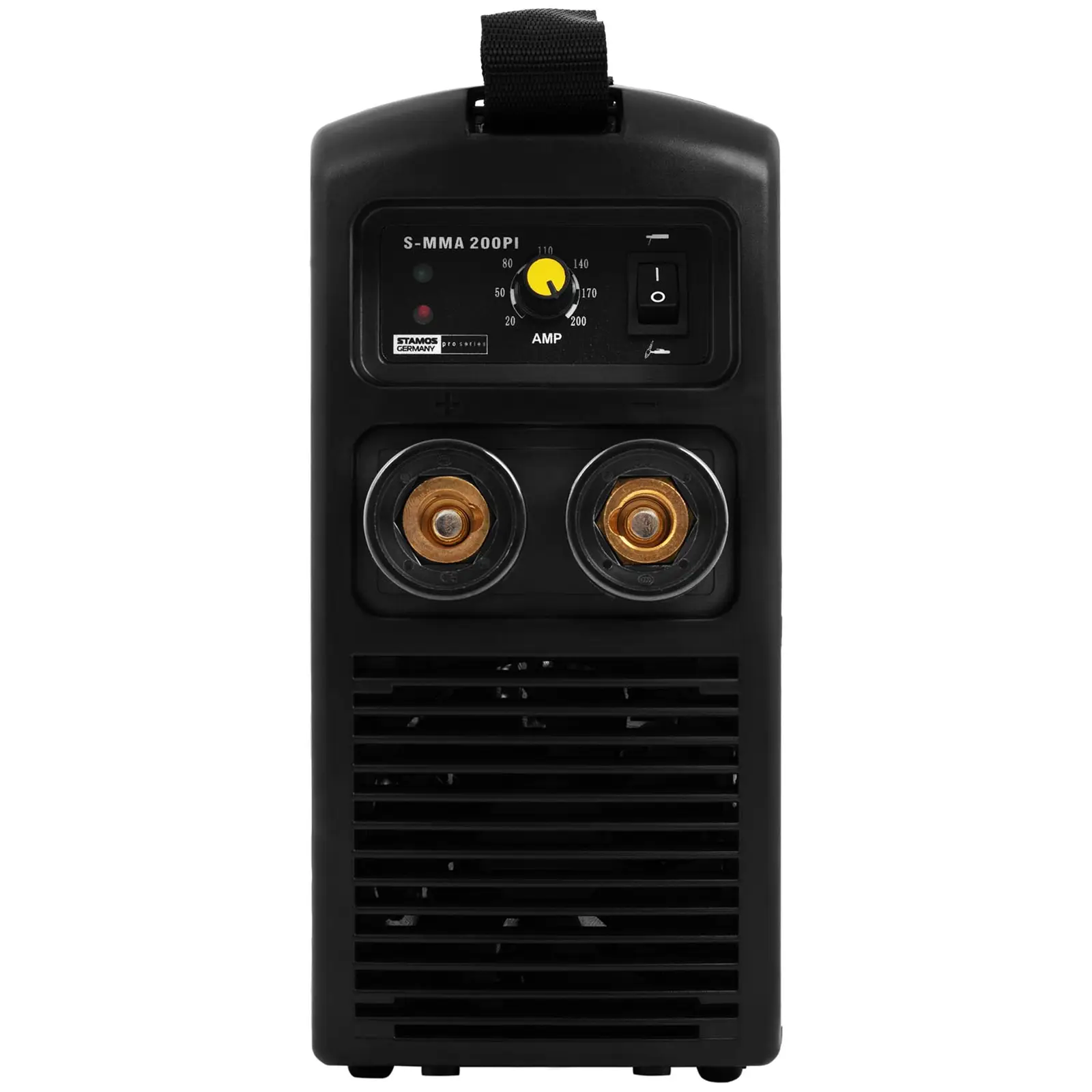

ON / OFF SWITCH

WIG / TIG welding - while the TIG / WIG electric arc formed between the tungsten electrode and the work piece. To protect the tungsten electrode and the weld used inert gases (usually argon). The treatment of TIG can be used for all weldable metals. Selection of current type, polarization, and a protective gas depending on the type of welded metal.

CURRENT - main current adjustment from 20 to 200 A.

CONNECTOR WIRE MMA

OVERLOAD / FAILURE - light comes on in event of two situations:
a) if machine has failed and can not be operated.
b) if welder has exceeded the standard cycle and has been running mode protection against overheating. In this mode, machine should be left with the power on. If red light goes off, it means that the device cool down to the temperature of operation and is suitable for re-use.

GAS CONNECTION - connect gas to device, and its flow-controlled electrovalve must start button on the handle.

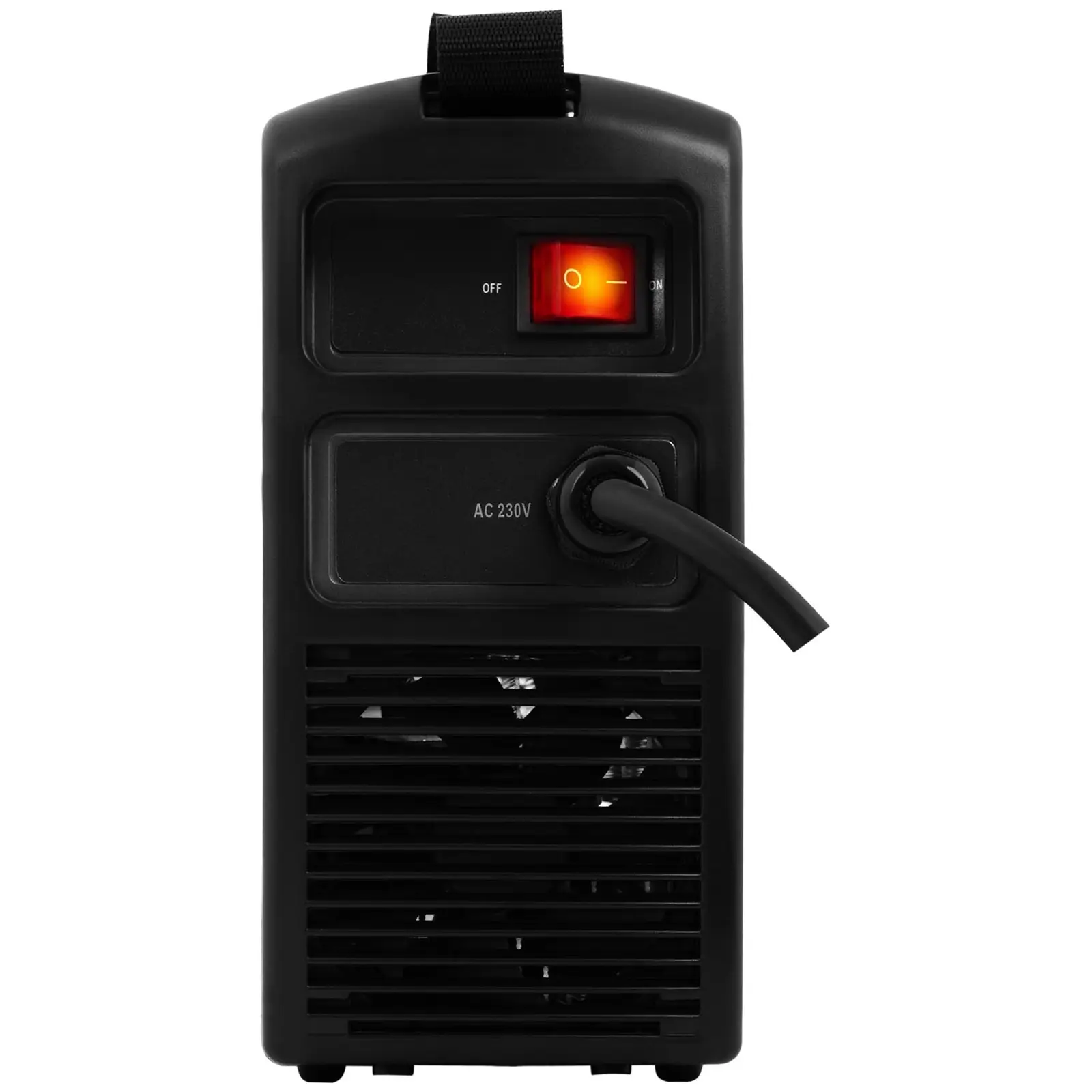

VOLTAGE SUPPLY - welder is supplied from one phase (230 V +/- 10%).

CONNECTORLEADWEIGHT
