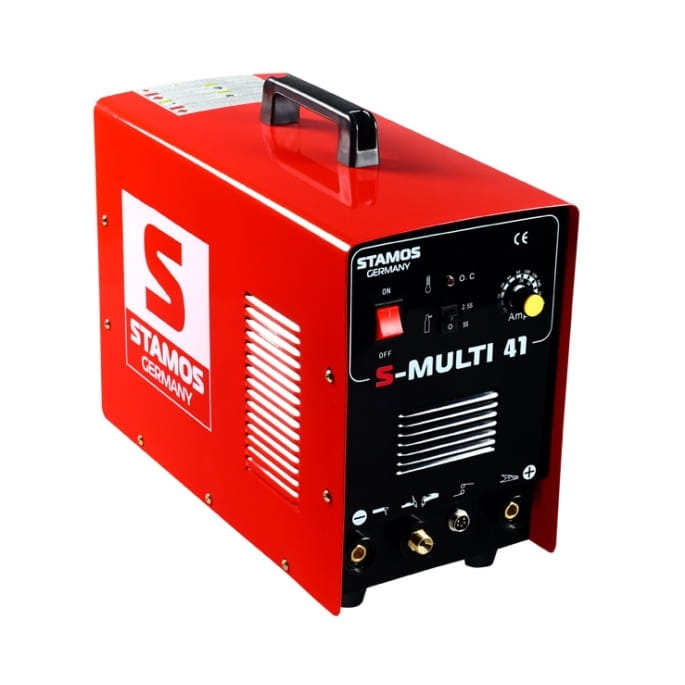

Multifunction device Stamos Germany S-MULTI 41
Description
Multifunction deviceStamosGermanyS-MULTI 41
Welding multifunctional Stamos Germany S-MULTI 41 uses advanced MOSFET technology, thanks to which this small, compact welding machine achieves high power and efficiency.
High-end multiprocessor, Inverter welding rectifier enables welding by TIG and MMA. Flexibility also provides possibility plasma cutting, to the plasma gas, compressed air may be used, making process very economical.
In this mode it uses non-contact TIG arc starting with which to start welding electrodes do not require contact with material. This procedure greatly reduces the risk of contamination of the weld tungsten electrode and facilitates welding. Work MMA has been enriched with 3 functions: Hot Start Anti Stick and ARC-Force. They make it easy start welding it to continue and further continue.
Use of arc plasma provides high cutting speed, thereby maintaining the high quality of work. In addition, also it reduced operating cost due to plasma cutting, instead of expensive protective gas is used air.
Additional advantage an S-MULTI 41 is to use gas solenoid valve, excluding necessity to use brackets with valve. This keeps programmable gas flow after welding. Smooth adjustment of welding current for a high knob with a clear scale. Their size eliminates the need to pull glove during operation. This not only increases comfort, but also the safety of welder.
Working in difficult conditions facilitates clear and legible control panel. Rugged construction ensures its reliability and long-term use. While the use of lightweight materials make device is a handy and useful even at high altitudes.

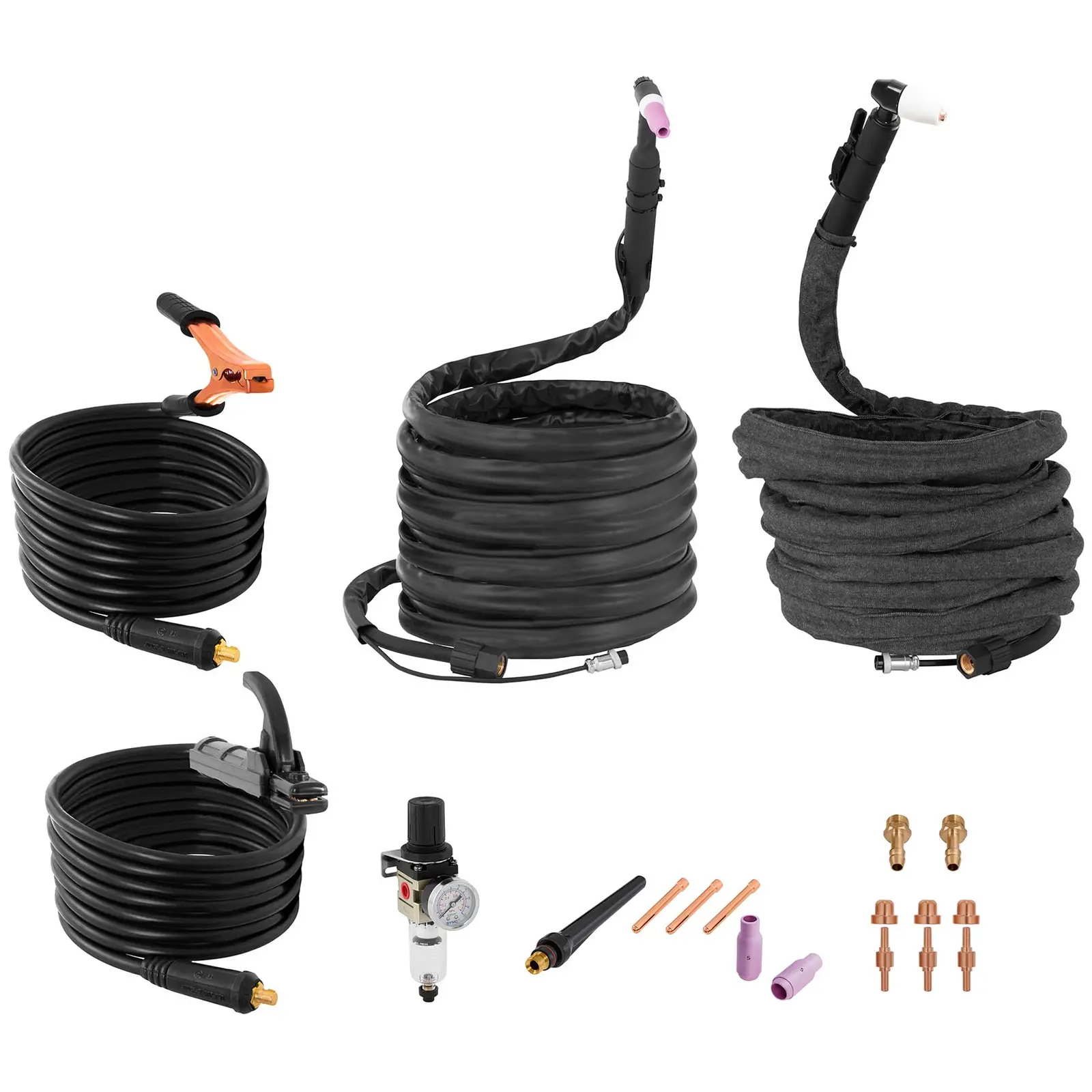

Unit is supplied with the necessary parts supplies and long cables that make it easy to work even at a significant distance from the machine. Includes MFP Stamos Germany S-MULTI 41 you receive:
TIG welding torch 4 m
MMA welding torch 3.5 m
Handle for plasma cutting 4 m
Cable to a common terminal 3,6 m
Consumable parts (porcelain nozzles, collets, long cork)
welding mask
Brush / Hammer
article: CT-416 |
WIG |
MMA |
CUT |
article condition |
Neu |
||
AC frequency (Hz) |
50/60 |
||
ignition: |
high frequency |
contact |
contact |
input corrent (A) |
18 |
22 |
25 |
welding current |
10-160 |
10-160 |
10-40 |
Compressor Connection (Bar) |
- |
- |
4,5 |
Gas flow (L/min) |
2-5 |
- |
80-200 |
Electrode diameter max. |
- |
3,2mm |
- |
Cutting performance with max. 40A |
- |
- |
1-12mm |
Model input voltage |
230V, 1-phase |
||
Idling voltage (V) |
40 |
||
Power faktor (COSf) |
0.93 |
||
Efficiency (%) |
85 |
||
Measurements (LxWxH) |
20,5 x 43 x 32 cm |
||
Weight |
16,5 kg |
||
Shipping Measurements (LxWxH) |
28 x 72 x 38 cm |
||
Shipping Weight |
21 kg |
MOSFeT = This inverter uses the MOSFET technology. This technology increases performance achieving an efficiency factor of 93% with the same amount of electricity. The remains very stable, resulting in a perfect weld. Thanks to the MOSFET technology the welding machine can be designed to be extremely small and lightweight. |
|
CERTIFICATES - device was made according to stringent European standards and passed examination for compliance with CE and RoHS. This ensures long life and high quality equipment. |
|
Non-contact HF arc ignition - ignition of electric arc in TIG mode using high frequency allows you to create a clean starting point of the weld. |
|
ANTI STICK - zapobiega rozgrzaniu elektrody podczas przyklejenia do materiału, a natężenie prądu zostanie automatycznie zmniejszone. | |
HOT-START = The hot-start function will increase the tension at the start automatically so that even problematic electrodes ignite. After ignition the device automatically switches back to the preset voltage. |
|
ARC -force - Function stabilizing arc when changing its length. |
|
DOWN SLOPE - slope down - time in which output current drops from welding current, until the end of welding. |
|
VENTILATORS - very powerful fans provide optimal heat dissipation during welding work. |
|
EARTH - back of each welder is a screw marked with the earth. Before starting device must be grounded using a cable whose cross can not be smaller than 6 mm. |
|
ON / OFF SWITCH |
|
WIG / TIG - TIG welding arc is formed between the tungsten electrode and the base material. To protect tungsten electrode and weld is used inert gases (usually argon). TIG welding can be used for all weldable metals. Choosing current type, polarization, and a protective gas depending on type of welded metal. |
|
Plasma arc cutting - dense plasma arc melts the metal and throws him out of the slot through kinetic energy, which gives it a compressed air. With this method it is possible to achieve high-speed cutting while maintaining high quality. It is not required the use of expensive protective gas is sufficient compressed air. Simplicity of method and low operating costs make devices that it promotes both production areas and among craft services. |
|
CURRENT-Adjustmentmain current | |
CONNECTOR WIRE MMA |
|
OVERLOAD / FAILURE - light comes on in event of two situations: |
|
GAS CONNECTION - connect machine to gas, and its flow is controlled by a solenoid valve activated by pressing on the handle. During plasma arc cutting equipment should be connected to compressed air. |
|
VOLTAGE SUPPLY Device is powered from a single phase. |
|
POST TIME - time gas supply after power electric arc. Function is used for cooling weld and protecting it from oxidation. |
|
CONNECTOR LEAD WEIGHT. |
