Welding multifunction device S-MULTI 41P
Description
Welding multifunction S-MULTI 41P
Multifunction device brand Stamos Pro Series S-MULTI 41P is a product characterized by high universality. It allows you to weld MMA and TIG and cut elements using a plasma arc. It is suitable for all repair work, production, hobby, and many others.
Machine uses inverter technology MOSFET. Helped downsize main transformer while increasing its efficiency. Equipment is characterized thereby compact nature.
Part of article allows TIG welding modes (DC) and MMA electrode welding current. First one uses a Tungsten welding rod electrode in argon and has a function contactless ignition arc, which makes start of welding electrodes do not require contact with material. Its additional advantage is the use of gas solenoid excluding the need to use valve handles.
Presented product Stamos Pro Series lets you cut parts using plasma arc. Its use is made that the cutting speed is high, and high quality of work. In addition, reduced installation costs, as the plasma cutting, instead of expensive protective gas, air is used. Electronic control and smooth current adjustment, by means of a practical knob, it improves the comfort of operation.
Device is suitable for processing virtually all electrically conductive materials, such as steel, stainless steel, non-ferrous metals and their alloys (except aluminum).
Proposed Inverter welding rectifier is characterized by robust design and the use of lightweight materials increases mobility equipment and facilitates its transportation. Advantage of this model are the long, eight-meter handles.

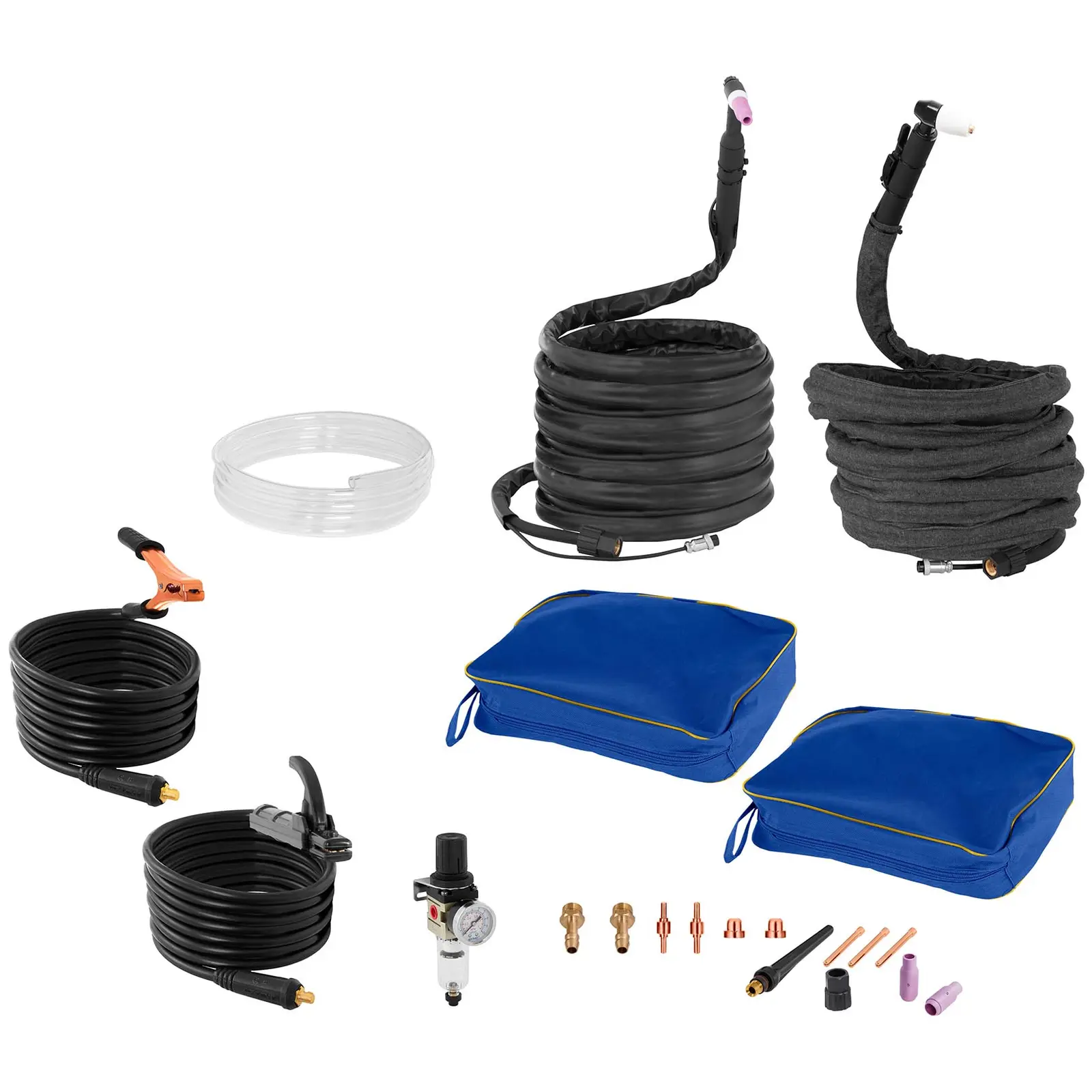

Multifunction device Stamos Pro Series S-MULTI 41P is supplied with necessary accessories.
| article: CT-416 | WIG | MMA | CUT |
| article condition | Neu | ||
| AC frequency (Hz) | 50/60 | ||
| ignition: | high frequency | contact | contact |
| input corrent (A) | 4,5 | 7,2 | 6,5 |
| welding current | 10-180 | 10-165 | 10-50 |
| Compressor Connection (Bar) | - | - | 4,5 |
| Gas flow (L/min) | 2-5 | - | 80-200 |
| Electrode diameter max. | - | 4,2mm | - |
| Cutting performance with max. 40A | - | - | 1-16mm |
| Model input voltage | 230V, 1-phase | ||
| Idling voltage (V) | 40 | ||
| Power faktor (COSf) | 0.93 | ||
| Efficiency (%) | 85 | ||
| Measurements (LxWxH) | 20,00 x 49,00 x 31,00 cm | ||
| Weight | 22,35 kg | ||
| Shipping Measurements (LxWxH) | 34,00 x 79,00 x 40,00 cm | ||
| Shipping Weight | 26,00 kg | ||
| Protection class | IP21 |
 |
MOSFET - this technology provides the highest performance. Result is efficiency of 93%. Welding current is very stable guarantee precise joint. With technology MOSFET device is lightweight and compact. |
  |
CERTIFICATES - device has been manufactured according to strict European standards and passed examination for compliance with CE and RoHS. This ensures a long service life, as well high quality of the equipment. |
 |
Touchless arc ignition - defines concept contactless initiate arc using high frequencies, enabling the creation of clean weld starting point and extends the life of the tungsten electrode. |
 |
Shielding gas - welding WIG / TIG welding is required shielding gas (argon, for example). |
 |
ANTI STICK - This feature prevents heating of the electrode during her "stick" to workpiece, because at the time of adhesion current is automatically reduced. |
 |
VENTILATORS - high-performance fans provide optimal heat dissipation during operation. |
 |

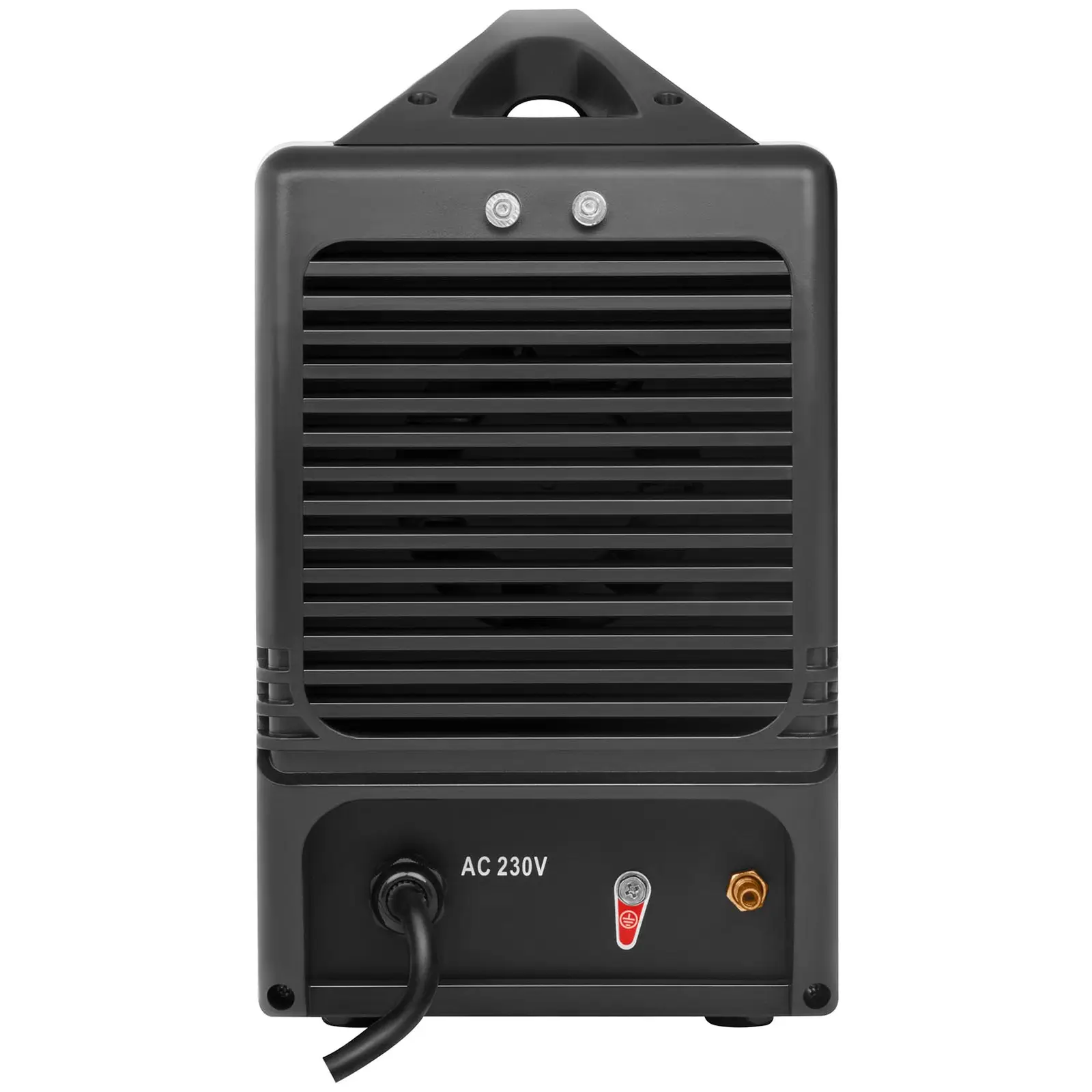

EARTH - Rear is marked grounding screw. Before starting device must be grounded using a cable whose cross can not be smaller than 6 mm. In this way, manages to avoid loss of tension. |
 |
PLASMA CUTTING USING AIR - high density plasma arc to achieve a significant cut speeds while maintaining high quality continuity. It is not required the use of expensive gas. Usage compressed air and the easier handling operation in areas bodywork, tanks, steel structures, heating, air conditioning, as well as in the area of sanitation and other installations. |
 |
CONNECTOR WIRE MMA |
 |
OVERLOAD / FAILURE - light comes on in event of two situations: |
 |
WŁĄCZNIK / WYŁĄCZNIK |
 |
TIG / WIG - podczas spawania metodą TIG łuk elektryczny powstaje pomiędzy nietopliwą elektrodą wolframową a materiałem spawanym. W celu ochrony elektrody wolframowej oraz spoiny stosuje się gazy osłonowe - najczęściej obojętne, takie jak argon i hel lub nie utleniające mieszanki gazowe. Spawanie metodą TIG można zastosować w przypadku wszystkich metali spawalnych. Wybór typu prądu, polaryzacji i gazu ochronnego zależy od rodzaju spawanego metalu. |
 |
ON / OFF SWITCH |
 |
POWER - welder is supplied with single-phase (230V +/- 10%). |
 |
CONNECTION LEAD WEIGHT |
 |
POWER LED - lights up when you turn on machine this indicator. |
 |
CURRENT - main current regulation. |
