welder S-DIGITRON 200P TIG MMA PULSE
Description

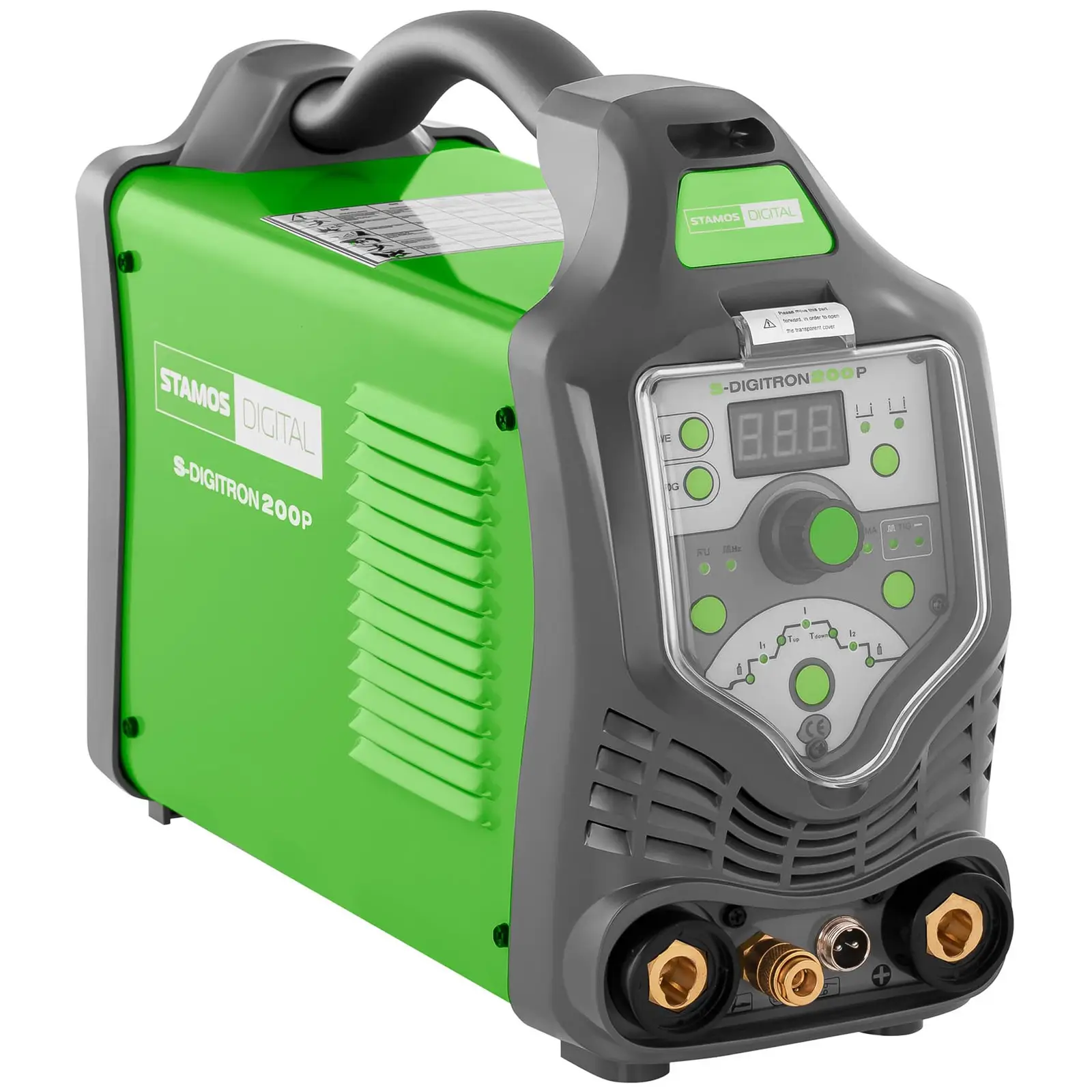

Welder TIG S-DIGITRON 200P
Stamos welder S-DIGITRON Eco 200P is a device with Eco series of products designed for professional tasks.
It is a high class Inverter welding rectifier, which uses advanced technology MOSFET. With the welder achieved high output power, while maintaining its small size.
Possibility weld TIG and MMA mode constant current greatly enhances the capability and area of use machine. Method uses non-contact TIG arc starting, which supports start of welding process. With it, it is not required to contact the electrode material, which reduces the risk of contamination of the weld tungsten electrode.
MMA is assisted by three supporting function. Anti Stick, ARC-Force and Hot Start, to facilitate the start of the welding process and support its stable continuation. In this way, they provide comfort and convenience not only for professional welders, but also beginners.
Stamos welder Eco is equipped with a wide range of control parameters, providing full control over created weld. With adjustable parameters include:
- Starting current,
- Current final
- Fall time / current rise,
- Flow before and after welding.
It is a smooth adjustment with the help of functional and fully digital control panel.

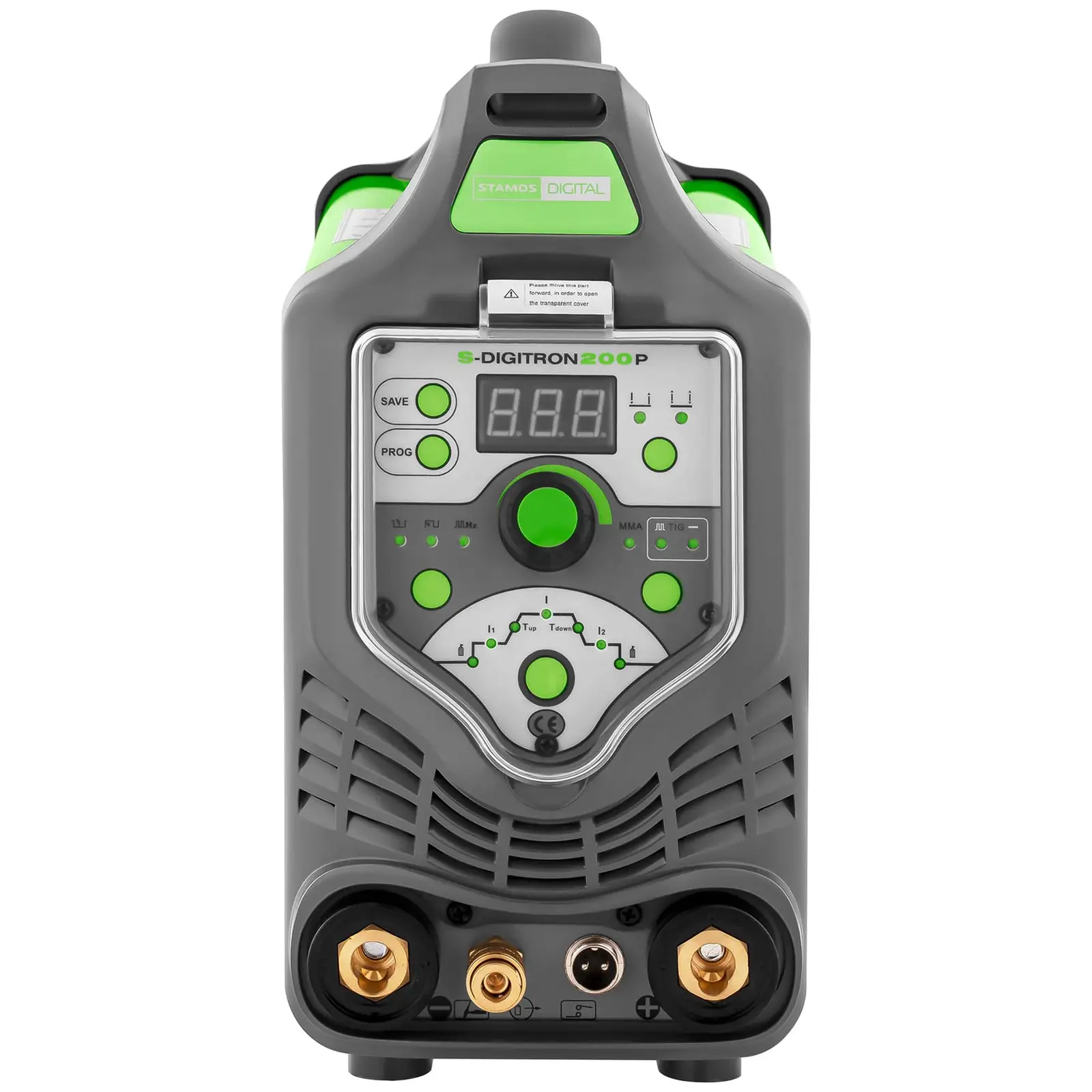

Handy knob with a clear scale for intuitive operation panel. Large digital display allows reading of the parameters even in darkened rooms.
During production, great emphasis was placed on energy efficiency and recycling of waste materials. Therefore, the machine is not only characterized by solid execution and interesting design, but its design is also environmentally friendly.
Device is sold with the necessary wiring for TIG and MMA welding. In addition, to ensure a longer, no-cost use, comes with a suite of consumables.

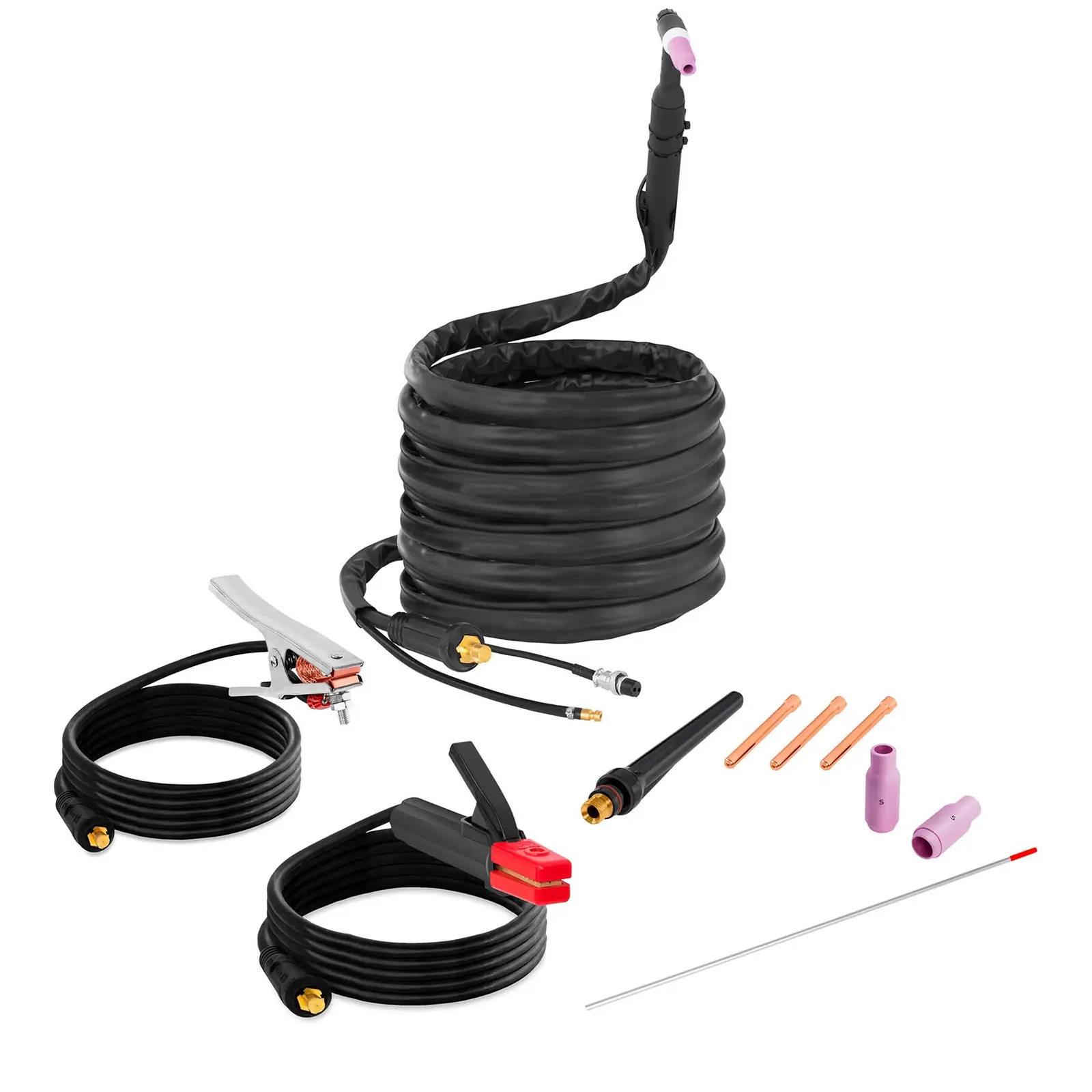

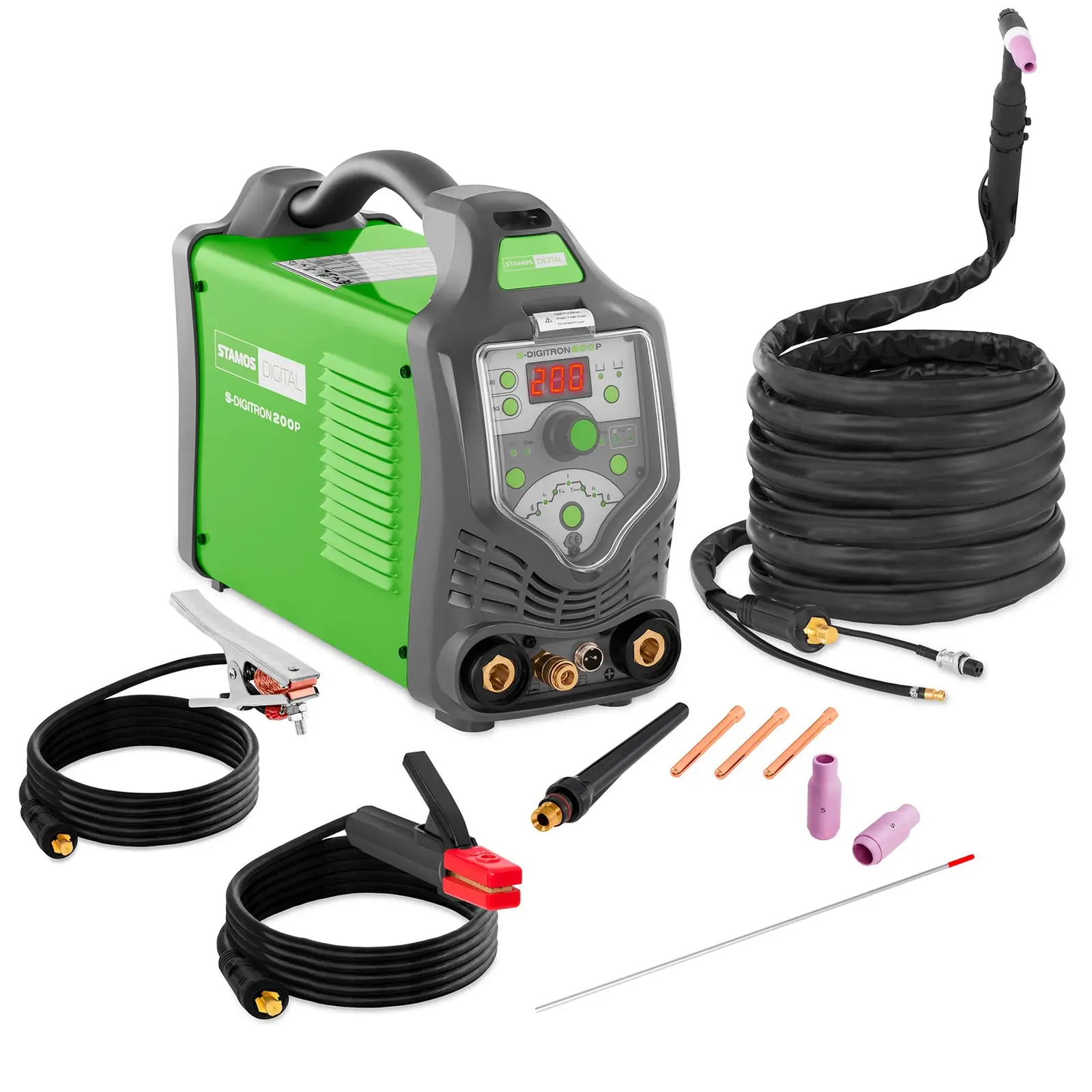

Set includes:
- Inverter welder with power cable
- TIG welding torch 5m
- MMA welding torch 4m
- Cable to a common terminal 4 m
- Consumable parts (porcelain nozzles, collets, long cork)
Model: | S-DIGITRON 200P | |
Voltage (V): | 230V | |
Frequency (Hz): | 50/60Hz | |
Functions: | TIG | MMA |
Rated input current (KVA): | 4.5 | 6.3 |
Open-circuit voltage (V): | 56 | 56 |
Output current scope (A): | 10 - 200 | 10 - 180 |
Output current scope (V): | 20 - 25.6 | 20 - 27.2 |
Duty cyle (%): | 60 | |
No-load loss (w): | 40 | |
Arc start: | HF | |
Performance Factor (cos): | 0.93 | |
Efficiency (%): | 85 | |
Rise and decay time of the current (s): | 0 - 9.9 | |
Gas pre-flow time (s): | 0.1 - 2.0 | |
Gas after-flow time (s): | 0 - 9.9 | |
Pulse work cycle (%): | 5 - 90 | |
Puls frequency (Hz): | 1-200 | |
Welding thickness: | 0,5 – 10mm | |
Protection class: | IP21S | |
Insulation class: | F | |
Weight: | 15,4 kg | |
Dimension: (LxBxH) | 40 x 17 x 31 cm | |
Shipping weight: | 17,2 kg | |
Shipping dimension: (LxBxH) | 53 x 33 x 39 cm |
