WELDING TIG 200 AC DC MMA PULSE CABLES 8m
Description
WELDING TIG AC / DC S-AC 200P
STAMOS WELDING GROUP presents PRO series product lines, designed for professional use.
PRO series devices are designed for demanding users, operating on their devices intensive, both in production processes and repair work.
Welding S-AC 200P is a device with a robust, compact design. A clear control panel with large knobs with clear descriptions illustrated graphics, make the operation of the machine becomes simple and intuitive. Availability of AC and DC modes makes our machine can weld steel, stainless steel and non-ferrous metals including aluminum.
equipment:
- Inverter welder with power supply cable

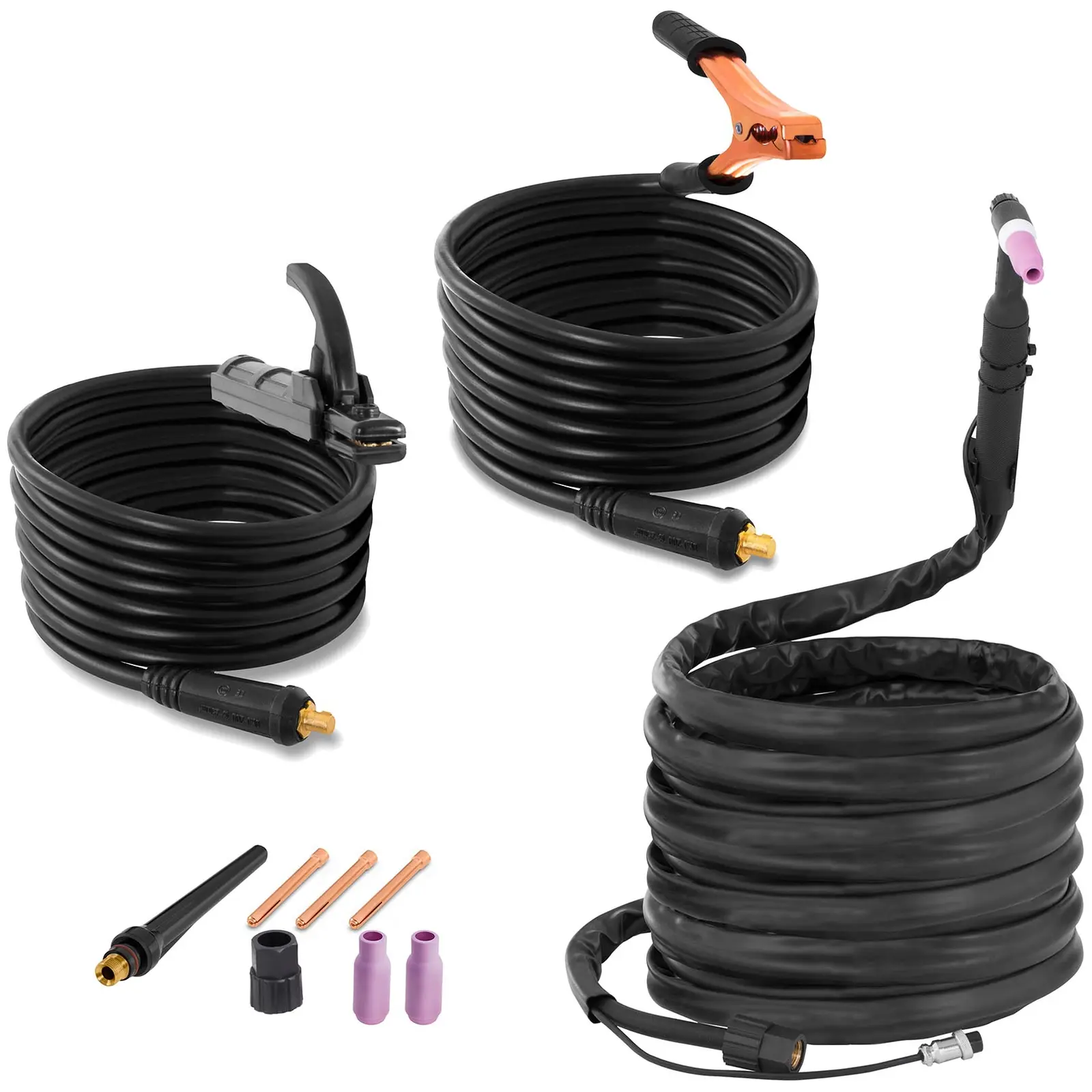

- TIG torch with cable 8m

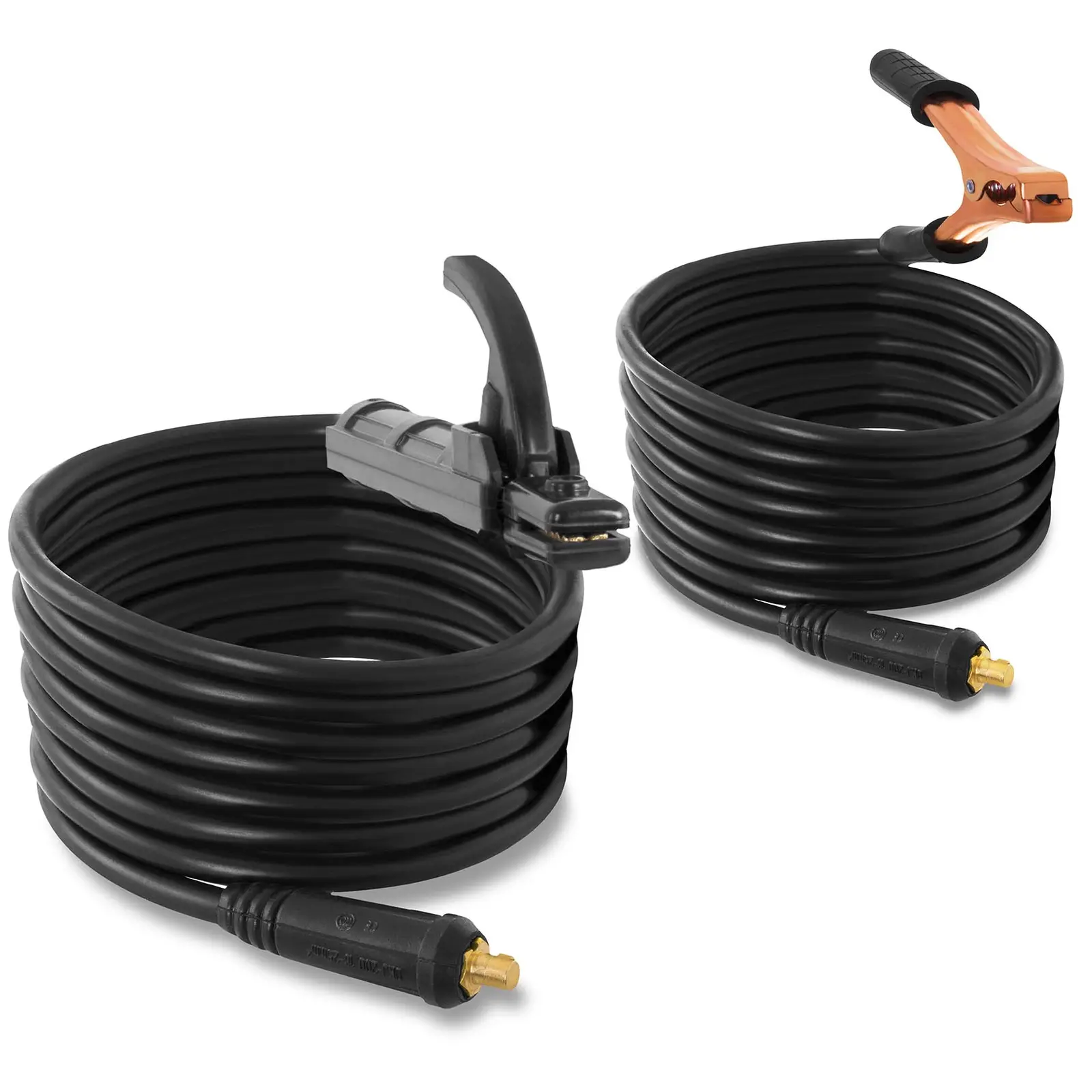

- Cable with clamp 8m
- MMA welding torch with cable 8m
- Spare parts accessories TIG torch
- Welding mask and hammer to clean weld MMA
- Instruction
Model: | S-AC 200P | ||
Condition: | New | ||
Input voltage: | 230 V, 1-Phase | ||
Frequency (Hz): | 50/60 | ||
Duty cycle: | 60% | ||
Ampere at 100% duty cycle: | 135 | ||
Ignition WIG: | HF - High-frequency | ||
Welding power MMA: | 0,5 mm - 4 mm | ||
Welding power TIG/WIG: | 0,5 mm - 6 mm | ||
Input current eff. / max.: | 14,7 / 20,4 A | ||
Open-circuit voltage: | 70 V | ||
Degree of housing protection: | IP21S | ||
Insulation class: | F | ||
Overvoltage protection: | Yes | ||
Cooling: | Fan | ||
2 T / 4 T change-over switch: | Present | ||
Gas solenoid valve: | Yes | ||
Welding current DC WIG: | 5 - 200 A | ||
Welding current AC WIG: | 20 - 200 A | ||
Welding current E-Hand: | 10 - 160 A | ||
Electrode diameter WIG: | 1 - 3,2 mm | ||
Electrode diameter MMA: | 1 - 4 mm | ||
Gas after-flow: | 1 - 10 Sec. | ||
Pulse current: | 20 - 200 A | ||
Pulse Width: | 0,1 - 0,9 (10 - 90%) | ||
Pulse frequency: | 0,5 - 25Hz | ||
Hot Start / Anti-Stick / ARC-Force: | Yes | ||
Start current: | Yes | ||
End current: | Yes | ||

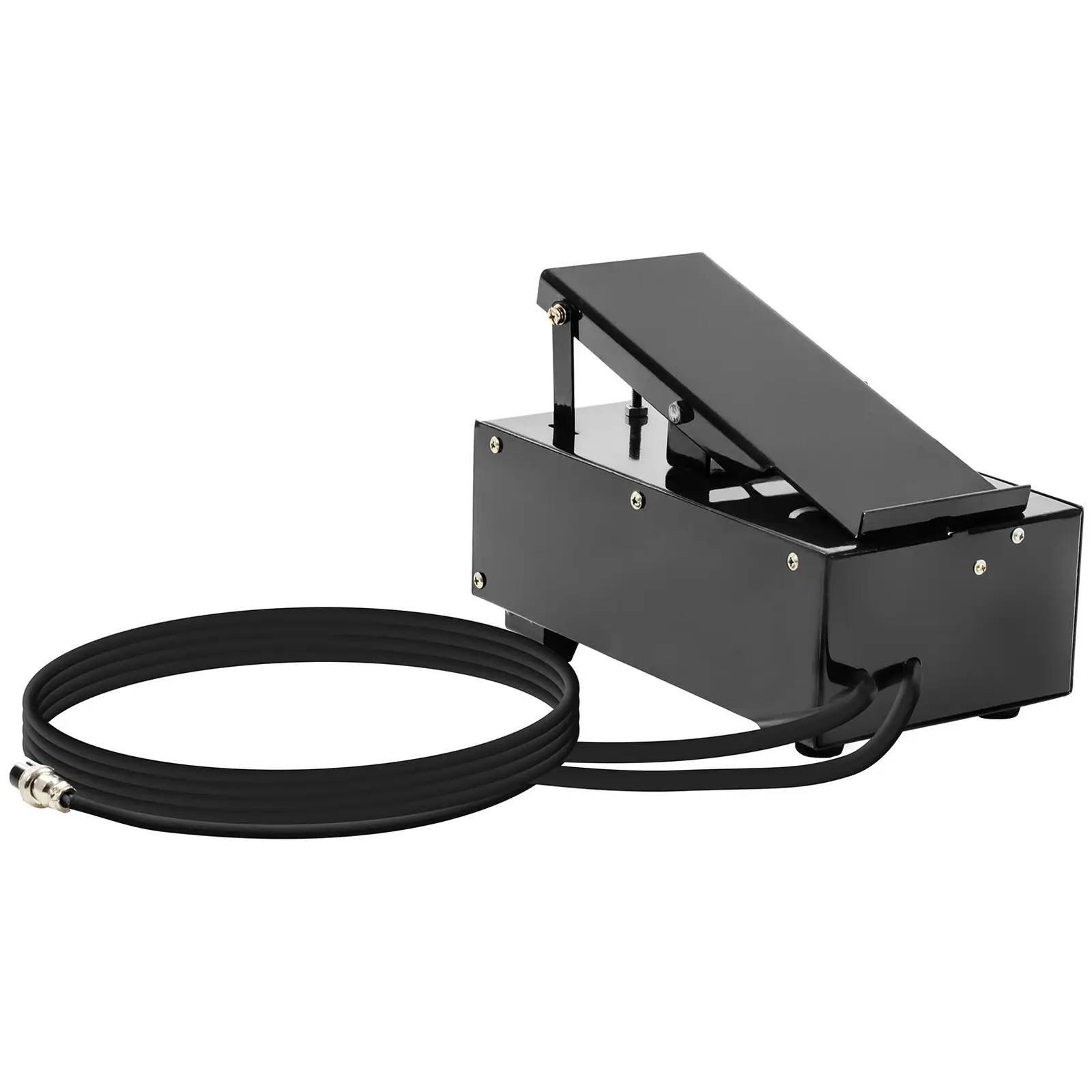

Remote control unit: | Yes | ||
AC-Frequency: | 20 - 100 Hz | ||
SP Entgrat current: | 30 - 70% | ||
Dimension(LxBxH): | 50 x 32,7 x 35,7 cm | ||
Weight: | 19,8 kg | ||
Shipping dimension (LxBxH): | 60 x 44 x 53,5 cm | ||
Shipping weight: | 36 kg |
