TIG Welder S-ALU333PH
Availability:
out of stock
Gross price:
€1,163.20
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
€945.69
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Description
TIG welder S-ALU 333 PH Stamos Selection
Extremely durable construction and high reliability of Use. Working with output voltage of 400, a welding current TIG S-ALU 333 pH is adjusted in range of 10 - 333 amperes in case of TIG welding, and between 10 - 250 amperes in case of electric welding hand MMA and, therefore, device easily fits for all conditions. Necessaries you today TIG welder inexpensive S-ALU 333 PH company Stamos Selection.
TIG welder S-PH ALU 333 operates on MOSFET technology, so efficiency of its energy reaches 93%.

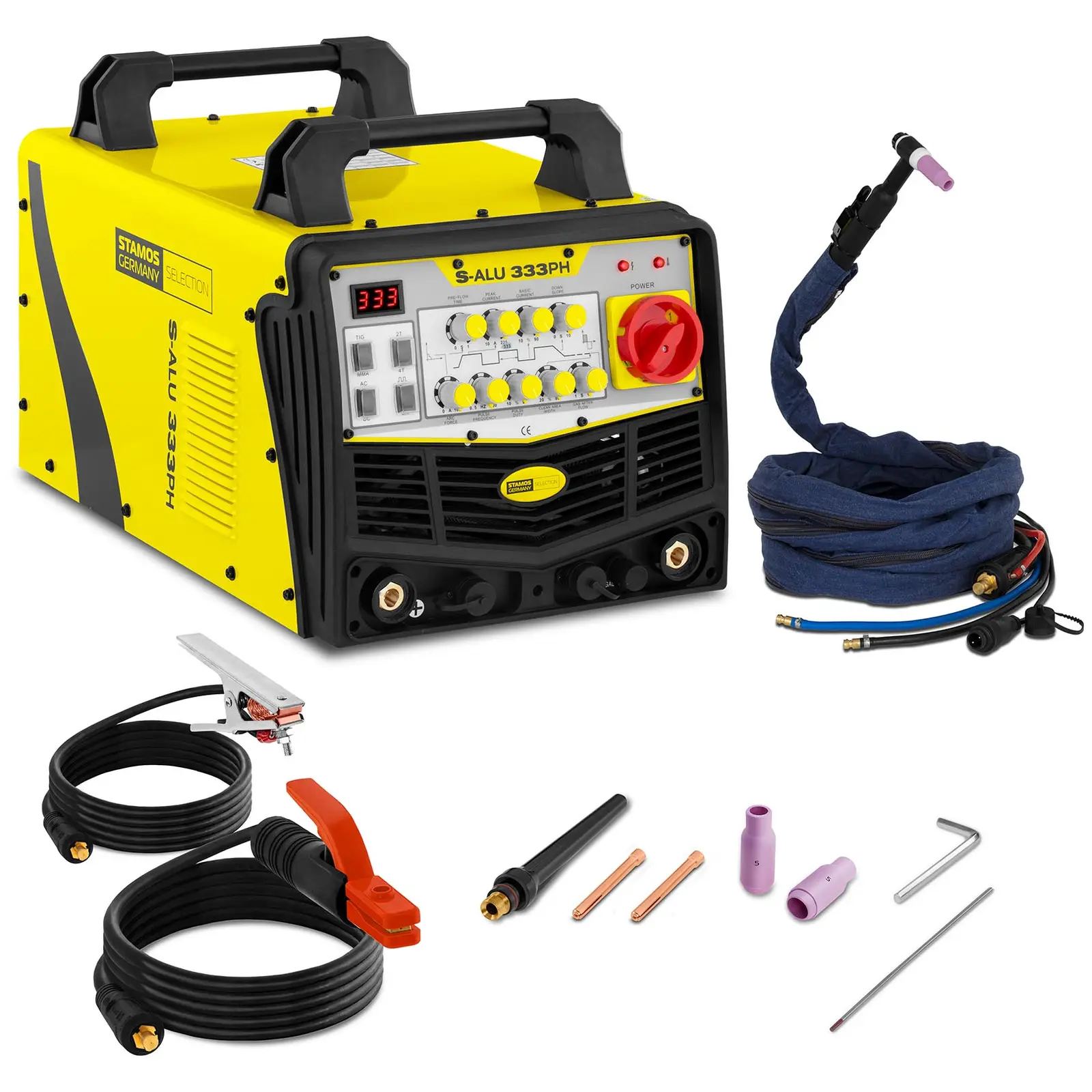

Included:
- S-ALU 333PH
- TIG welding snakes package: 4m
- Electrodes
- ceramic nozzles
- Cable mass: 4m
- Electrode holder: 4m
- Different nozzle holders electrodes
- burner tip
| Model | S-ALU 333 PH (2039) |
| article | New |
| input voltage | 400V, 3-Pharse |
| Frequency (Hz) | 50/60 |
| Input current ef. / Max. | 20/25A |
| Power Idle | 104V |
| Ingress protection | IP215 |
|
insulation class
|
F |
| Overvoltage protection | Tak |
|
cooling
|
Ventilator |
| Switch changes mode 2 and 4 | Yes |
| Gas-magnetic valve | Yes |
|
Turn-on time ED 100%
|
261A |
| Turn-on time ED 60% | 333A |
| Current DC TIG | 10 - 333A |
| AC TIG Welding current | 10 - 333A |
| Current manual electric arc welding MMA | 10 - 250A |
| TIG ignition | HF – high frequency |
| impulse current | 20 - 333A |
|
pulse frequency
|
0,5 - 300Hz |
| pulse length | 0,1 - 0,9 (10 - 90%) |
|
Remaining braking time gas
|
1 - 10Sek. |
|
thickness of weld
|
0,5-12 mm |
| Current reduction time (Down Slope) | 0-10 Sek. |
| Cross section of electrodes TIG | 1 - 4mm |
|
MMA electrode Cross section
|
1 - 5mm |
|
Remote control Connection
|
yes |
| ARC - Force | yes |
| Hot-Start/Anti-Stick | yes |
| construction according with | EN 60974-1 |
| protection | Tak |
| Dimensions (LxWxH) | 60 x 40 x 37 cm |
| weight | 37 kg |
| Shipping Dimensions (LxWxH) | 72 x 46 x 46 cm |
| shipping Weight | 47 kg |
 |
MOSFET technology was used. Compared to energy consumed we receive a disproportionate power. Result is a 93% effectiveness! As a result, current gains high stability and welds are downright perfect. Only by using MOS-FET device it is so small and light.
|
 |
VENTILATORS HIGH POWER - high performance fans provide optimum cooling of unit during operation. |
 |
CURRENT INTENSITY - Device uses a 3-phase power (400 V + / - 10%). |
 |
LED indicator - indicates current amperage |
 |
LED overload / failure - Light is lights up in the following two situations:
a) if machine is down and can not be operated, and b) if machine exceeds standard time workload, turns on the protective mode the engine stops and stops to cool down of overheating and again take control of the temperature. For this reason, machine stops. During this event the red emergency lamp on the front of the chassis. You do not have time to pull the power cord. In order to cool down machineventilator can continue to operate. When the machine reaches normal temperature, the light goes off and machine can be restarted. |
 |
WIG / TIG - in contrast to metal welding shielding gas MIG / MAG welding, in case of TIG welding arc between glows without melting of tungsten electrode and the weld material. In order to protect the electrodes of tungsten and the weld, it is necessary to use inert gases such as argon and helium or mixtures thereof of no oxidizable components. TIG welding can be used for all metals undergoing melting during welding. Selection of current bias and a protective gas, depending on the type of material being welded. This device works TIG torch provided with a tungsten electrode and sheath, argon or another protective gas depending on the type of material. Our experts recommend the use of red tungsten electrodes for steel / stainless steel, black steel and cast iron and gold and gray for use universal. Depending on thickness of the sheet metal, we recommend the following tungsten electrodes Sheet Metal (0,5-1mm) = electrode with a thickness of 1.6 mm
Normal (1-6mm) = electrode with a thickness of 2.4 mm thick (more than 6 mm) = electrode having a thickness of 3.2 mm |
 |
MMA - Here are connecting the latest inverter technology on small areas. This enables us to weld electrodes thickness up to 4.2 mm in excellent quality. Thanks to the extremely low weight, the device is ideal both for light assembly work, and particularly heavy construction work. Automatically adjusts ignition energy (in both HF and LiftArc) provides the best features of ignition. |
 |
IGNITION HF - it is a high frequency contactless ignition used in TIG welding, which provides a very clear starting point welding. |
 |
AC / DC - This inverter, we can weld up to 333 amperes using 60% effective under direct current (DC) or alternating current (AC). This allows device to weld any metals. For welding light metal, eg. Aluminum and titanium, we use AC current and welding of structural steel and automobile DC current. Device also uses a MOS-FET technology. Compared to energy consumed we receive a disproportionate power. Result is a 93% effectiveness! |
 |
CLEAN WD - current control positive and negative in order to obtain various degrees of fusion weld material. However, it has meaning only when welding aluminum. |
 |
ANTI-STICK - This feature prevents melting of the electrode, because the current is automatically reduced. |
 |
PULSE FQ - frequency of movement of waves per unit of time (welding pulsed) |
|
PULSE DUTY CYCLE - adjusting duty cycle pulsed current. |
 |
Mode 2 PULSE - Action welding is initiated by pressing the torch switch is released after the device enters DOWN SLOPE. If you go DOWN SLOPE or POST TIME you press the torch switch, welding starts again. Mode 4 PULSE - Action welding is initiated by pressing the torch switch, and only after it is pressed again function is activated DOWN SLOPE. |
 |
BASE CURRENT - Current low level. It works only when the pulse welding mode. This is done during pulse welding to change modes of the normal current (CURRENT) on current low level.
|
 |
DOWN SLOPE - Automatic stepless welding current reduction after the expiry arc flame in order to prevent incorrect connections welding. Adjustable second for. |
 |
POST TIME - Remaining braking time gas stream regulated of an accuracy of seconds. This adjustment is important to cool the melted and welded material and its protection from oxidation. |
 |
HOT START - This function allows the ignition of electric arc in case of of electrodes problematic, because the voltage at the start automatically increased. When you initiate the ignition, the unit automatically switches to the preset voltage. |
 |
ARC FORCE - When welding electrodes with of electrodes base comes to pass weld material in the liquid state, to initiate a faster transition to such a state, increase the current when the electric arc becomes too short. |
 |
GAS PROTECTION - To TIG / TIG, it is necessary protective gas (eg. Argon) |
|
Connection weight between terminals - here ground terminal is connected to other end connects with subject workpiece. |
 |
CONNECTION CONTROL foot pedal Unit can be controlled from a distance with a foot pedal. This pedal can be obtained from us. |
