WELDER S-ALU 225 PH

Model:

S-ALU 225 PH

Condition:

New

Input voltage:

230V, 1-Phase

Frequency (Hz):

50/60

Input current eff./max.:

16/22A

Open circuit voltage:

75V

Degree of housing protection:

IP215

Insulation class:

F

Overvoltage protection:

Yes

Cooling:

Fan

2 T and 4 T change-over switch:

Present

Gas solenoid valve:

Yes

Duty cycle ED 100%:

160A

Duty cycle ED 60%:

225A

Welding current DC WIG:

10 - 225A

Welding current AC WIG:

10 - 225A

Welding current E-Hand:

10 - 225A

Ignition WIG:

HF - High-frequency

Pulse current

10 - 225A

Pulse frequency:

0,5 - 300Hz

Pulse width:

0,1 - 0,9 (10 - 90%)

Gas after-flow:

1 - 10 Sec.

Thickness of welding:

0,5-10 mm

Down Slope:

0-10 Sec.

Electrode diameter WIG:

1 - 3,2mm

Electrode diameter MMA:

1 - 4mm

Remote control unit:

Yes

ARC - Force:

Yes

Hot-Start/Anti-Stick:

Yes

Safety:

Present

Dimension (LxBxH):

60 x 40 x 37 cm

Weight:

31 kg

Shipping dimension (LxBxH):

72 x 47 x 48 cm

Shipping weight:

40 kg

MOSFeT = This inverter uses the MOSFET technology. This technology increases performance achieving an efficiency factor of 93% with the same amount of electricity. The remains very stable, resulting in a perfect weld. Thanks to the MOSFET technology the welding machine can be designed to be extremely small and lightweight.

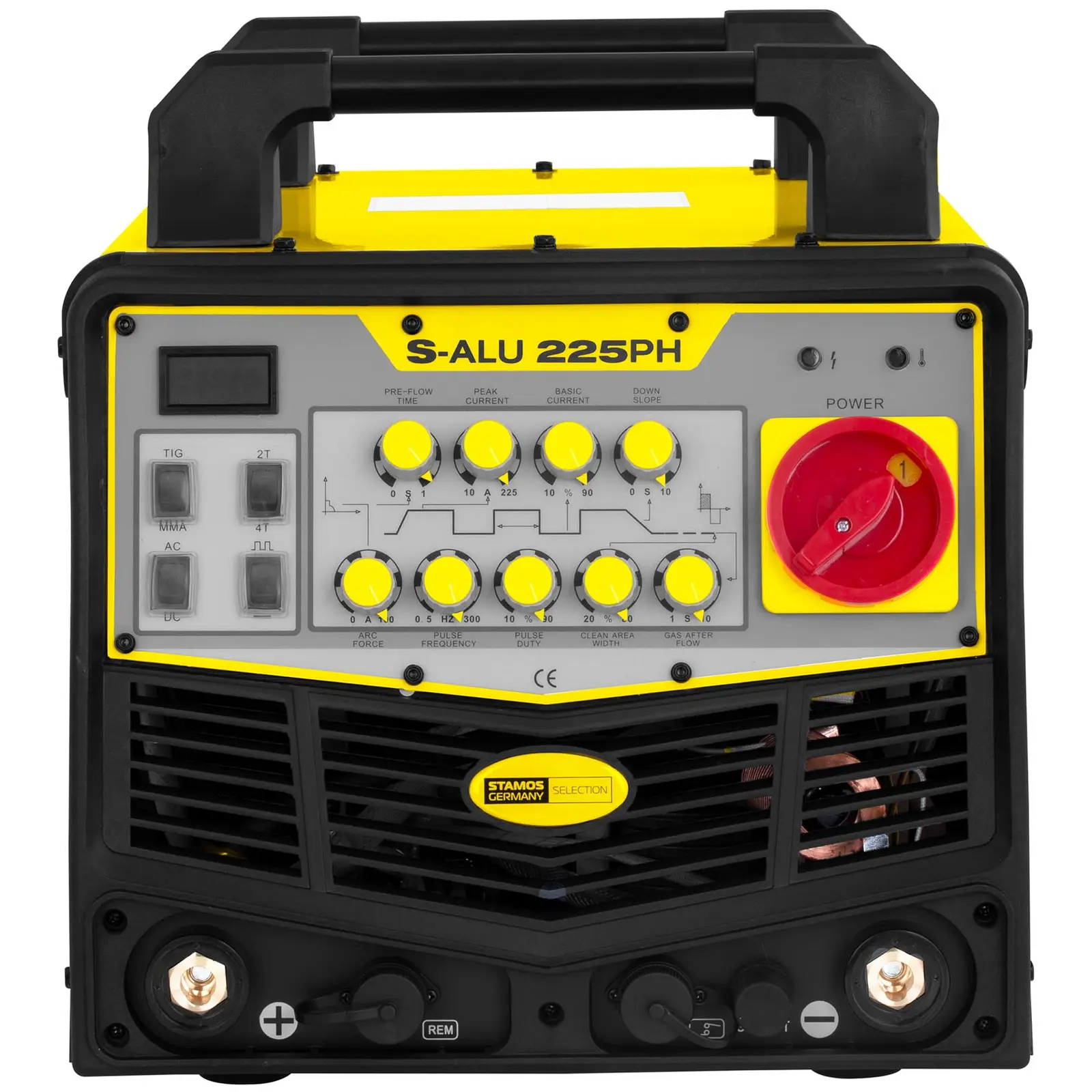

PEAK AMP. - CURRENT PEAK - peak current pulse mode. In TIG mode, this knob is adjusted welding current

BASE AMP. - CURRENT BASE - arch support current pulse mode.

DOWN CURRENT SLOPE - CURRENT fall - time during which output current falls from the value of welding current for current endpoint.

GAS POST-FLOW - time gas flow after welding. Function is used to cool weld and protecting it from oxidation.

CLEAN AREA WIDTH - (BALANCE OF CURRENT AC) percentage of difference in time and minus of positive direction of current in one period the welding current.

PULSE DUTY - filling PULSE - is a ratio of pulse duration to period of pulse. Parameter set PULSE TIG mode.

Freqency PULSE - pulse frequency - Frequency of pulses during welding pulse mode.

ARC FORCE - Adjustablearcdynamics.

MODE -SWITCHMODE-TIG/TIGPULS.

PULSE TIG - means TIG pulse function. This function allows to reduce the amount of heat supplied to material. Ideally suited for welding of thin sheet metal.

SWITCH "AC / DC" - TIG welding divides into AC (alternating current) and DC welding (DC).

AC Mode - In this mode it is possible to weld aluminum and non-ferrous metals (brass, bronze).

DC Mode - In this mode, you can weld stainless steel, alloy steel (VA) and non-alloy.

MODE - SWITCH MODE - TIG / MMA

TIG - TIG welding means.

MMA -meanswelding ofcoated electrode.

SWITCH "4T / 2T" - if you choose the "4T / 2T" TIG welding divides process into action, "2T" (without support) and of "4T" (with backup). "4T / 2T" are available in both DC and AC.

FUNCTION "2T" - means starting welding by pressing switch on handle and stops machine when you release button.

FUNCTION "4T" - pressing a button on handle an electrovalve opens, followed by an initial gas flow. After outflow of gas the arc electric arc. After ignition current will be initial current value. After releasing button, output current increases to current welding. Stopping welding process again after a quick press a button on the handle.

LED-digital display.

WARNING - WARNING LIGHT OVERLOAD THERMAL - When unit overheats lamp lights up and unit shuts off. Do not attempt to re-start welding, leaving unit with air fan turned on. Indicator light turns off automatically after cooling device. Should pay attention to rated duty cycle.
