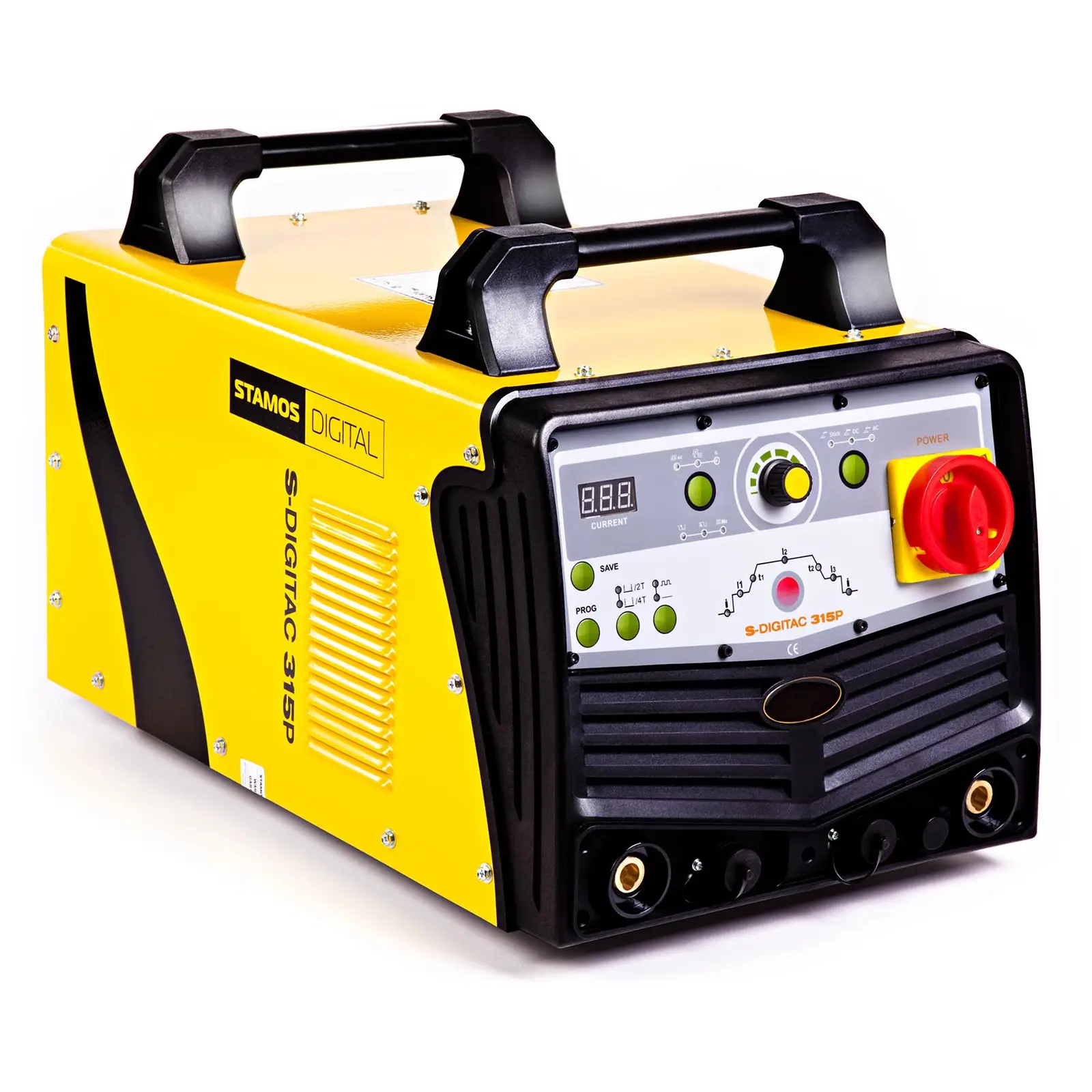

Welder S-DIGITAC 315P TIG DC AC
Availability:
out of stock
Description
Welder S-DIGITAC 315P TIG DC AC
STAMOS WELDING GROUP presents product line SELECTION series, designed for professional use. SELECTION series devices combine advanced technology, increased productivity, along with a modern look.
Digitac welder S-315P is a device with a robust, compact design. Clear fully digital control panel with clear descriptions illustrated graphics, makes the operation of machine becomes simple and intuitive. With ability to store programs change parameters for a predetermined set of materials it takes a few seconds.
Availability of AC and DC modes makes, our machine can weld steel, stainless steel and non-ferrous metals including aluminum. To work with S-Digitac 315P was efficient, and quality of welds at highest level supplied by manufacturer welder in function 2T / 4T, PULS, balance, time downslope, current start and end (helps to remove craters end of weld), regulated flow of gas before and after welding.
Selection of parameters when changing work piece to facilitate programs that can be stored in device memory. MMA is supported by functions HOT START ARC FORCE ANTI STICK, so that welding by this method becomes easier.
| model | S-DIGITAC 315P |
| catalog no. | 2066 |
| condition | new |
| nominal input voltage [V]: | 400V, 3-pharse |
| network frequency [Hz]: | 50/60 |
| rated input current [A]: | 9,7 |
| maximum input current [A] | 13,7 |
| rated output power [kVA] | 6,4 |
| maximum output power [kVA] | 9 |
|
load voltage [V]
|
45 |
| DC TIG Welding current [A] | 10-315 |
| AC TIG welding current [A] | 10-315 |
| MMA welding current [A] | 10-295 |
| rated duty cycle [%] | 60 |
| welding current duty cycle 100% [A] | 244 TIG |
| welding current duty cycle 60% [A] | 315 TIG |
| welding current duty cycle 35 [A] | |
| current pulse (pulse mode) [A] | 10-315 |
| pulse frequency in AC mode [Hz]: | 0,3-20 |
|
frequency of pulses in DC mode [Hz]:
|
0,3-20 |
| filling impulse [%]: | 10-90 |
|
output current frequency AC [Hz]
|
20-100 |
| balance AC [%] | 10-90 |
| solenoid gas | yes |
|
time gas flow before welding [s]:
|
0-2 |
|
time after welding gas flow [s]:
|
0-9,9 |
|
rise / fall time current [s]
|
0-9,9 |
| TIG electrode diameter [mm] | 1-4 |
| MMA electrode diameter [mm] | 1-5 |
| TIG ignition | HF |
| ARC-Force | yes |
| Hot Start | yes |
| AntiStick | yes |
| remote Connection | yes |
| switch mode change 2 and 4 TAKT | yes |
| cooling housing |
ventilator
|
| method of cooling holder | Air / liquid * |
| weldable thickness [mm] | 0,5-15 |
| power factor: | 0,93 |
| efficiency (in nominal terms) | ≥0, 85 |
|
insulation class
|
F |
| construction according to | IEC 974-1 |
| quality mark | CE |
| level of security: | IP21S |
| dimensions (LxWxH) | 60 x 33 x 37,5 cm |
| weight | 42 kg |
| shipping dimensions (LxWxH) | 72 x 48 x 47 cm |
| shipping weight | 45,7 kg |
 |
Device uses MOSFET technology. Compared to energy consumed we receive a disproportionate power. Result is 93% effectiveness! As a result, current gains high stability and welds are perfect. Only through use of technology MOSFET device is so small and light. |
 |
POWER - power switch |
 |
SELECT AND PARAMETERS - parameter selection button - indicator light shining indicates currently selected parameter. |
 |
GAS POST-FLOW - time gas flow after welding. Function is used to cool weld and protecting it from oxidation. |
 |
FINAL AMP. - FINAL RACE - current output value before end of welding.
|
 |
CURRENT DOWN SLOPE - slope down - time in which output current drops from welding current to current final |
 |
WELDING AMP. - CURRENT WELDING |
 |
CURRENT UP SLOPE - Current Ramp - time in which output current increases value of initial current to welding current. |
 |
STARTING AMP. - RACE START - output current when arc is struck |
 |
GAS PRE-FLOW - Preliminary GAS FLOW - time gas flow before welding. |
 |
MODE - SWITCH MODE - TIG / TIG PULS |
 |
PULSE TIG - means TIG pulse function. This function allows to reduce the amount of heat supplied to material. Ideally suited for welding of thin sheet metal. |
 |
SWITCH "4T / 2T" - if you choose the "4T / 2T" TIG welding divides process into action, "2T" (without support) and of "4T" (with backup). The "4T / 2T" are available in both DC and AC. |
 |
FUNCTION "2T" - marks start of welding by pressing switch on handle and stops machine when you release the button |
 |
FUNCTION "4T" - pressing button on handle of solenoid valve opens, followed by an initial gas flow. After initial gas outlet of arc arc. After ignition current will be initial current value. After releasing button, output current increases to current welding. Stopping welding process again after a quick press a button on handle. |
 |
PROG - calling programs. Welder has the ability to save programs in the internal memory. After pressing PROG, you can call program you want. |
 |
SAVE - after setting the required welding parameters for a given material SAVE button can be saved in the machine's memory under the number. |
 |
LED -display |
|
SELECT PARAMETERS II - parameter selection button - indicator light lit shows the currently selected parameter.
|
 |
FREQ AC - AC frequency - Frequency of output current in AC mode. |
 |
CLEAN AREA WIDTH - (BALANCE OF CURRENT AC) percentage of time difference and the minus positive direction of current in one period of welding current |
 |
PULSE FREQUENCY - pulse frequency - the frequency pulses during welding pulse mode |
 |
PULSE DUTY - filling PULSE - is the ratio of pulse duration to period of the pulse. Parameter set in TIG mode PULSE |
 |
BASS AMP. - CURRENT BASE - arch support current pulse mode |
 |
PARAMETER ADJUST - KNOB PARAMETERS - if you selected by turning knob to set its value. Welder automatically retains data when power is turned off. You can use them immediately after you turn it on. |
|
SELECT PARAMETERS II - parameter selection button - indicator light lit shows the currently selected parameter. |
 |
STICK - means welding electrode welding (MMA). |
 |
DC TIG Mode - In this mode, you can weld stainless steel, alloy steel (VA) and non-alloy. |
 |
AC Mode - In this mode it is possible to weld aluminum and non-ferrous metals (brass, bronze). |
