PROCAT 1200 Electric overhead crane with electric winch
Availability:
avarage amount
Dispatched within:
24 hours
Description

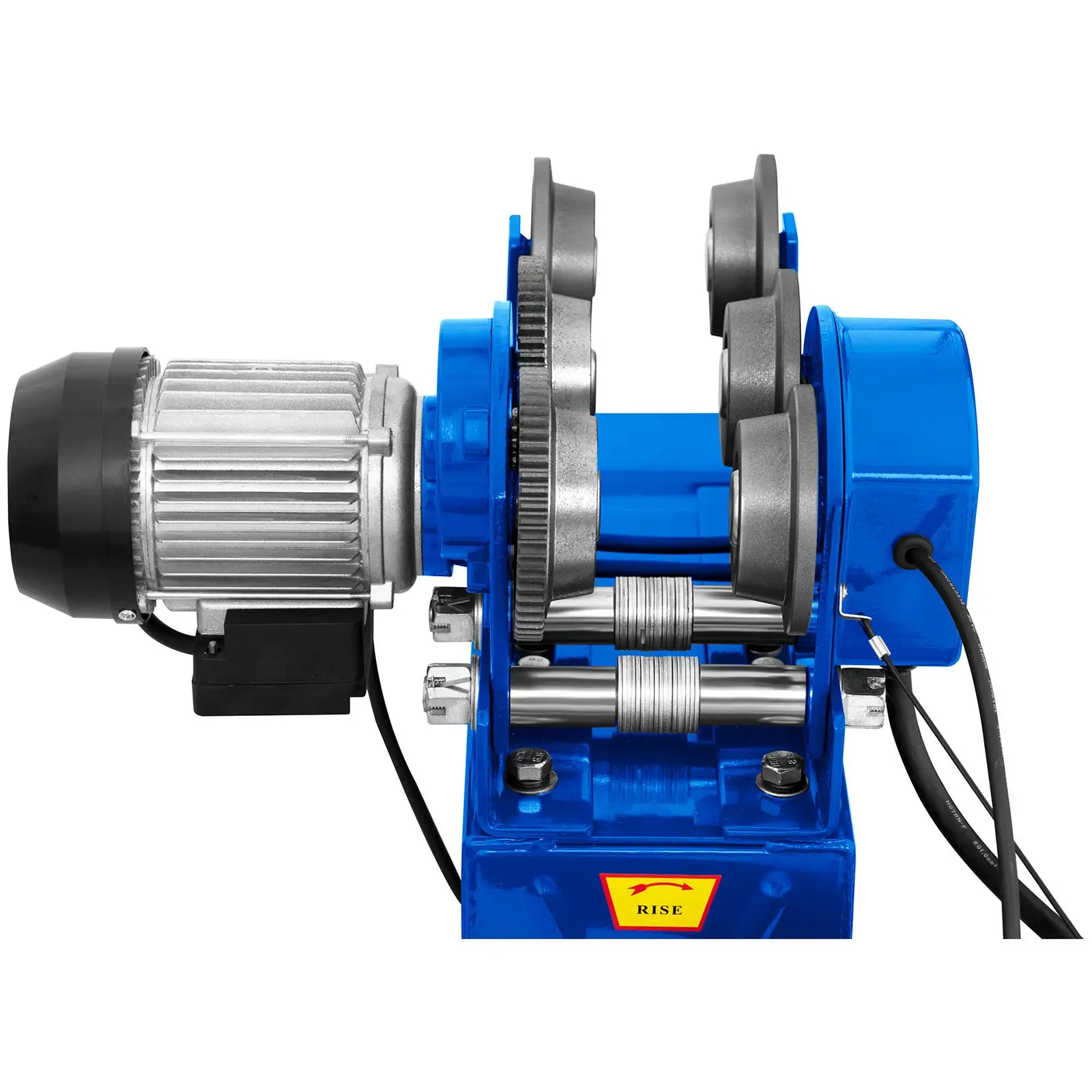

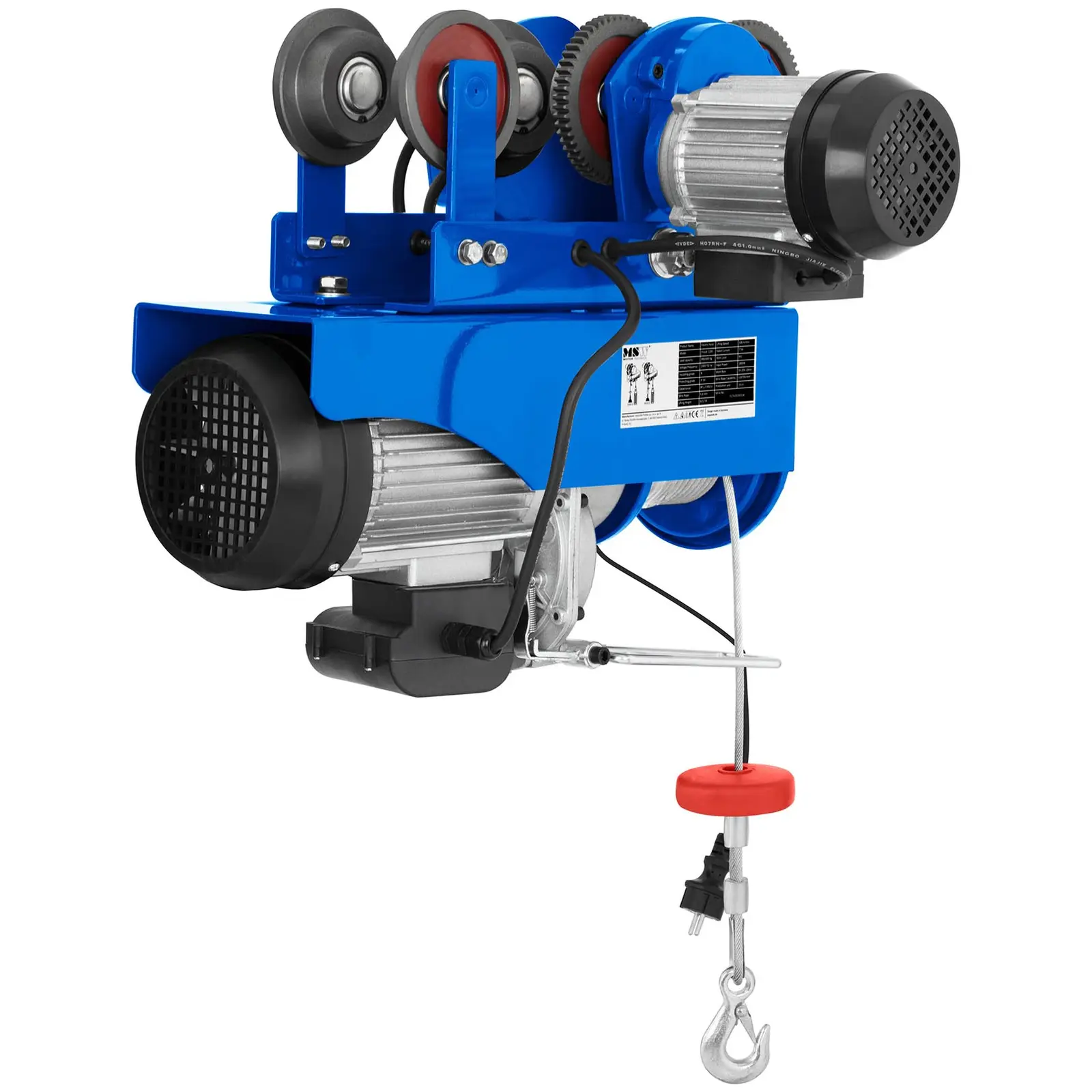

Electric overhead crane with electric winch PROCAT 1200
Included in delivery:
- PROCAT 1200 - combination crane with a winch

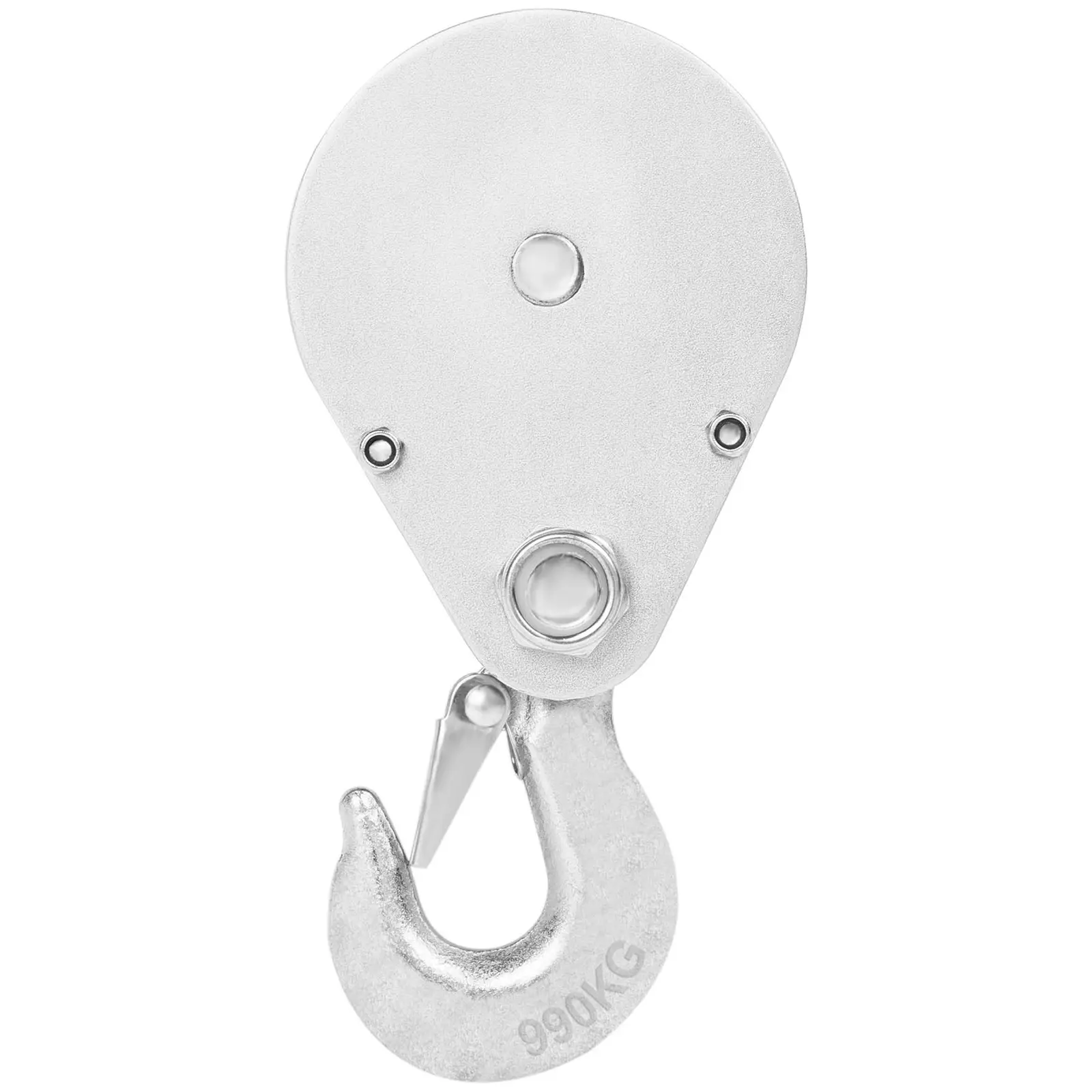

- guide roller with a hook
- instruction
Operation of device requires use of additional steel
support element for crane:
|
Required steel section:
|
|
Steel profile with a wide flange type I or Double T:
Tread width b = 68 do 94 mm height profile h = 110 mm (MINIMUM).
|
| Type | PROCAT 1200 | |
| Control system | SD* | DR* |
| Lifting performance | 495 kg | 990 kg |
| Steel rope CK 45 | � 6 mms | |
| Rope length | 12 mts | |
| Tensile strength of rope | > 3000 kg | |
| Maximum lifting height | 11 mts | 5.5 mts |
| � Lifting speed | 8 mts/min | 4 mts/min |
| � Lowering speed | 9.6 mts/min | 4.8 mts/min |
| Reduction gear� CK 40 | ||
| Material of gear wheels | CK 40 | |
| Type of grease | EP | |
| Electric motor | ||
| Output | 1800w | |
| Power consumption | 230V / 7.8 amper | |
| Protection class | IP 54 | |
| Isolation | KL | |
| Intermittent duty | S3 20% -10 min | |
| Measurements (LxWxH) | 54,00 x 42,00 x 45,50 cm | |
| Weight | 51,00 kg | |
| Dispatch dimensions (LxWxH) | 64,00 x 52,00 x 54,00 cm | |
| Dispatch weight | 56,50 kg |
