PROCAT 800 Electric overhead crane with electric winch

Availability: a lot
Dispatched within: 24 hours
Price: €370.67 €384.00 370.67
Net price: €301.35 €312.19
quantity szt.
add to wish list

Description

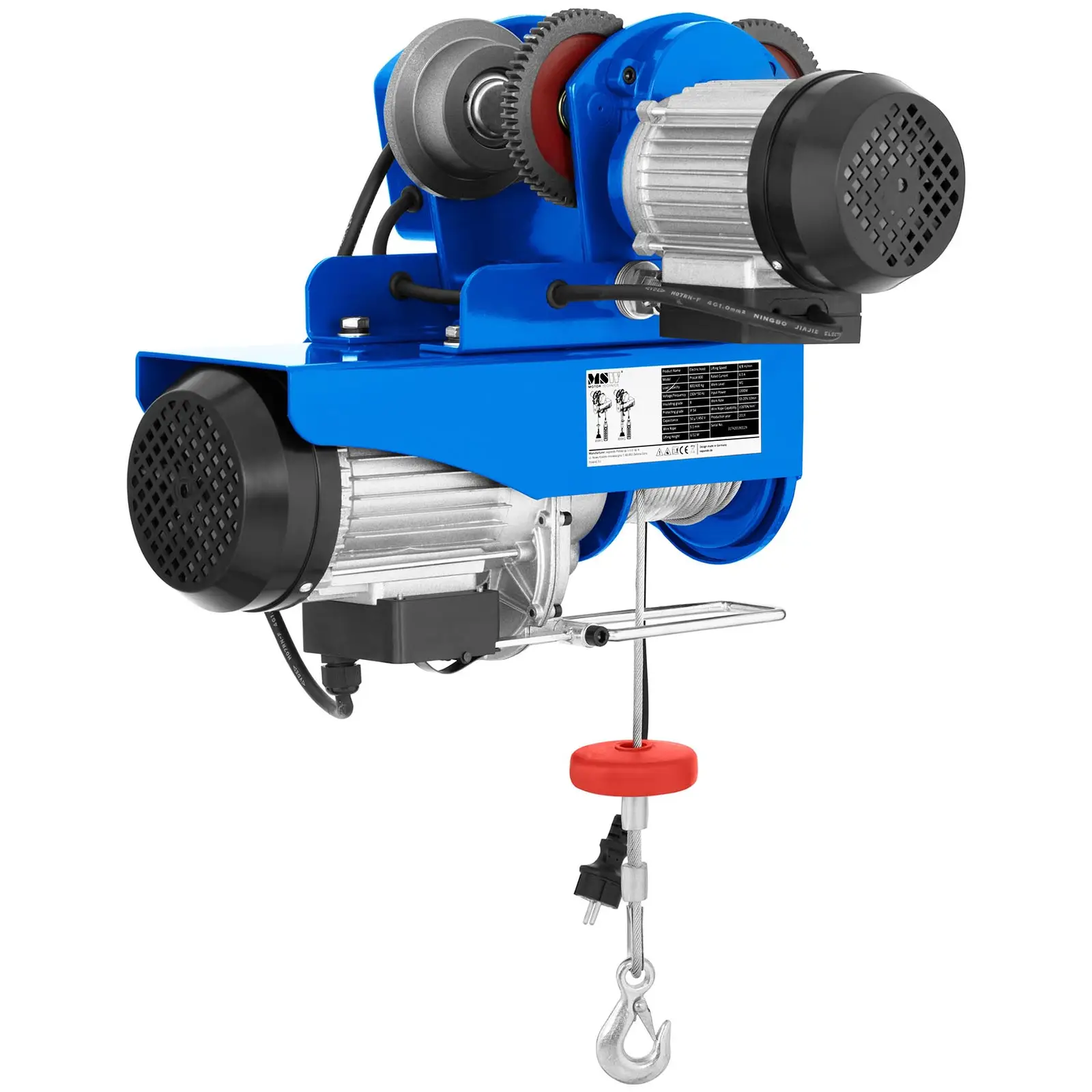

Electric overhead crane with electric winch PROCAT 800

included in delivery:

  • PROCAT 800- combination of overhead crane with winch

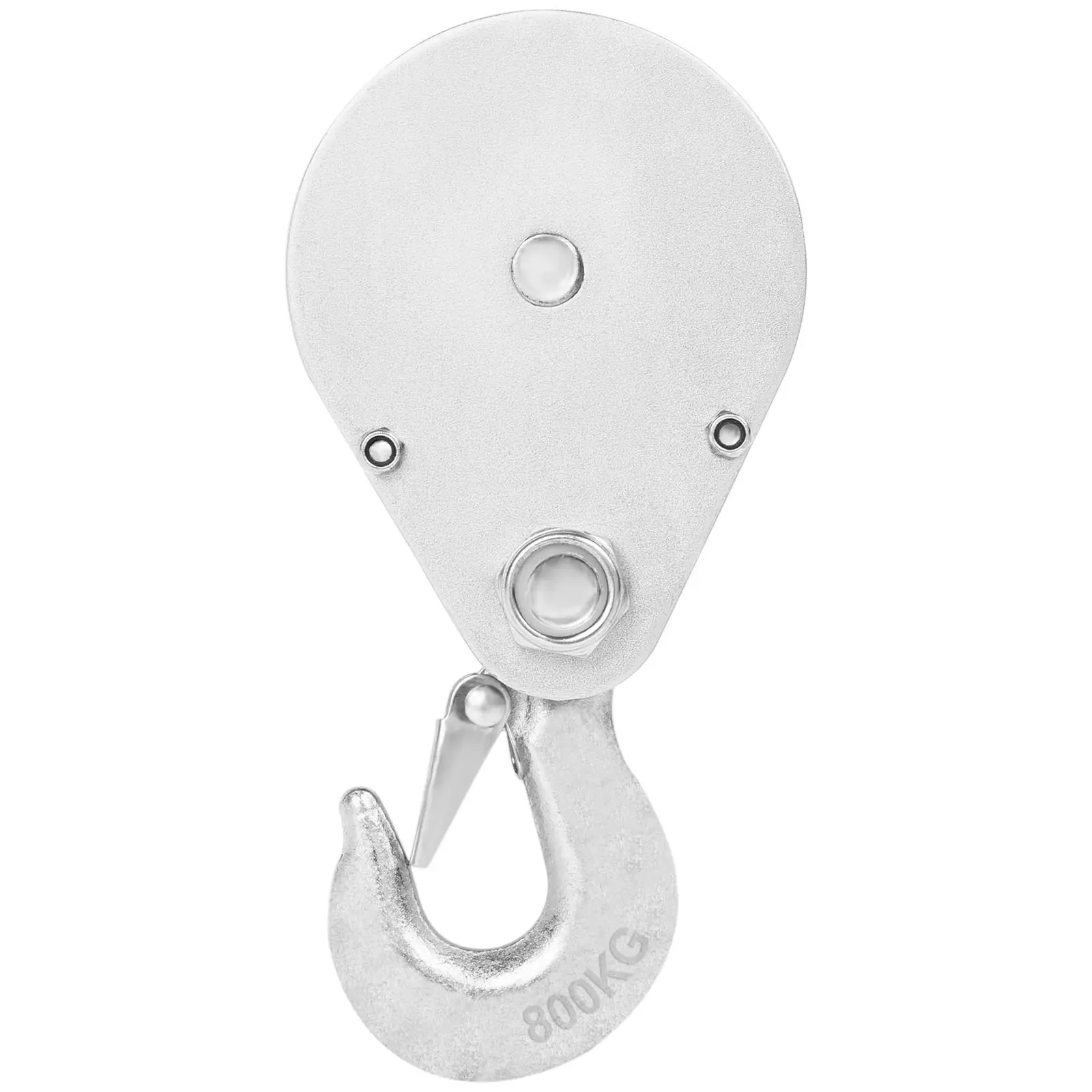

  • guide roller with a hook
  • instruction

Operation of device requires use of additional steel
support element for crane:

Required steel section:

Steel profile with a wide flange I-type or double-T

Tread width b = 68 do 94 mm

height profile h = 110 mm (MINIMUM).


Model PROCAT 800
Control system EZ* UR*
Lifting performance 400 kg 800 kg
Steel rope CK 45  5.1 mm
Rope length 12 m
Tensile strength of rope > 2000 kg

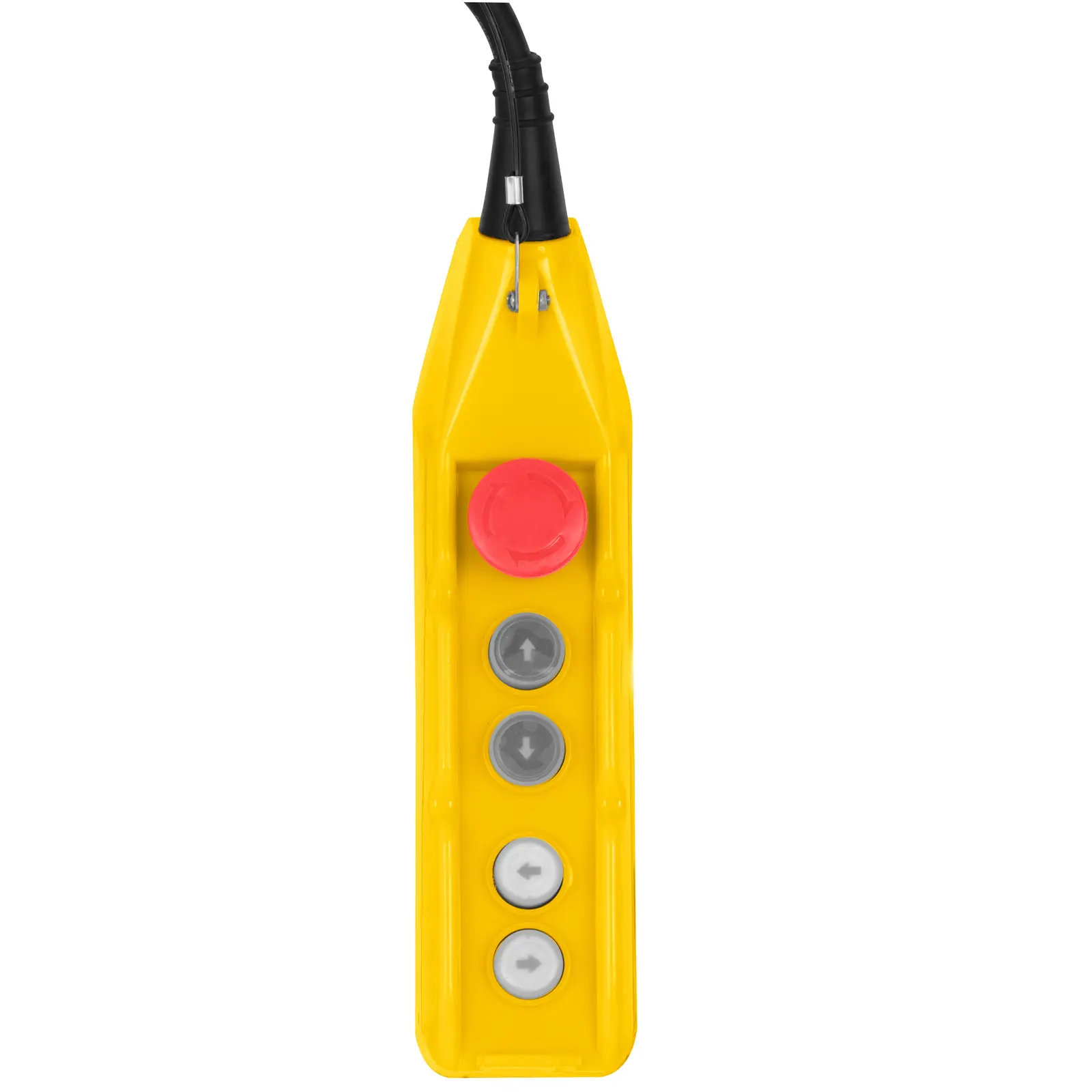

Wired remote control 2.5 m
Max. lifting height 12 m 6 m
Lifting speed 8 m/min 4 m/min
Lowering speed 9.6 m/min 4.8 m/min
Reduction gear
Material of gear wheels CK 40
Type of grease EP<01>
Electric motor
Output 1300 Watt
Power consumption 230 V / 6.3 Ampere
Protection class IP 54
Isolation B
Intermittent duty S3 20% - 10 min
Dimension (LxBxH) 49,00 x 41,00 x 41,00 cm
Weight 35,50 kg
Shipping dimension (LxBxH) 55,00 x 49,00 x 48,00 cm
Shipping weight 39,20 kg
