Description

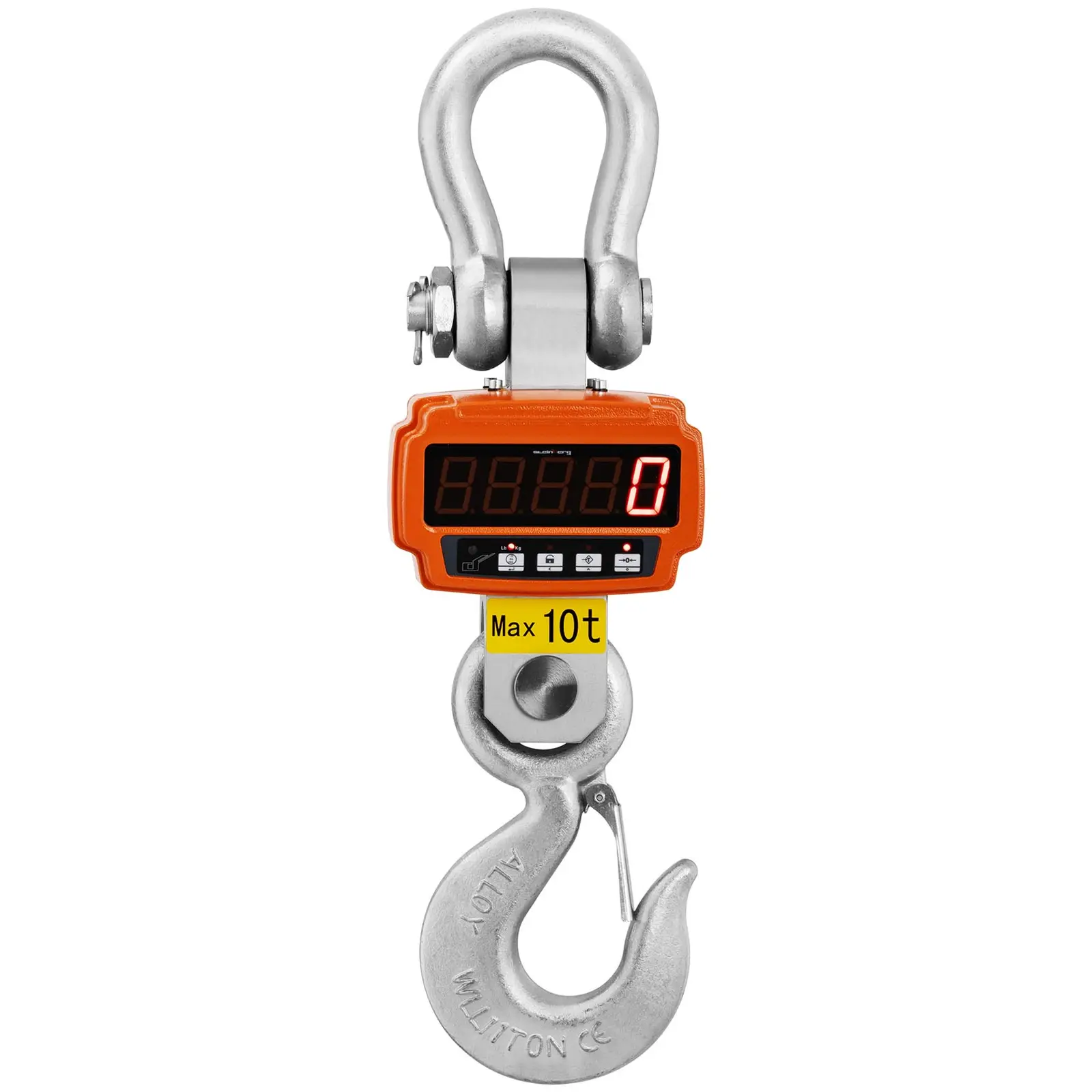

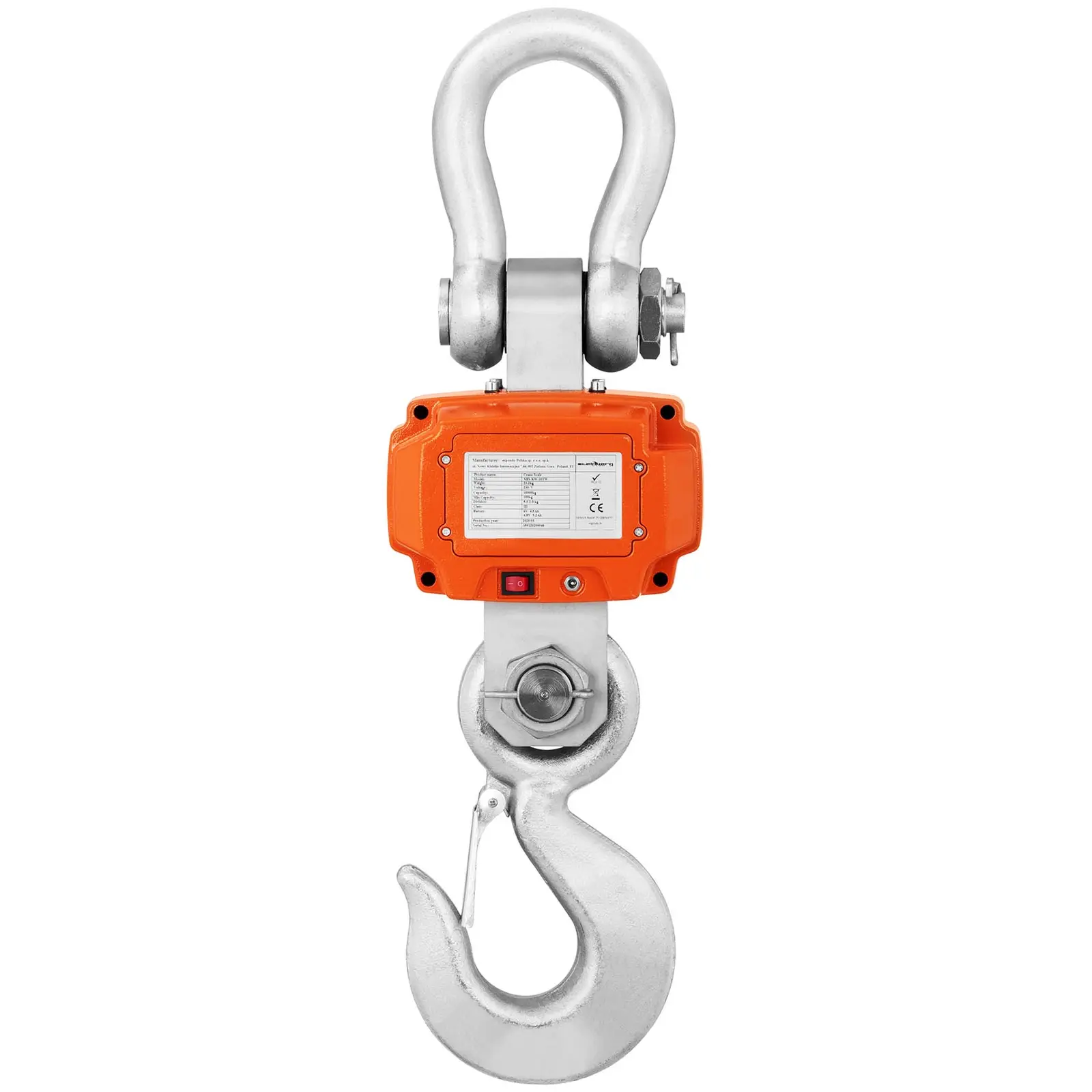

Crane scales Steinberg Systems SBS-KW-10TW

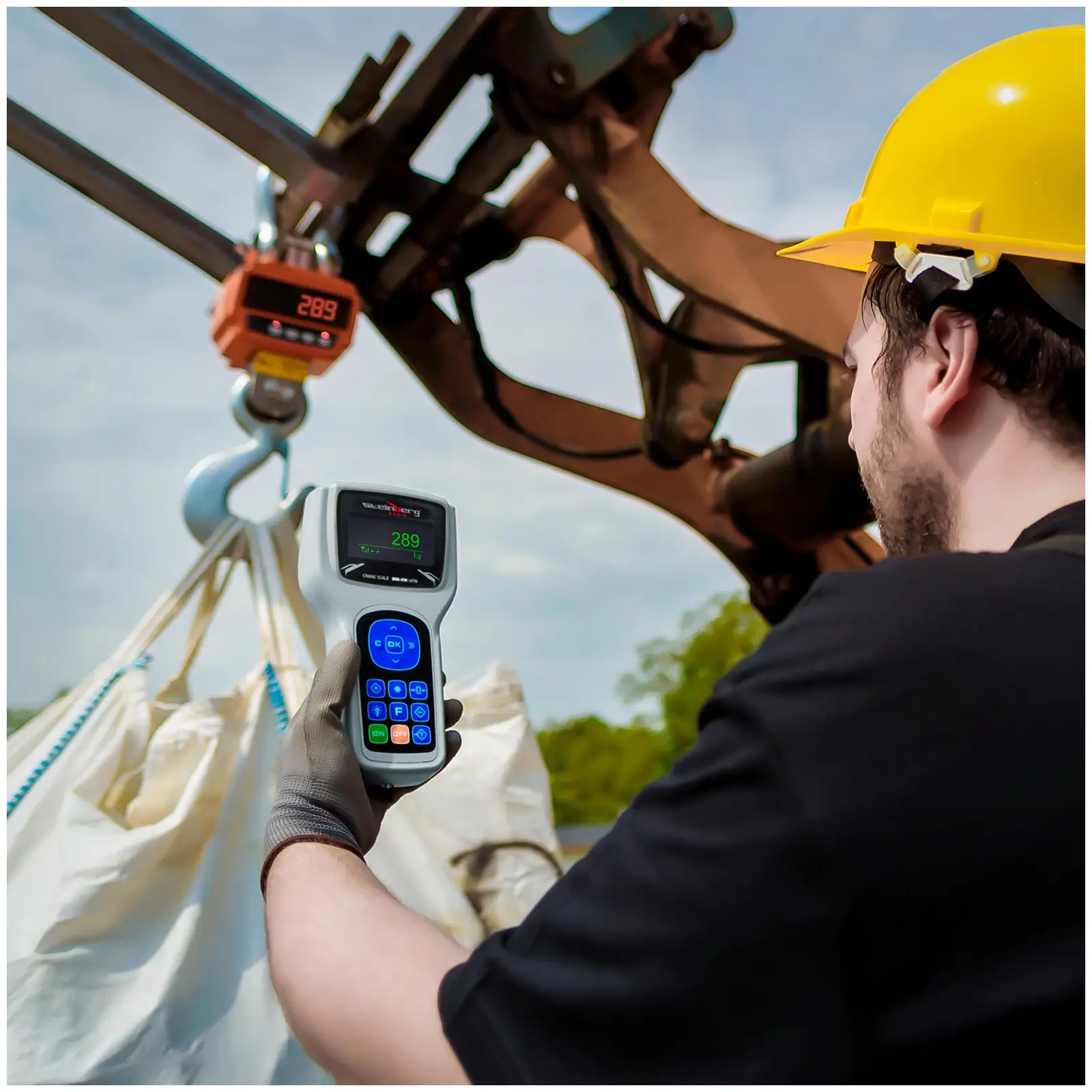

Device has been designed to check weight of 10 tons, a variety of suspended loads. Weight of hook Steinberg Systems finds its application in industrial plants, warehouses and other places where burden of controlled items. Carefully thought-out design, as well as use of durable materials, model SBS-KW-10TW suitable for long-term operation, even in harsh conditions.

Electronic scales Steinberg Systems SBS-KW-10 TW - features and functionse

Durable materials make product reliable. Hook and shackle is made of galvanized steel, which ensures both elements hanging scales Steinberg Systems corrosion resistance. This property also has a rugged, die-cast aluminum housing.

 Hook secured very well protects load from slipping out of it. Strengthens stability of suspended object during weighing. Solution increases  safety of equipment.

Two remote controls are additional distinguishing elements of set offered a model of SBS-KW-10TW. They allow mobile support weight of even several meters away. Large remote control (with a wide selection function) has a range of up to 200 m, and a small 15 m. All these elements are included in kit offered weight. Options pilots presented in "Functions".

Numerous functions, which is equipped with weight of hook SBS-KW-10TW provide its extensive use in accordance with user needs. Model has options such as:



  • Calibration
  • Overload warning signal (graphics and sound)
  • Taring
  • Sleep mode and automatic shut-off

  • Stop result
  • Reset
  • Change accuracy of electronic scales (2 or 5 kg)
  • Conversion weighing units (kg, lb)



Large and easy to read LED display (in weight) clearly shows weighing result. Presented digits is 30.5 mm. Described component will work in almost any lighting condition. Large remote control has an LCD display with adjustable brightness level.

Power weight of ensures battery (6V / 4,5Ah). Weight pendant can also use power supply - AC 110-240 V input, DC 6V / 1000 mA output or AC 110-240 V input, DC 3.6-6 V / 1000 mA output. In a large remote uses accumulators (4.8 V / 3.2 Ah) and a backup battery CR2032. Small remote control uses AAA batteries (2 pieces)

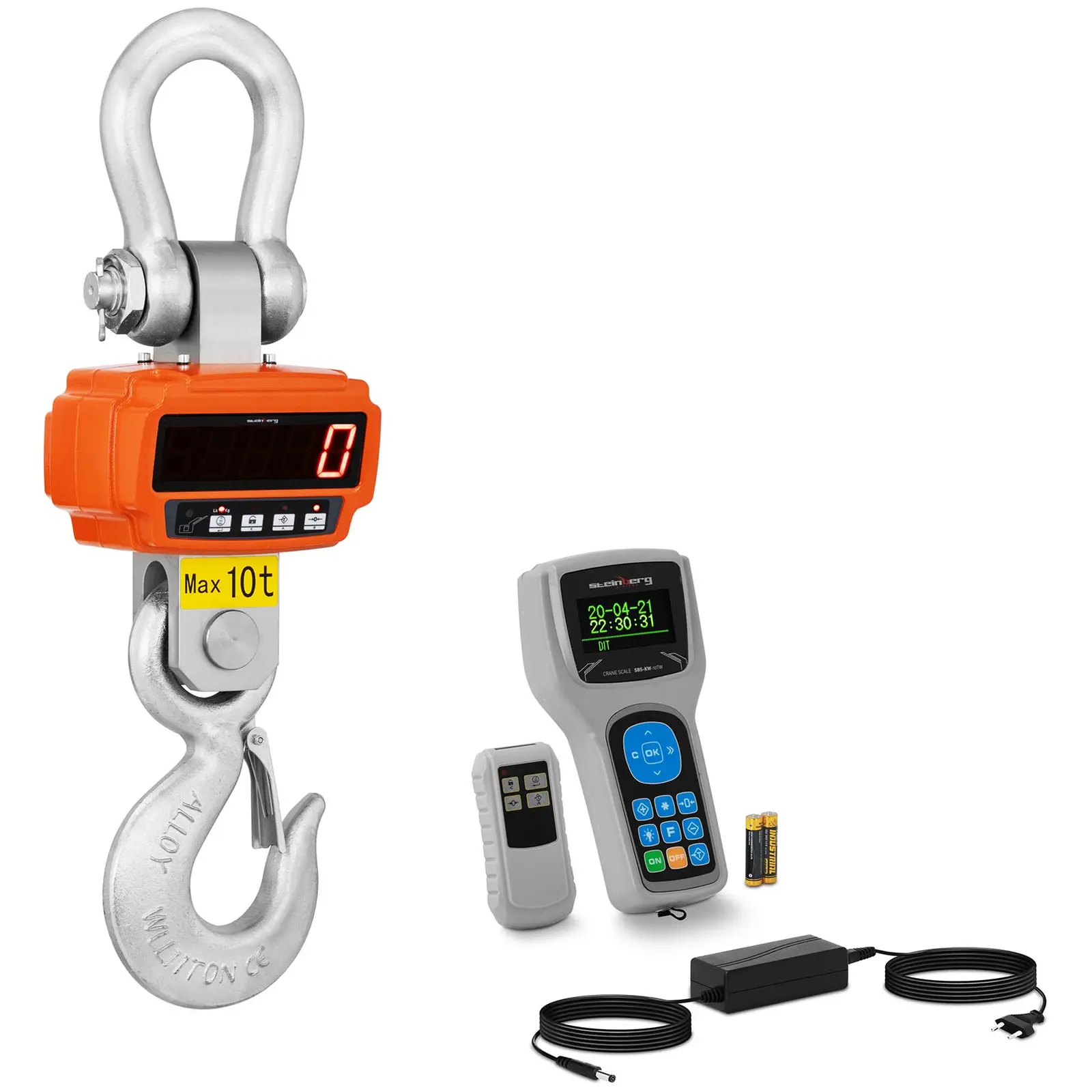

Set included

  • Crane scale
  • remote control x2
    with accumulators and batteries
  • Power supplies x2



Article SBS-KW-10TW
catalog no. 3109
conditions new
weighing range from 100 to 10000 kg
graduation
2 or 5 kg (selection)
weighing units kg, lb
overload 150% load capacity
housing material Cast aluminum
Material hook and furious galvanized steel
scale display LED
display remote control LCD
Height digits on LED display 30,5 mm
Operating temperature range from -10 to +40 °C
Made in accuracy class III
Functions Resetting
Taring
Stop result
Adding weight of load
security level IP21
Supply large remote control 2 accumulators 4,8 V / 3,2 Ah, backup battery CR2032, power supply AC 110 - 240 V input, DC 6 V / 1000 mA output
Supply small remote control 2 x battery AAA
Power weight of Lead batteries for recharging 6 V / 4,5 Ah, AC 110 - 240 V input, DC 3.6 - 6 V / 1000 mA output
Operating time on battery weight of > 150 godz.
Dimensions (LxWxH) 17,5 x 19,5 x 72 cm
Weight 23 kg
Shipping dimensions (LxWxH) 46 x 36,5 x 29,5 cm
Shipping weight 25 kg





Functions large remote control

  • 1./3. Change parameter values
  • 2. Change values of date and time
  • 4. Exit from a submenu to menu above
  • 5. Confirmation of entered data
  • 6. Data save when you add
  • 7. Review of recorded data when you add
  • 8. Reset
  • 9. Deleting recorded data when you add
  • 10. Unassigned
  • 11. Adjust display backlight
  • 12. Enabling remote control
  • 13. Turning off remote control
  • 14. Taring

Function small remote control

  • 1. Stopping
  • 2. Adding weight of load / Move to front through menu
  • 3. Reset
  • 4. Taring
