Crane Scales - 5 t / 1 kg - remote display LED+LCD

Availability: a lot
Dispatched within: 24 hours
Delivery: The price does not include any possible payment costs check the delivery methods
Gross price: €601.87 601.87
Net price: €489.32
quantity szt.

product unavailable

add to wish list

Description

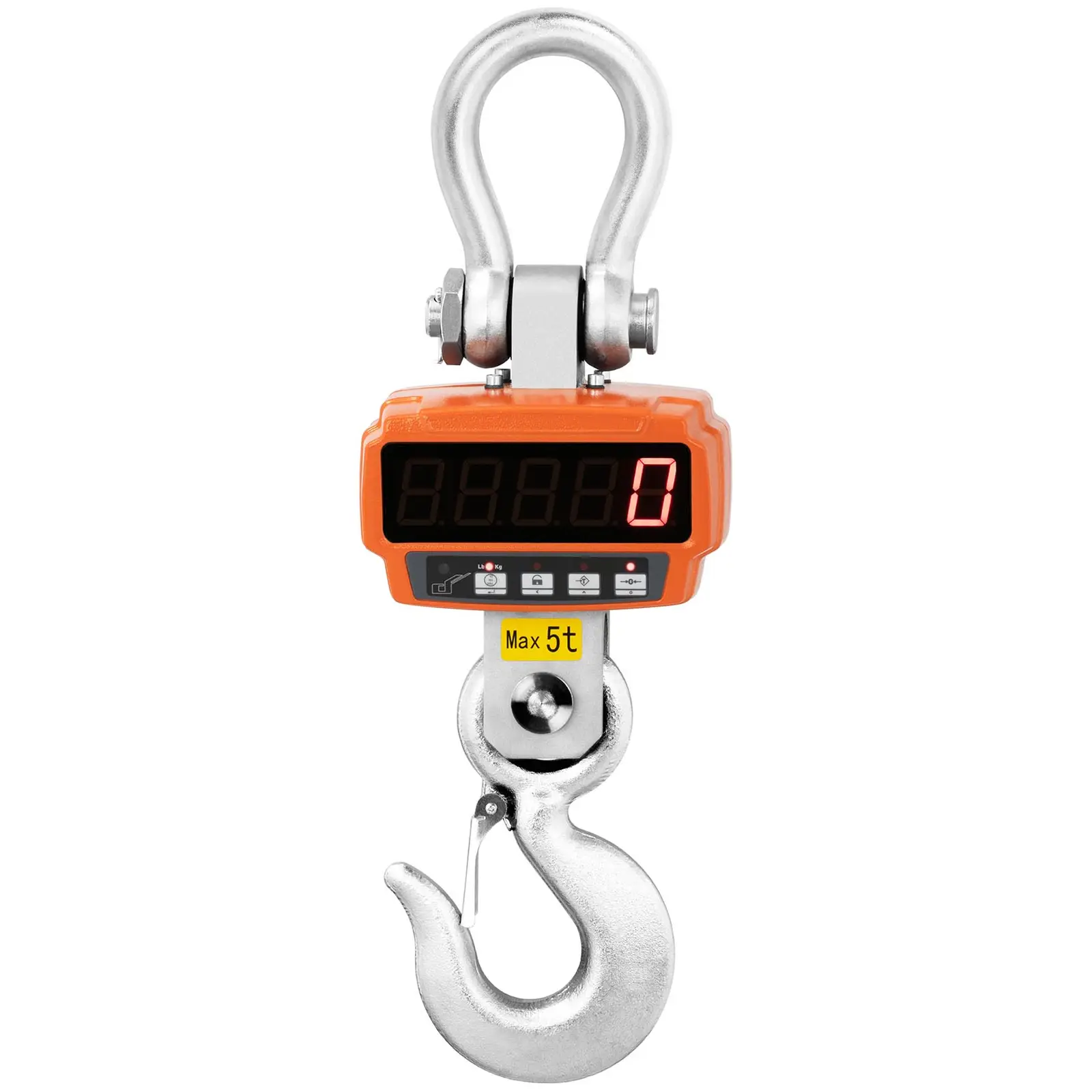

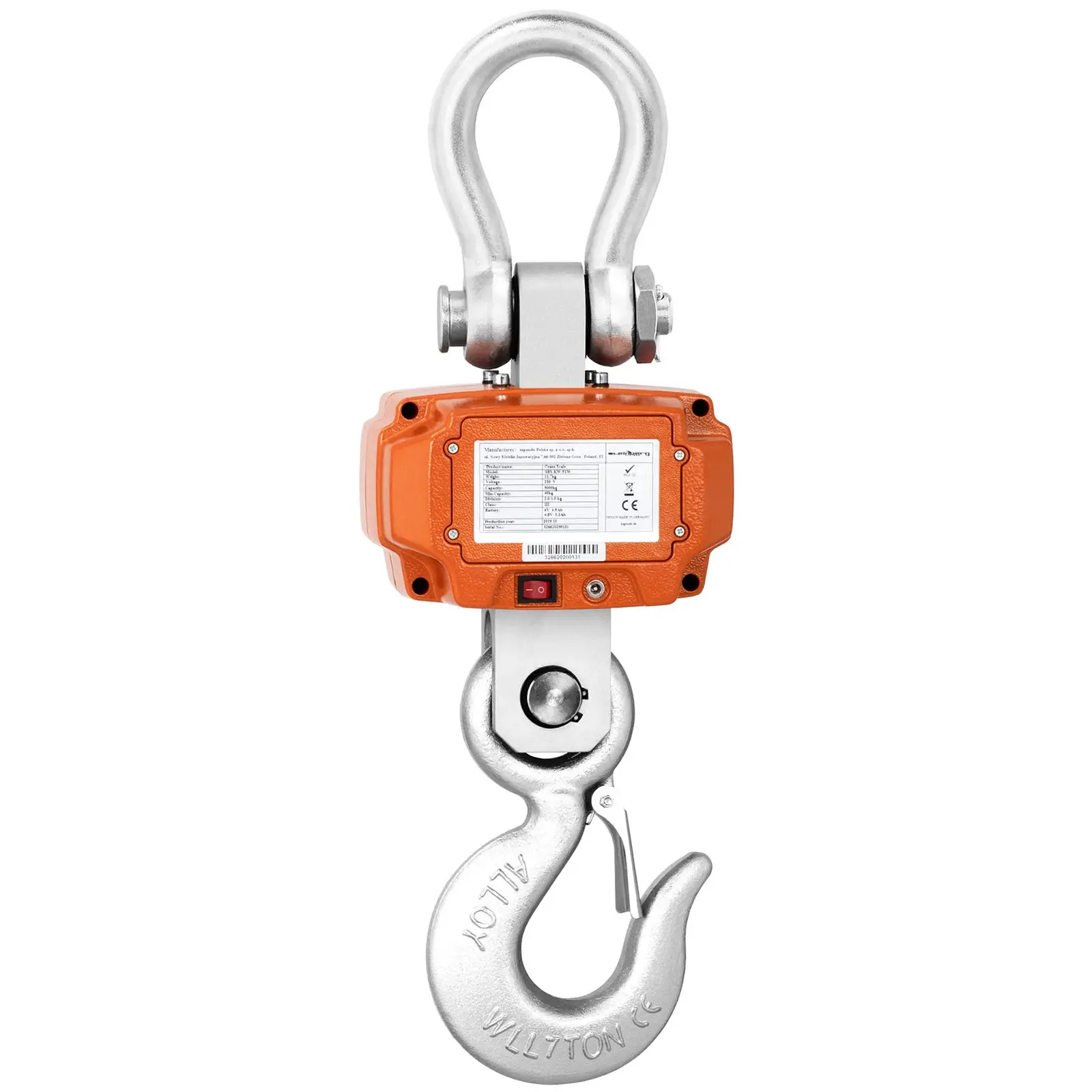

Crane scale Steinberg Systems SBS-KW-5TW

Electronic scales Steinberg Systems of hook able to bear the 5-ton objects and determine their weight with an accuracy of 1 or 2 kg. Model SBS-KW-5TW can be used in production, industry and trade (both wholesale and retail). Offered weight of of hook works in two weighing units: kilograms and pounds. It is equipped with remote controls that allow you to control device from a distance.

Suspended electronic scales SBS-KW-5 TW - characteristics

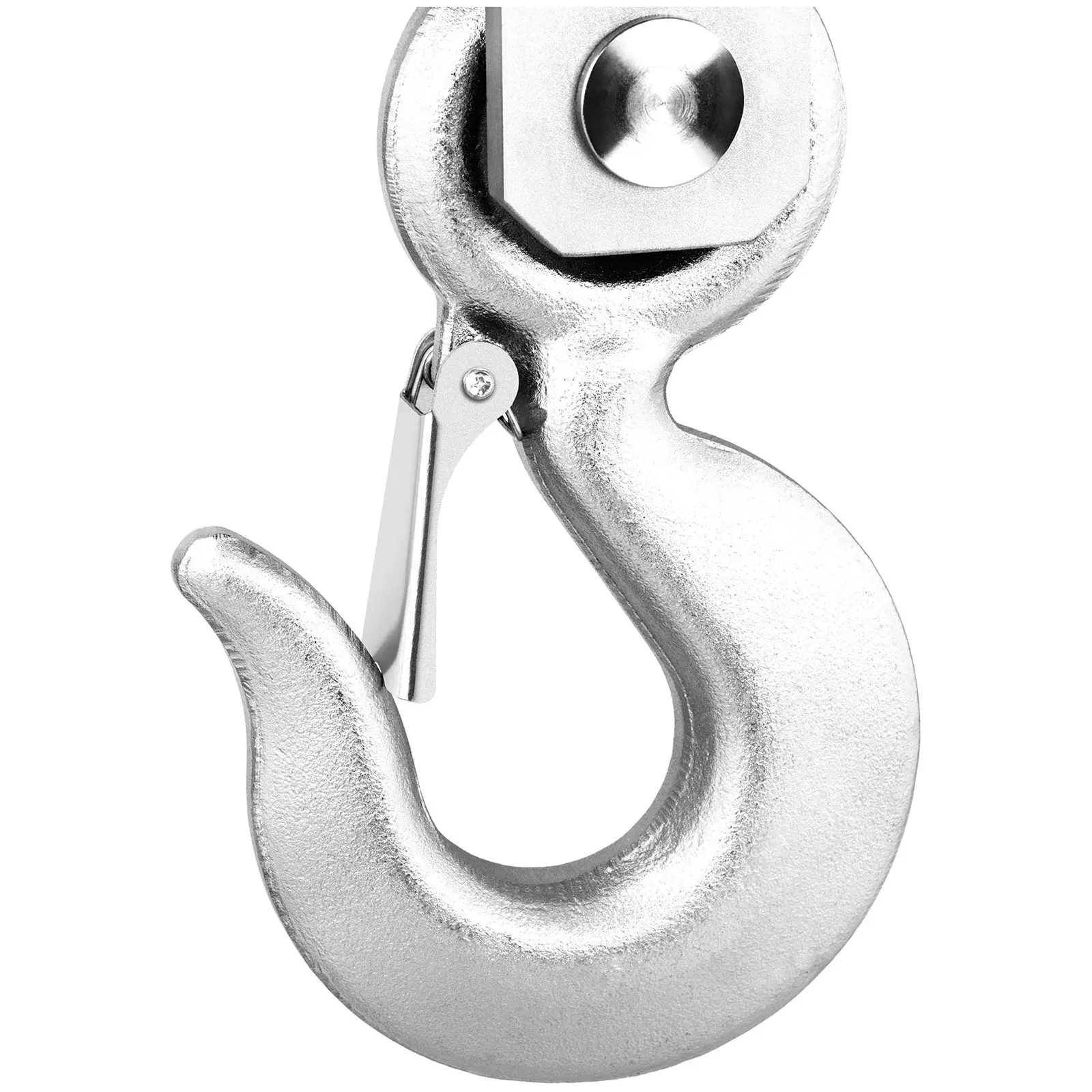

Robust design is primarily a die-cast aluminum housing. It protects electronic weight by Steinberg Systems from shocks, upholstery and other mechanical damage. Shackle and hook with security are made of galvanized steel. Precise assembly of components ensures device stability and readability.

Compact size (mass model SBS-KW-5 TW is 10 kg) positively affect not only mobile, but also stationary use hanging weights (in areas with small size of property). Thanks to this equipment must not be permanently posted to only one job and can serve as a portable weight.

Power balance is carried out as follows

  • Weight - battery 6V / 4,5Ah (24-hour working time)
  • Large remote control - 2 batteries 4.8 V / 3,2Ah + backup battery CR2032
  • Small remote control - 2 x batteries AAA
  • 2 x AC adapter - 110-240V AC input, DC 6V / 1000 mA output and 110-240 V AC input, DC 3.6-6 V / 1000 mA output

All components necessary to start and supply scales, are included in set

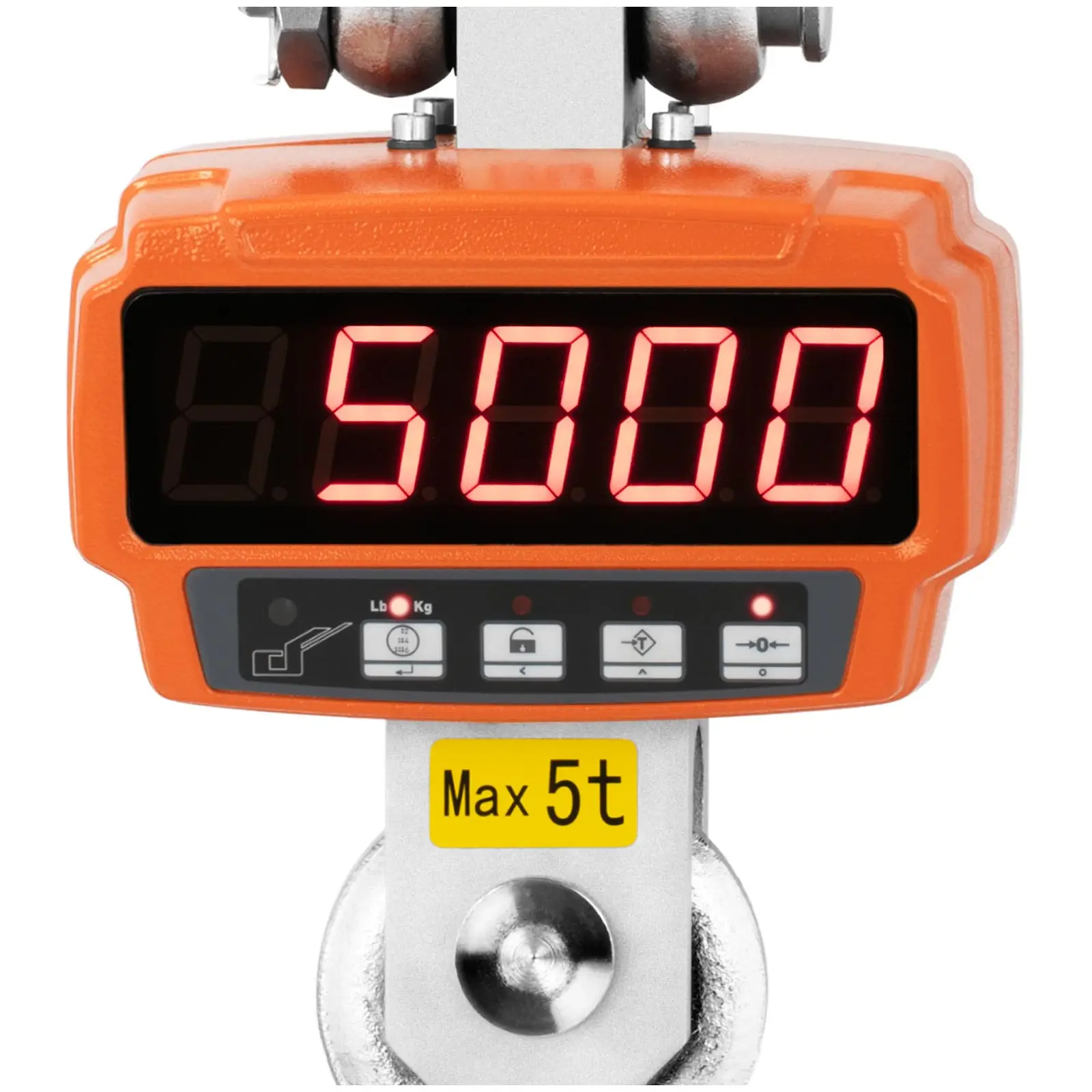

LED display (in weight) allows you to read measurement results also in adverse lighting conditions. Presented digits are large (3.5 cm) and clearly - clearly visible even from a distance.

Weight hung Steinberg Systems, an remote operation


Two remote controls, electronic scales provide comfortable handling equipment (also from a distance). Thanks to remote control weighing process can be carried out properly without approach the device. Larger one has a range of up to 200 m and less up to 15 m. Remote controls are well described and can quickly find themselves on extensive menu.

Large remote control well in hand. It has a built-in LCD that shows the current date and measurement results. Its clarity is adjusted to 15 levels. As a result, most important parameters can be read without going to weight. In remote to control weight of hook can be changed among other things:

  • parameters
  • date and time
  • save given values
  • view added value

Small remote control (batteries included) has four intuitive buttons that allow control over basic functions. Ergonomic remote control is used, among others, tare, reset and stop as a result.

Weight of hook SBS-KW-5 TW - weighing options

Practical feature greatly streamlines process for determining mass. Some of them positive effect on economic operation of equipment replace other operator in basic math assignments. Most important functions are:



  • Overload warning
  • Taring
  • sleep Mode
  • automatic shutdown
  • stopping result
  • reset
  • change weighing accuracy
  • change weighing units (kg lb lb)

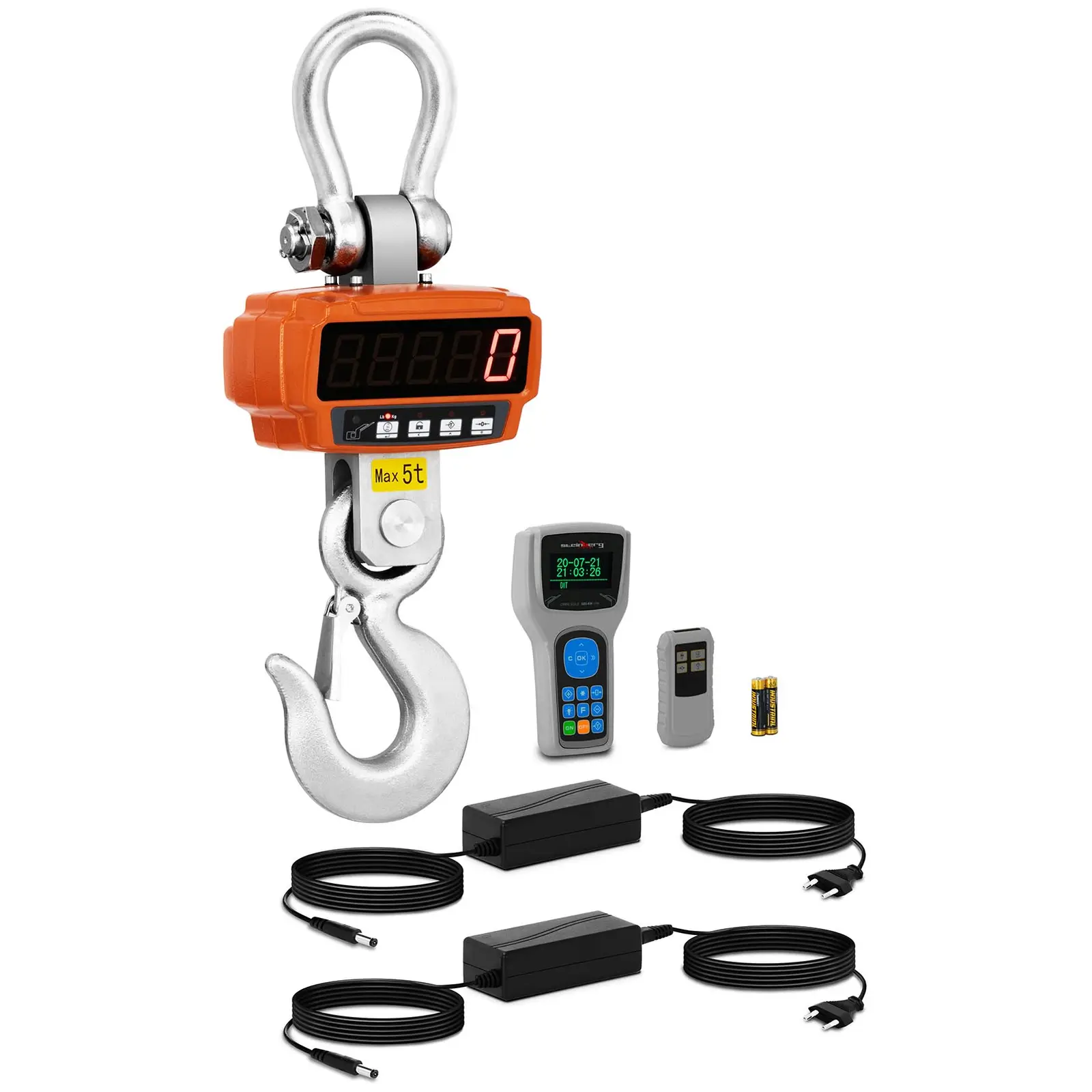

Set included:

  • crane scales
  • remote controls x2
  • accumulator 6 V/4,5 Ah
  • accumulator 4,8 V/3,2 Ah

  • battery provides power CR2032
  • battery AAA x2
  • Adapter AC 110-240 V input, DC 6 V/1000 mA output
  • Adapter AC 110-240 V input, DC 3.6-6 V/1000 mA output



article SBS-KW-5TW
catalog no. 3108
conditions new
maximum load 5000 kg
graduation
2 lub 1 kg (Optional)
overload 150 % load capacity
weighing units kg, lb
housing material die-cast aluminum
material hook and suspenders galvanized steel
scale display LED
display pilot LCD
Height of digits on LED display 30,5 mm
Operating temperature range from -10 to +40 °C
Made in accuracy class III
Functions Taring
Stopping result
Resetting
Adding weight of load
Level of security
IP21
Power weight Lead batteries for recharging
Supply large remote control
2 batteries
4,8 V / 3,2 Ah
Backup battery CR2032
AC Adapter 110 - 240 V input, DC 3.6 - 6 V / 1000 mA output
Supply small remote control 2 x battery AAA
Battery life > 150h
Dimensions (LxWxH) 59 x 19,8 x 28 cm
Weight 12 kg
Shipping dimensions (LxWxH) 49 x 31 x 16,5 cm
Shipping weight 13,6 kg



Functions large remote control

  • 1./3.Change parameter values
  • 2. Change values of date and time
  • 4. Exit from a submenu to menu above
  • 5. Confirmation of entered data
  • 6. Data save when you add
  • 7. Review of recorded data when you add
  • 8. Reset
  • 9. Deleting recorded data when you add
  • 10. Unassigned
  • 11. Adjust display backlight
  • 12. Enabling remote control
  • 13. Turning off remote control
  • 14. Taring

Functions small remote control

  • 1. Stopping
  • 2. Adding weight of load / Move to front through menu
  • 3. Reset
  • 4. Taring
