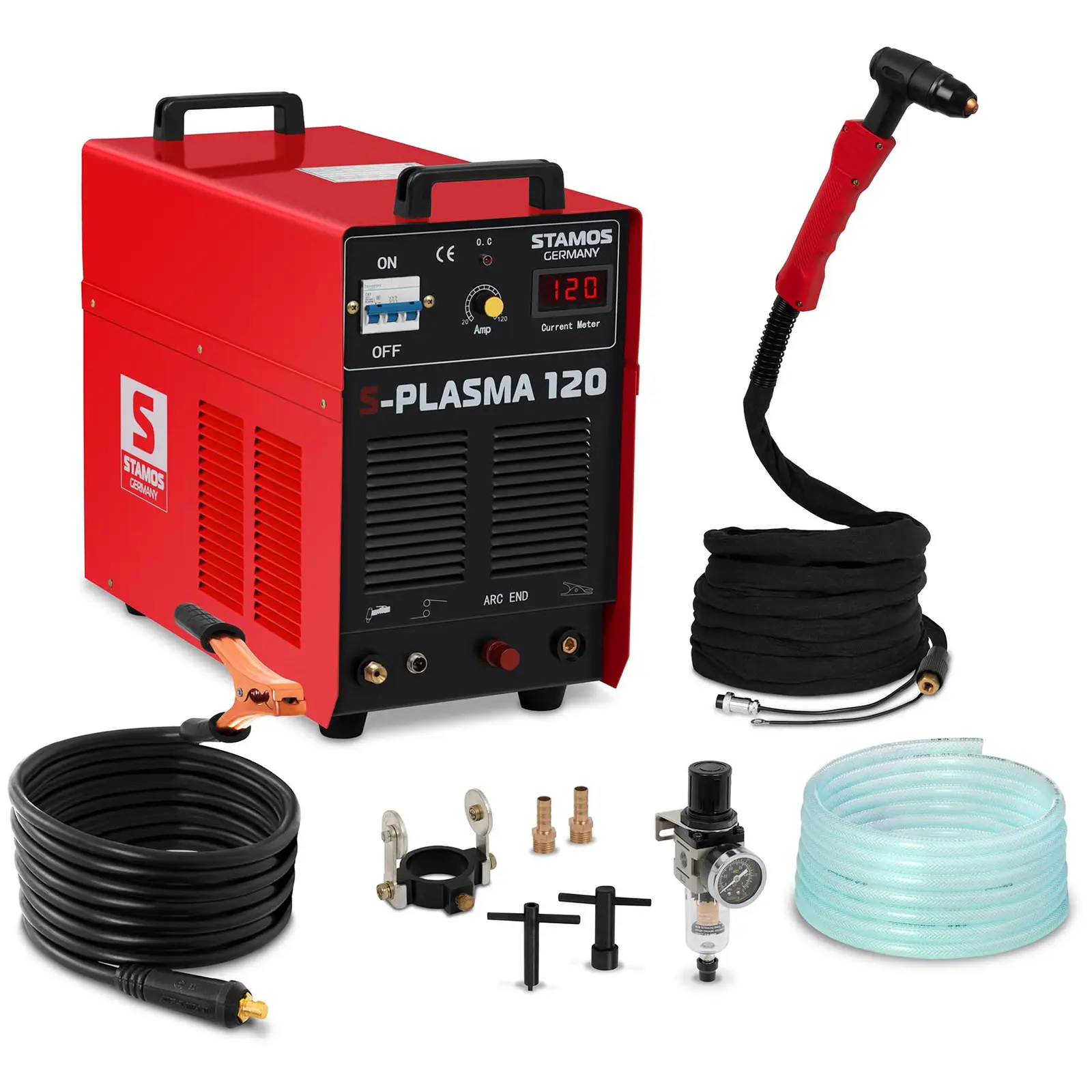

Stamos Germany Plasma Cutter S-PLASMA 120
Description
An S-PLASMA 120 is equipped with an ionizer, which enables contactless arc ignition. This improves cutting quality, lowers operating costs and delivers performance and comfort. Ideally suited to cutting steel, stainless steel and non-ferrous metals, including aluminum.
Cutting process is carried out using AC by generating a plasma torch electro air and directing it through nozzle toward material to be cut. Plasma cutting is recommended to use compressed air.
Stamos Germany is characterized by solid execution. Being aware of quality and durability of machines for plasma cutter Stamos Germany S-PLASMA 120 provide long-term guarantees.
Cutter is sold with complete equipment necessary for plasma cutting.

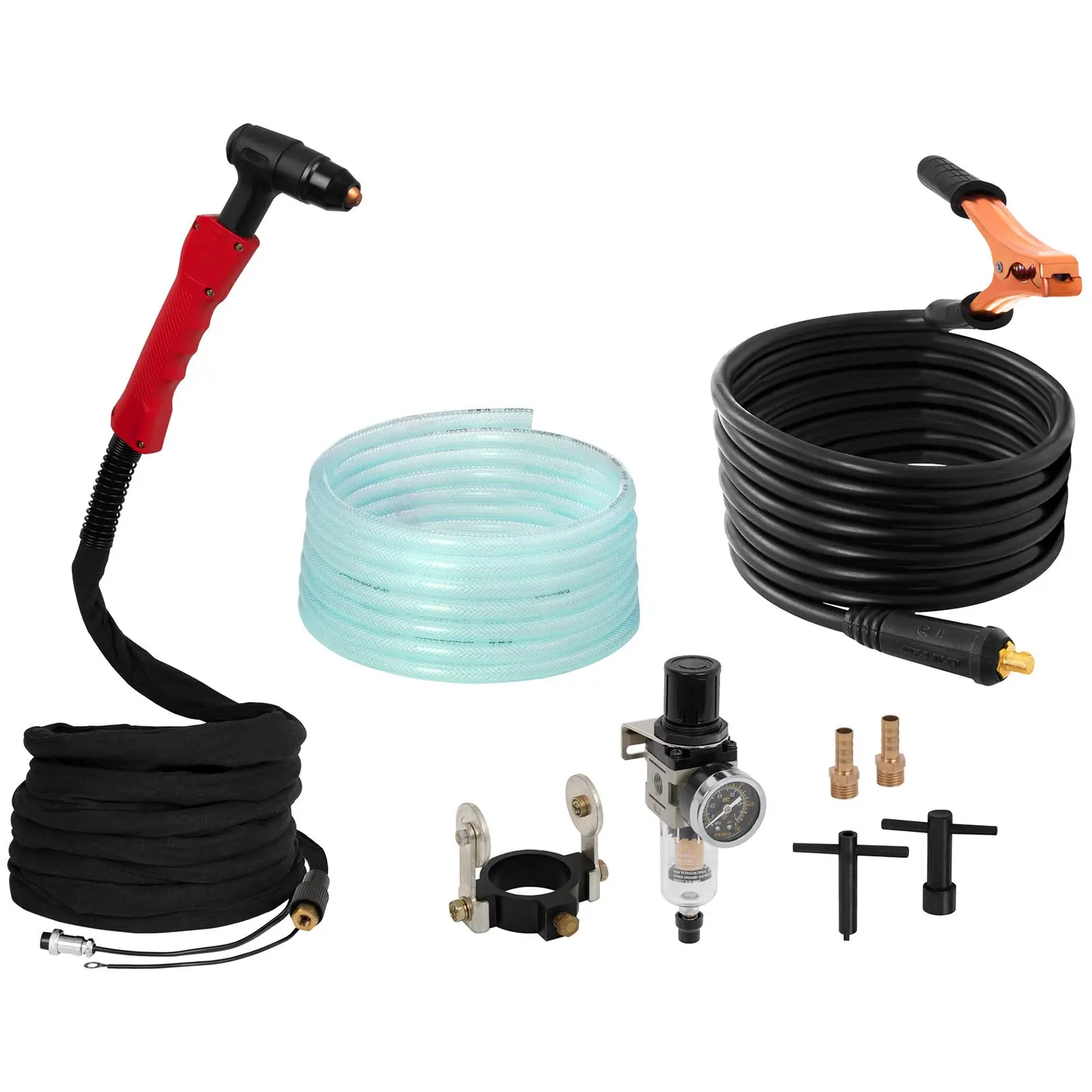

Included, along with plasma cutter Stamos Germany S-PLASMA 120 is:
- Handle for plasma cutting 4.2 m
- Cable a common terminal 4.3 m
- Trolley handle for easy carry out
-
parts exploitation
Model | S-Plasma 120 |
Condition | New |
Input voltage | 400 V, 3-Phases |
Frequency (Hz) | 50/60 |
Duty cycle | 60% |
Ampere at 100% duty cycle | 77 |
Ignition | High-frequency (HF) |
Welding strength | 0 mm - 35 mm |
Input current | 28 A |
Open circuit voltage | 240 V |
Degree of housing protection | IP21S |
Insulation class | H |
Overheating protection | Yes |
Cooling | Fan |
Magnetic valve | Yes |
Cutting current | 20 - 120 A |
Air overrun time | 10 sec. |
Cut width | 1.4 mm |
Compressor connection | 6 bar, 170l/min. |
Dimension (LxBxH) | 57,00 x 49,50 x 29,00 cm |
Weight | 38,20 kg |
Shipping dimension (LxBxH) | 68,00 x 53,00 x 40,00 cm |
Shipping weight | 42,50 kg |
MOSFETs - This technology provides the highest performance in a compact size and weight of device. The result is an efficiency of 93%. | |
CERTIFICATES - plasma cutter was made according to strict European standards and passed examination for compliance with CE and RoHS. | |
VENTILATORS - highly efficient fan for optimum draw heat away during operation. | |
EARTH - on back of each device is marked with ground screw. Before starting device must be grounded using a cable whose cross can not be smaller than 6 mm. | |
ON / OFF SWITCH | |
Plasma arc cutting - dense plasma arc melts metal and throws him out of the slot kinetic energy, which gives it a compressed air. With this method it is possible to achieve high cutting speeds while maintaining high quality. It is not required use of expensive protective gas is sufficient compressed air. | |
CURRENT - infinitely adjustable power. | |
OVERLOAD / FAILURE - light comes on in event of two situations: a) if machine has failed and can not be operated. b) if machine has exceeded standard cycle and has been running mode to protect it from overheating. In this mode, you should leave machine with power. If red light goes off, it means that device cool down t temperature of operation and can be re-used. |
|
CONNECTION OF GAS / AIR - connect machine to gas / compressed air and its flow is controlled by electrovalve activated by pressing on handle. | |
VOLTAGE - cutter is supplied with three-phase (400V +/- 10%). | |
POST TIME - time gas supply / compressed air after failure of an electric arc. Function is used to cool handle. | |
CONNECTION LEAD WEIGHT |
