Plasma Cutter Stamos Selection S-PLASMA 55H
Description
Plasma Cutter Stamos Selection S-PLASMA 55H
Current control optimizes cutting process and excellent quality and speed cuts. In this way it is possible to fit work cutting to prevailing conditions and different sizes of elements intersected.

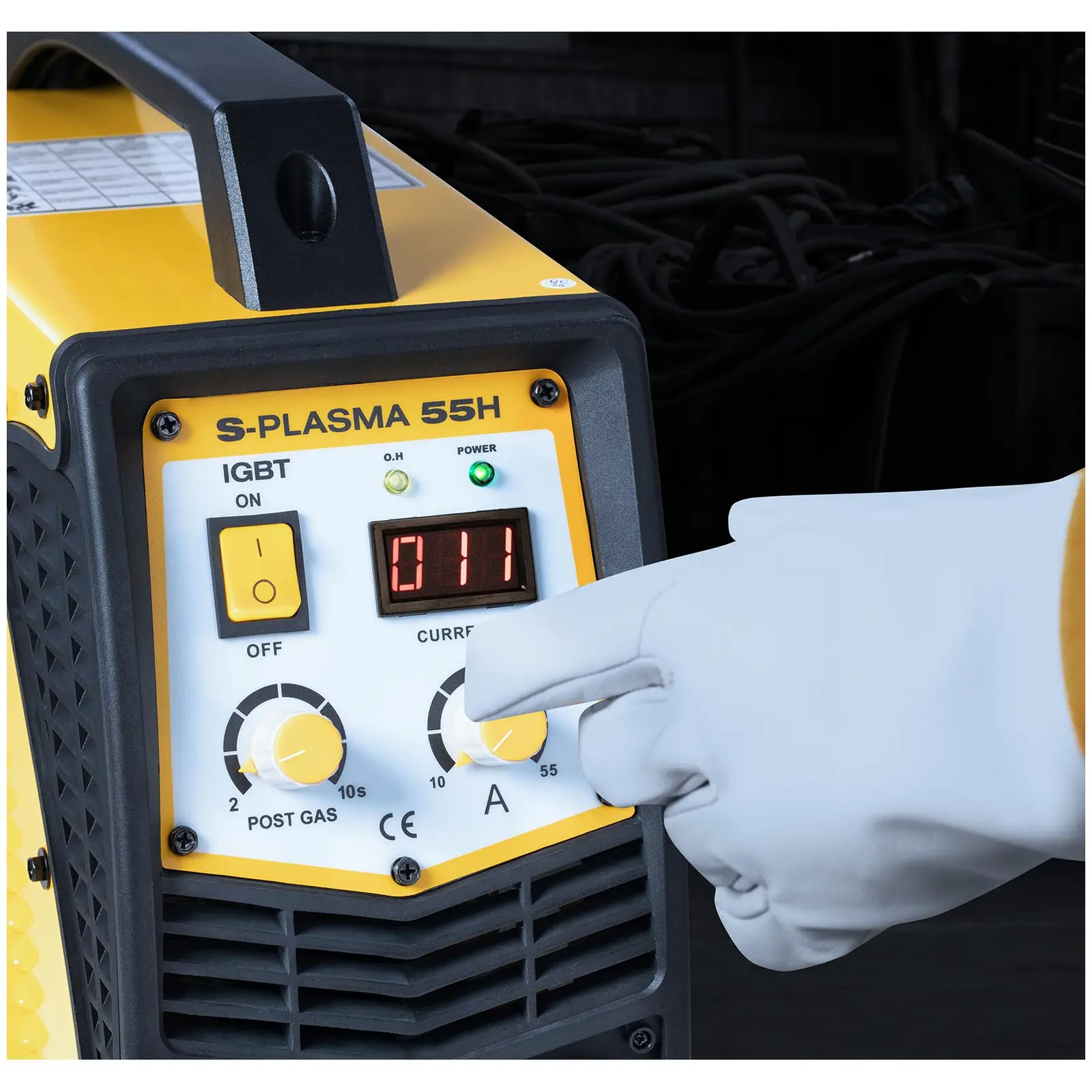

Plasma cutter is equipped with an intuitive control panel, whose biggest advantage is large buttons and knobs. It is a large simplification for users and eliminates need to pull gloves when cutting. For convenience of customers Stamos Selection plasma cutter also has a large, easy to read display. This simplifies operation and reading of values in every situation.

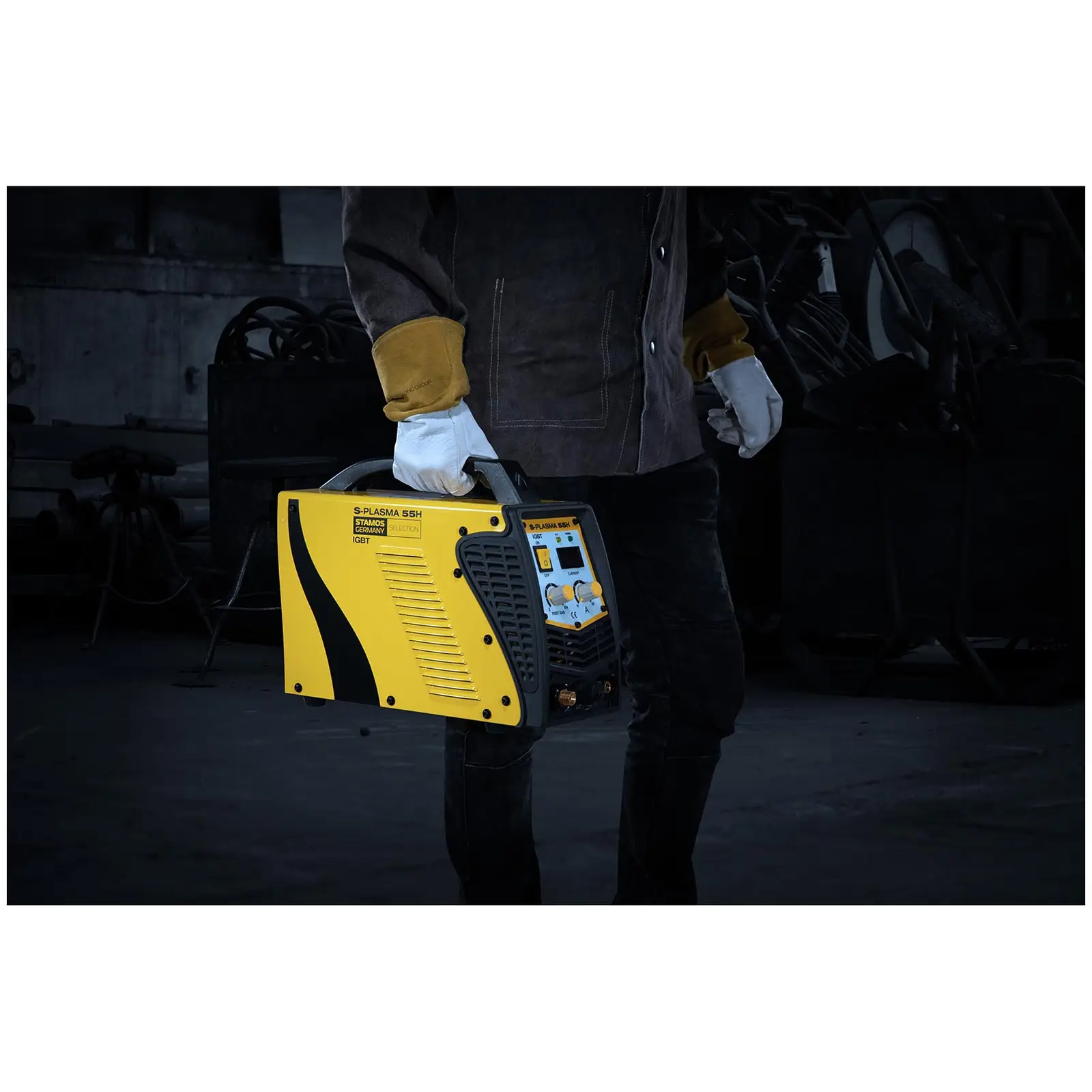

Use of special lightweight materials to build a cutting device provides light weight. Therefore, carrying and transport is not a problem. At same time plasma cutter PLASMA S-55H is characterized by a robust construction and high reliability, as evidenced by long-term warranty.

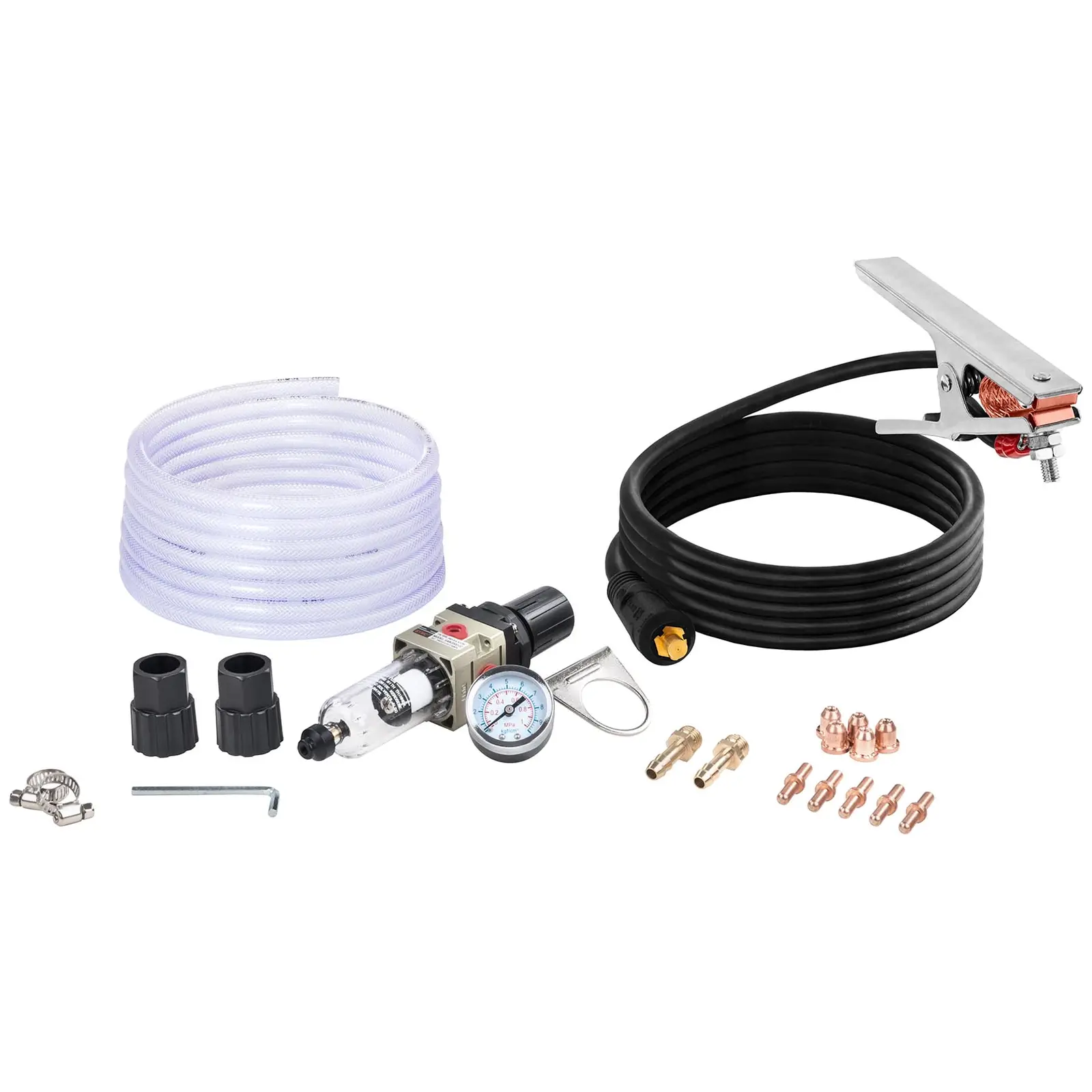

Offered unit is supplied with facilities for immediate operation. Includes of plasma cutters Stamos Selection S-PLASMA 55H is:

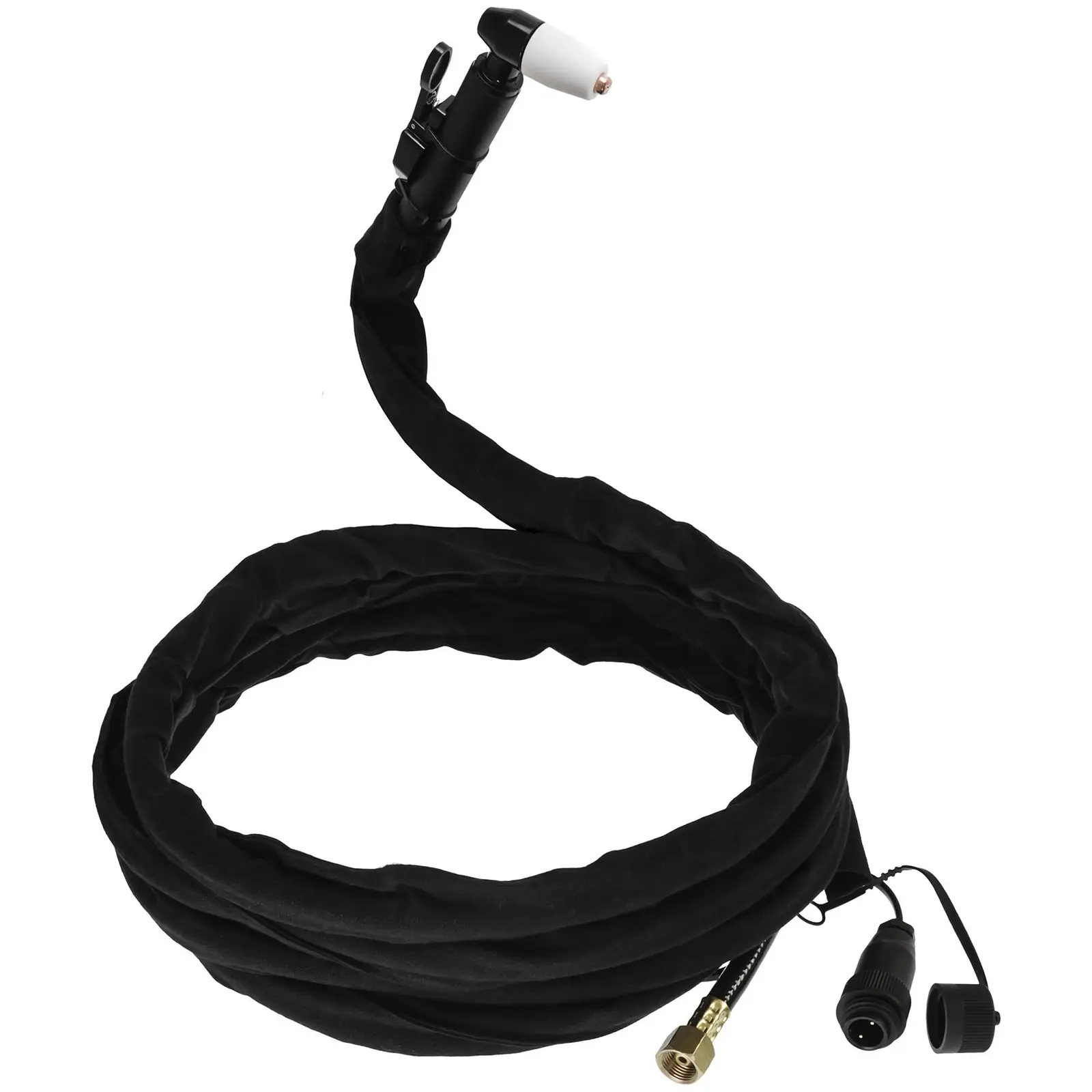

- Package cables 4 m
- Air line 4 m
- Cable mass 4m
- Cutting nozzles 2 Pieces.
- Electrodes 2 Pieces.
- 1 Pieces stopper.
- Ring a rotating to cutting 1 Pieces.
-
Pressure reducer with pressure gauge and steam trap
- Connection cable compressed air
- Instruction
-
Model S-Plasma 55H Condition New Input voltage 230V, 1-Phase Frequency (Hz) 50/60 Input current 16A Open circuit voltage 104V Degree of housing protection IP20S Insulation class F Overheating protection Yes Cooling Fan Magnetic valve Yes Turn-on duration ED at max. A 60% Cutting current 10-55A Ignition Contact Cutting depth 16mm Cutting width 1mm Compressor connection 4.5 bar,30-1001/min. Security Yes Dimension (LxBxH) 44,00 x 31,00 x 17,00 cm Weight 9,40 kg Shipping dimension (LxBxH) 53,00 x 38,00 x 38,00 cm Shipping weight 15,00 kg
IGBT = An insulated gate bipolar transistor is a semiconductor component that is used increasingly in power electronics. It combines the advantages of a bipolar transistor (good transmittance, high reverse voltage and ruggedness) with those of a field effect transistor (almost power-free control). Because the IGBT limits the load current, it is also less susceptible to shorting. IGBTs are an enhancement of vertical power MOSFETs. |
|
VENTILATORS - very powerful fans provide optimal draw heat away during operation cutter. | |
VOLTAGE - cutter is powered by a single-phase (230V +/- 10%). | |
Overload/failure LED following conditions will be indicated by this warning lamp: a) A machine failure has occurred and the machine is inoperable. b) The machine has exceeded its maximum load duration and has stopped working to enter the protection mode. This means that the machine is now idling in order to regain temperature control after overheating. During this procedure, the red warning lamp on the machine front housing is illuminated. There is no need to unplug the power cord from the socket thus allowing the fan to continue to run and accelerate the cooling down process of the machine. Once normal operating temperature has been reached the red light goes out, and the machine is ready for use. |
|
LED - digital display shows current current value cut | |
POST TIME - time flow of air after disappearance of plasma arc. This function assists cooling of the holder to cut. | |
CURRENT - adjustable cutting current | |
CONNECTION plasma torch | |
CONNECTION LEAD WEIGHT | |
EARTH - back of each cutter is screw marked with ground. Before starting device must be grounded device via cable, whose cross-section may not be less than 6 mm. | |
gas connection |
