Plasma Cutter Stamos Selection S-PLASMA 85CNC
Description
Plasma Cutter Stamos Selection S-PLASMA 85CNC
Plasma Cutter Stamos Selection S-PLASMA 85CNC is hardware used throughout welding industry from production to installation and finishing work.
Because of torch with a simple shape, device is designed mostly for CNC machines. However, cutter will also work in service manual Stamos Selection Our product has a slot through which you can connect module height adjustment. In this way, CNC controls the torch from the workpiece.
We use latest IGBT technology, which reduces power consumption of network and provides highest performance. In contrast, thermal overload protection ensures safety during processing of material.
With help of stepless adjustment of cutting can be precisely cut with thin sheet, and steel plates having a thickness of up to 27 mm. High power reserves provide a clean and precise cut. Device ideally suited to the machining of steel, stainless steel, aluminum and metal clad with varnished surface.
Plasma Cutting Device S-PLASMA 85CNC can be used in construction work, while creating steel structures and other places where equipment is exposed to various types of damage. Therefore, case has deliberately been made of powder-coated, durable sheet steel. Therefore product is protected against various mechanical defects.
CAUTION: Plasma Cutter Stamos Selection S-PLASMA 85CNC a machine torch in the shape of a simple, because it is possible to apply it in CNC machines. In addition, device will also work well in manual mode
Plasma Cutter Stamos Selection S-PLASMA 85CNC is sold and be sent with all necessary accessories. In addition to device you will also receive:

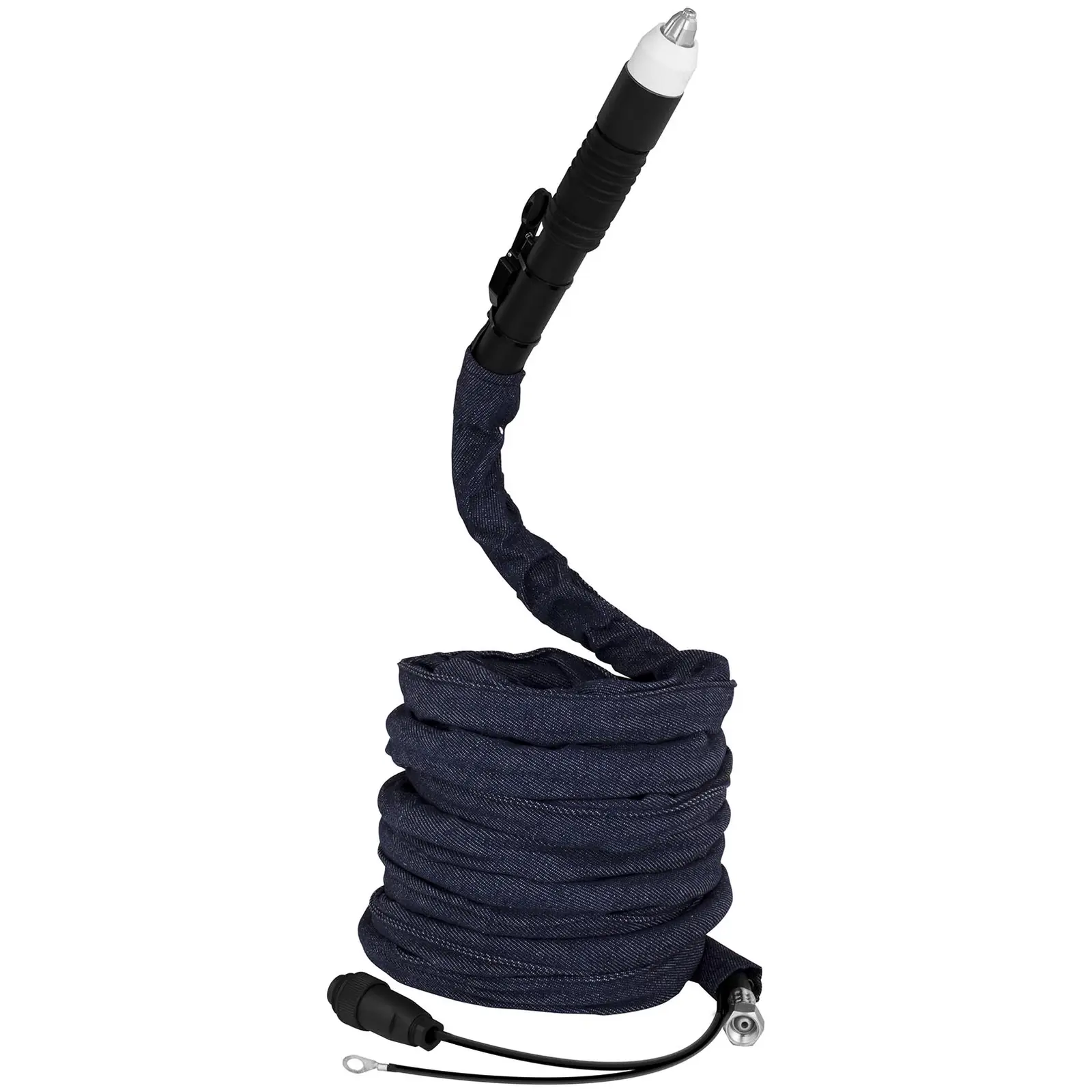

- Handle for plasma cutting 4m
- Air duct 4m
- Ground cable 4m
- Cutting nozzles 5 pieces
- Electrodes to device, plasma cutting 5 pieces
- Ceramic stopper to device, for plasma cutting 1 piece
- Pressure gauge and pressure regulator
- power cord
- instruction
- Unit is supplied without a plug of power!
Model | S-PLASMA 85CNC |
Condition | NEW |
Input voltage | 380 V, 3 phases |
Frequency | 50/60 Hz |
Input voltage | 19 A |
Open-circuit voltage | 123 V |
Degree of housing protection | IP21S |
Insulation class | H |
Overvoltage protection | Yes |
Cooling | Fan |
Magnetic valve | Yes |
Duty cycle at max. A | 60 % |
Cutting current | 20 - 85 A |
Ignition | Non - Contact |
Cutting depth | up to 27 mm (dependent on material) |
Cutting width | 1,2 mm |
Compressor connection | 5,5 bar, 175l/min. |
Over current fuse | Yes |
Dimension | 56,00 x 22,00 x 37,00 cm |
Weight | 20,10 kg |
Shipping dimension | 65,50 x 37,50 x 45,00 cm |
Shipping weight |
26,50 kg |
|
|
